20381 - Toro Super Recycler Walk-Behind Mower (SN: 312000001 - 312999999) (2012) HANDLE ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

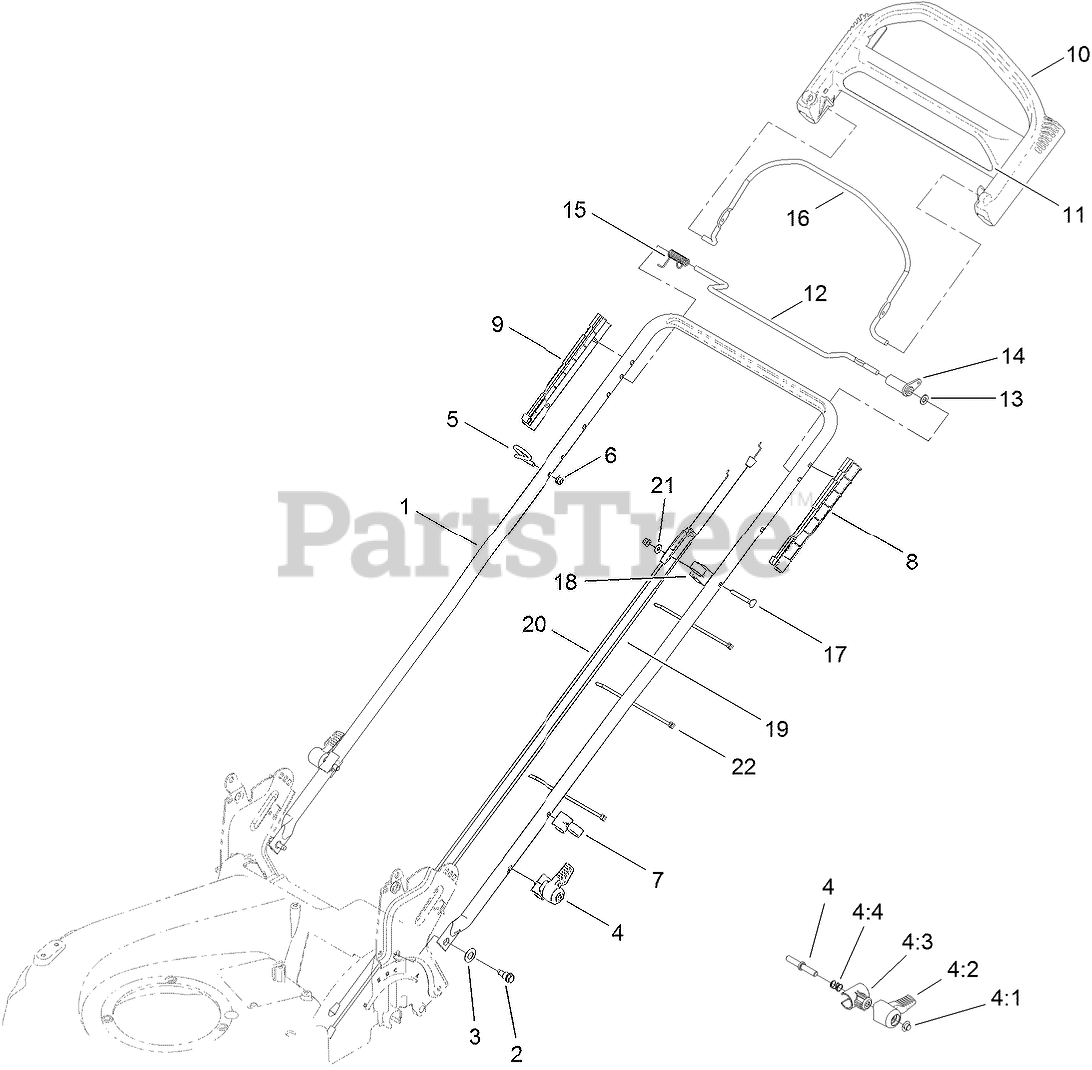

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 115-1300-05

HANDLE
(Superseded to 121-9167-05)

$98.99

$

Usually ships in 3-6 days

0

2

Toro 115-1958

BOLT-SHOULDER

$8.49

$

In Stock, only 1 left!

0

3

Toro 112-9972

WASHER-SPRING, CONICAL

$7.99

$

In Stock, only 2 left!

0

4

Toro 115-2860

QUICK RELEASE ASM
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

4:1

Toro 109-0917

NUT-PUSH
(Superseded to 32112-11)

$1.49

$

In Stock, only 4 left!

0

4:2

Toro 114-7995

LEVER
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

4:3

Toro 114-7996

ANCHOR-SPRING
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

4:4

Toro 115-2858

SPRING-COMPRESSION

$3.49

$

In Stock, only 2 left!

0

5

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

6

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

7

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 7

0

8

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 3 left!

0

9

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, only 2 left!

0

10

Toro 104-8678

HANDLE-CONTROL

$83.99

$

In Stock, only 1 left!

0

11

Toro 117-1019

DECAL

$9.99

$

In Stock, only 1 left!

0

12

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$17.99

$

In Stock, only 1 left!

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 99-1589

LEVER-TRACTION

$7.99

$

In Stock, Qty 15

0

15

Toro 104-8690

Spring-Torsion
(Superseded to 136-7166)

$3.49

$

In Stock, Qty 8

0

16

Toro 104-8679-03

Bail-Brake
(Superseded to 131-0880-03)

$25.99

$

In Stock, only 2 left!

0

17

Toro 95-4453

SCREW

$3.49

$

In Stock, only 1 left!

0

18

Toro 99-5239

ANCHOR-CABLE
(Superseded to 136-5864)

$2.99

$

In Stock, Qty 7

0

19

Toro 108-8158

CABLE-TRACTION

$44.99

$

In Stock, only 2 left!

0

20

Toro 117-5900

CABLE-BRAKE

$42.99

$

In Stock, only 2 left!

0

21

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
