20380 - Toro Super Recycler Walk-Behind Mower (SN: 313000001 - 313999999) (2013) TRANSMISSION AND REAR WHEEL ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

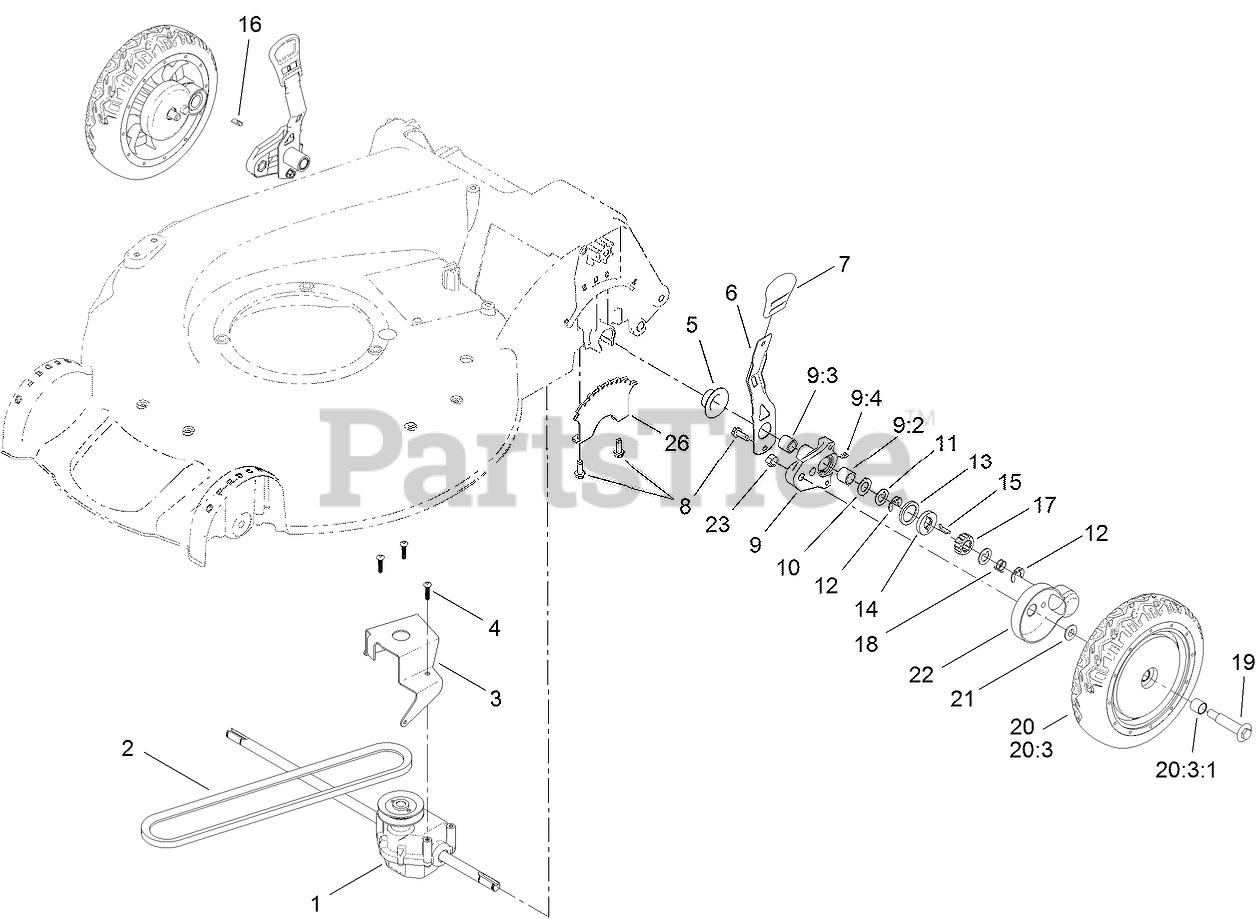

TRANSMISSION AND REAR WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 121-2331

TRANSMISSION ASM

$139.99

$

Usually ships in 3-6 days

0

2

Toro 92-1043

V-BELT

$18.99

$

In Stock, Qty 20+

0

3

Toro 114-7977-03

BRACKET-TRANSMISSION

$13.99

$

In Stock, only 1 left!

0

4

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 20+

0

5

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.99

$

In Stock, Qty 20+

0

6

Toro 107-7491

ARM-SPRING

$12.99

$

In Stock, Qty 9

0

7

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

8

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

9

Toro 100-8774

PIVOT ARM ASM

$38.99

$

In Stock, Qty 9

0

9:2

Toro 47-2900

BUSHING

$6.49

$

In Stock, Qty 20+

0

9:3

Toro 70-9760

BUSHING

$4.99

$

In Stock, Qty 20+

0

9:4

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!

0

10

Toro 65-4730

WASHER-ARM, PIVOT

$2.49

$

In Stock, Qty 20+

0

11

Toro 65-4740

WASHER-THRUST, KEYED

$2.49

$

In Stock, Qty 20+

0

12

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 20+

0

13

Toro 65-4710

RING-FRICTION

$3.49

$

In Stock, Qty 20+

0

14

Toro 65-4760

WASHER-CLUTCH

$1.49

$

In Stock, Qty 20+

0

15

Toro 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 20+

0

16

Toro 66-6040

KEY-ROCKING, RH
(Superseded to 139-6643)

$7.49

$

In Stock, Qty 20+

0

17

Toro 65-4750

GEAR-PINION

$11.99

$

In Stock, Qty 20+

0

18

Toro 65-4720

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

19

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 20+

0

20

Toro 107-3709

WHEEL GEAR ASM

$51.99

$

In Stock, Qty 20+

0

20:3

WHEEL ASM

Note: Not serviced separately

$

$

Not available

20:3:1

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 3 left!

0

21

Toro 74-1671

SPACER-COVER, WHEEL

$1.99

$

In Stock, Qty 20+

0

22

Toro 74-1660

COVER-WHEEL

$8.49

$

In Stock, Qty 14

0

23

$2.99

$

In Stock, Qty 20+

0

26

Toro 107-7478

PLATE-HOC

$

$

Not available
