20380 - Toro Super Recycler Walk-Behind Mower (SN: 313000001 - 313999999) (2013) HANDLE ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

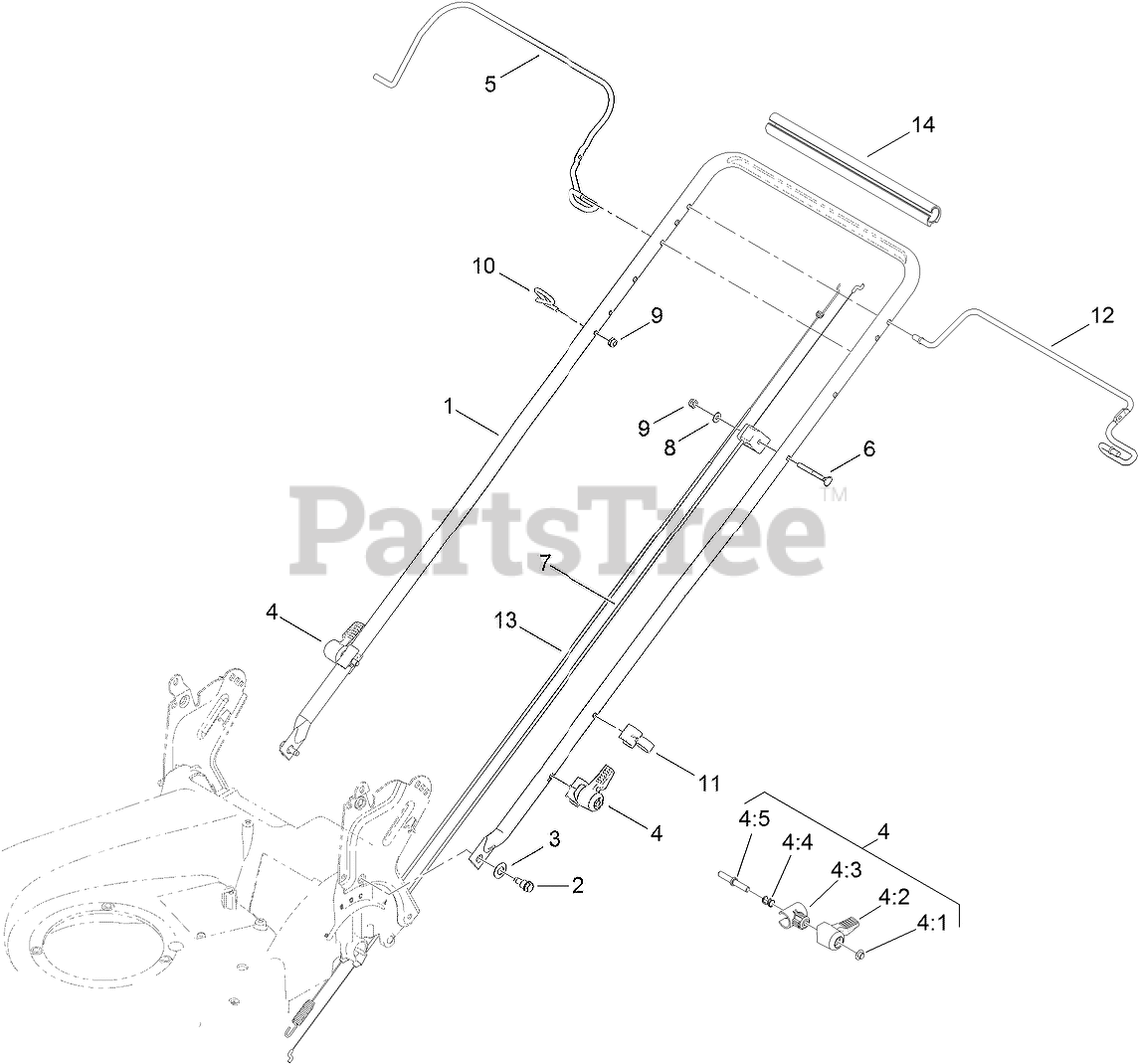

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 121-9167-05

Handle

$98.99

$

Usually ships in 3-6 days

0

2

Toro 115-1958

BOLT-SHOULDER

$8.49

$

In Stock, only 2 left!

0

3

Toro 112-9972

WASHER-SPRING, CONICAL

$7.99

$

In Stock, only 2 left!

0

4

Toro 115-2860

QUICK RELEASE ASM
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

4:1

Toro 109-0917

NUT-PUSH
(Superseded to 32112-11)

$1.49

$

In Stock, only 3 left!

0

4:2

Toro 114-7995

LEVER
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

4:3

Toro 114-7996

ANCHOR-SPRING
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

4:4

Toro 115-2858

SPRING-COMPRESSION

$3.49

$

In Stock, only 2 left!

0

4:5

Toro 114-2675

ROD-RELEASE
(Superseded to 138-3243)

$2.49

$

Usually ships in 3-6 days

0

5

Toro 117-5965-03

BAIL-BRAKE

$42.99

$

In Stock, only 2 left!

0

6

Toro 92-2270

SCREW-HANDLE

$8.49

$

In Stock, only 2 left!

0

7

Toro 117-5919

CABLE-BRAKE

$42.99

$

Usually ships in 3-6 days

0

8

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

10

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

11

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 7

0

12

Toro 119-2378-03

BAIL-TRACTION

$32.99

$

In Stock, only 1 left!

0

13

Toro 121-2393

CABLE-TRACTION

$40.99

$

Usually ships in 3-6 days

0

14

Toro 119-2357

GRIP-HANDLE, COMFORT

$

$

Not available
