20378 - Toro 22" Recycler Walk-Behind Mower (SN: 402082000 - 403499999) Handle Assembly Parts Diagram

22" Recycler Walk-Behind Mower

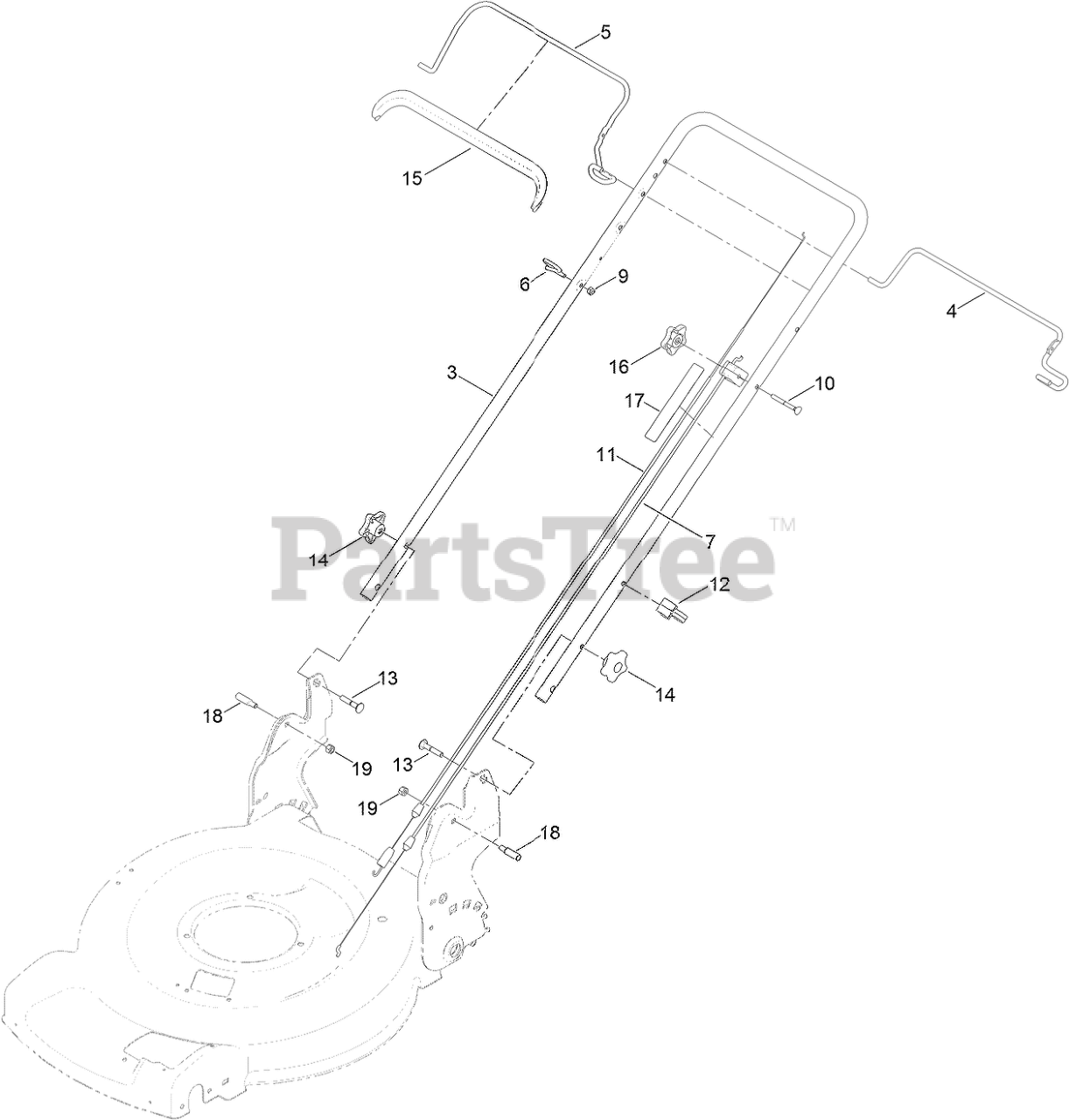

Handle Assembly Parts Diagram

  • Title
3

$49.99

$

In Stock, only 1 left!

0

4

Toro 131-0835-03

BAIL-TRACTION

$15.99

$

In Stock, only 3 left!

0

5

Toro 131-0821-03

BAIL-BRAKE
(Superseded to 138-3269-03)

$14.99

$

In Stock, only 2 left!

0

6

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

7

Toro 133-8109

CABLE-BRAKE, HP

$28.99

$

In Stock, only 3 left!

0

9

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

10

Toro 92-2270

SCREW-HANDLE

$8.49

$

In Stock, only 2 left!

0

11

Toro 119-2379

CABLE-TRACTION

$35.99

$

In Stock, Qty 8

0

12

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 7

0

13

Toro 131-9663

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

14

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 15

0

15

Toro 127-6847

COVER-BAIL

$4.49

$

In Stock, Qty 6

0

16

Toro 131-0897

KNOB-HANDLE, LOCKING

$4.49

$

In Stock, Qty 6

0

17

Toro 132-4470

DECAL-TRACTION, ADJUST

$2.49

$

In Stock, only 1 left!

0

18

Toro 131-4591

BOLT-SHOULDER

$1.99

$

In Stock, Qty 8

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
