20378 - Toro 22" Recycler Walk-Behind Mower (SN: 314200001 - 314999999) (2014) ENGINE AND BLADE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

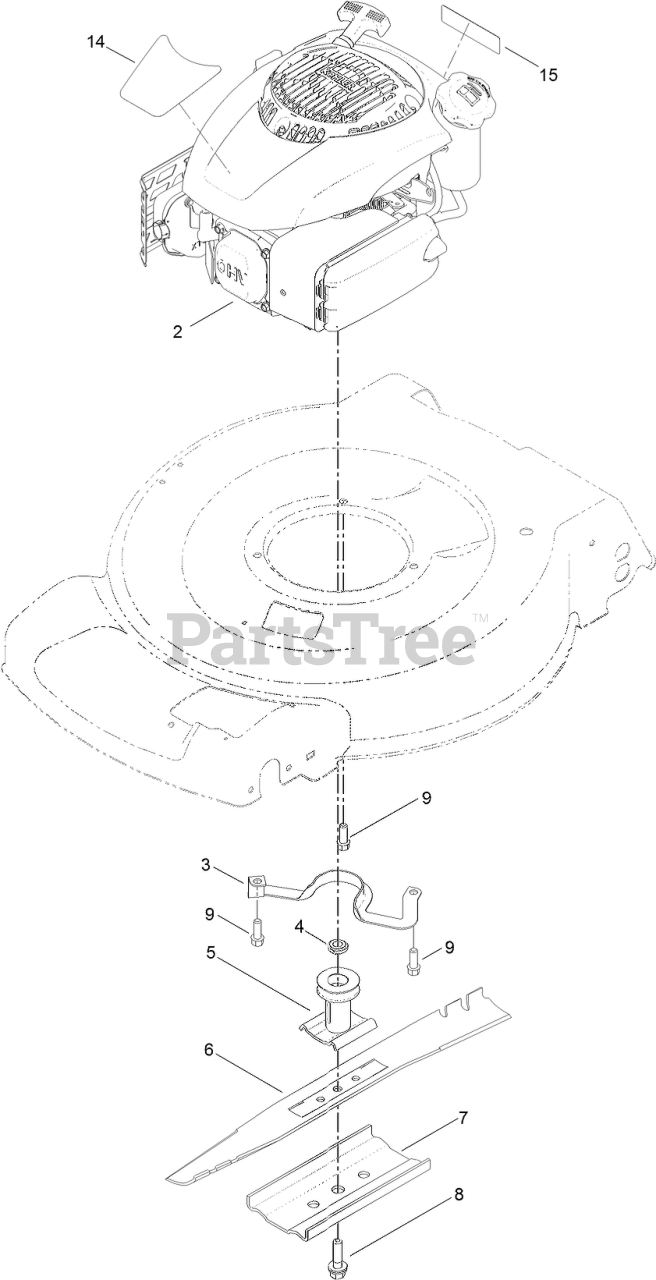

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title
2

ENGINE-KOHLER XT675-3071

Note: Not serviced separately

$

$

Not available

2

ENGINE-KOHLER XT675-3071

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

3

Toro 105-3031-03

Guide-Belt

$13.99

$

In Stock, only 1 left!

0

4

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

5

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

6

Toro 108-9764-03

BLADE-22 INCH
(Superseded to 131-4547-03)

$22.99

$

In Stock, only 4 left!

0

7

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

8

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

9

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

14

Toro 130-2361

DECAL-SHROUD

$66.99

$

Usually ships in 3-6 days

0

15

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0
