20377 - Toro 22" Recycler Walk-Behind Mower (SN: 403610000 - 404319999) Engine and Blade Assembly Parts Diagram

22" Recycler Walk-Behind Mower

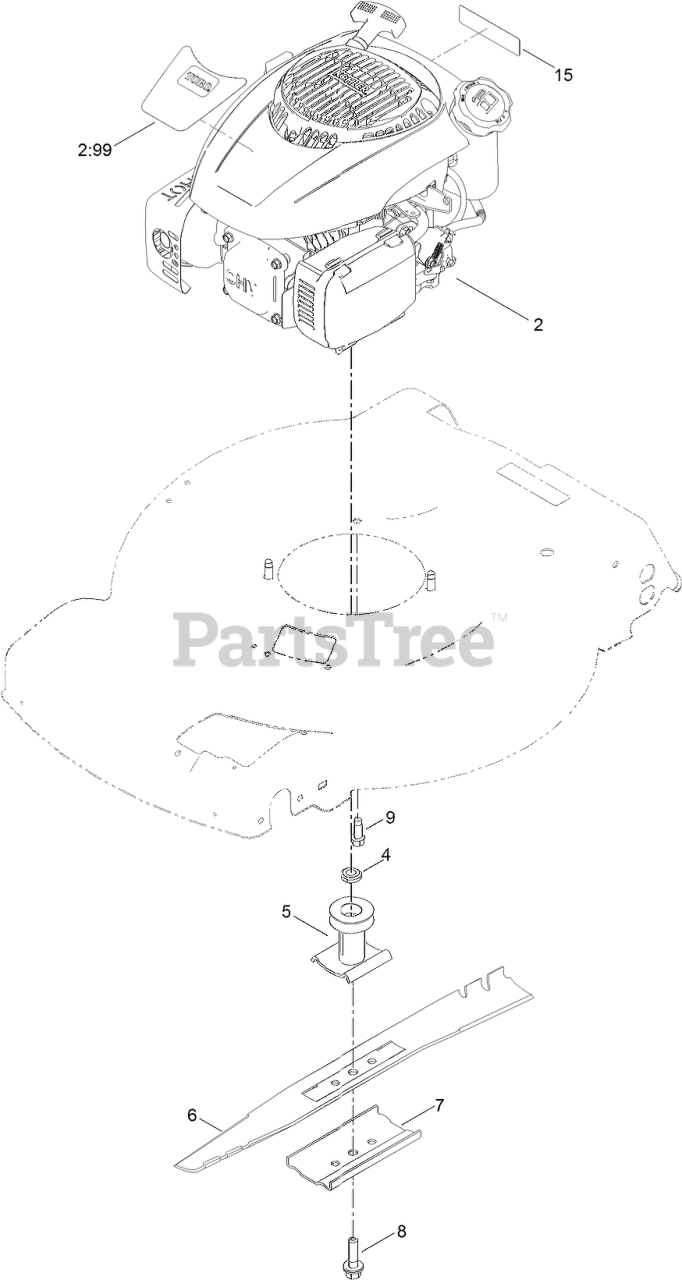

Engine and Blade Assembly Parts Diagram

  • Title
2

ENGINE-KOHLER XTX675-3013

Note: Not serviced separately

$

$

Not available

2

ENGINE-KOHLER XTX675-3013

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2:99

Toro 133-8192

DECAL-SHROUD

$15.99

$

Usually ships in 3-6 days

0

4

Toro 106-3999

SPACER-DRIVER

$3.49

$

In Stock, only 4 left!

0

5

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

6

Toro 131-4547-03

BLADE-22 INCH

$22.99

$

In Stock, Qty 5

0

7

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

8

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

9

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

15

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0
