20374 - Toro 22" Recycler Walk-Behind Mower (SN: 405666485 - 999999999) Fuel System Assembly Parts Diagram

22" Recycler Walk-Behind Mower

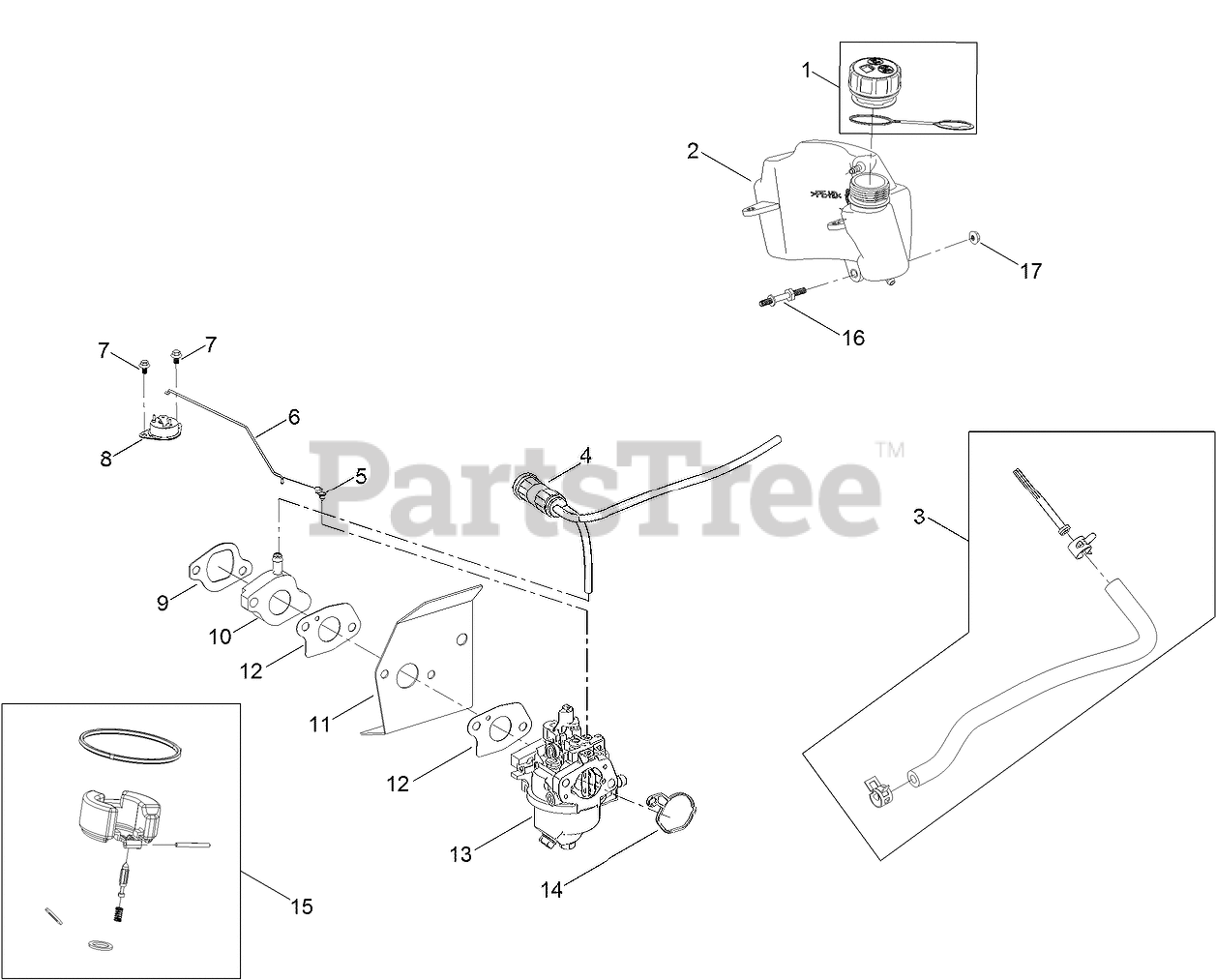

Fuel System Assembly Parts Diagram

  • Title

1

Toro 136-7875

CAP-FUEL, SEALED

$17.99

$

Usually ships in 3-6 days

0

2

Toro 139-0718

TANK-FUEL

$62.99

$

Usually ships in 3-6 days

0

3

Toro 121-4167

FUEL LINE KIT

$29.99

$

Usually ships in 3-6 days

0

4

Toro 133-9874

CANISTER-CARBON, 19 CC

$42.99

$

In Stock, only 2 left!

0

5

Toro 120-4451

LOCK-THROTTLE

$2.49

$

In Stock, Qty 15

0

6

Toro 133-9909

LINKAGE-CHOKE, THERMAL

$0.99

$

Usually ships in 3-6 days

0

7

Toro 133-9908

SCREW-HWHTF

$0.99

$

Usually ships in 3-6 days

0

8

Toro 133-9907

CONTROL-THERMAL

$28.99

$

Usually ships in 3-6 days

0

9

Toro 121-4183

GASKET-INTAKE

$1.99

$

Usually ships in 3-6 days

0

10

Toro 133-9902

SPACER-CARBURETOR

$3.99

$

Usually ships in 3-6 days

0

11

Toro 133-9901

INSULATOR-CARBURETOR

$4.49

$

In Stock, only 1 left!

0

12

Toro 121-4184

GASKET-CARBURETOR

$1.99

$

In Stock, Qty 12

0

13

Toro 133-9900

CARBURETOR

$92.99

$

In Stock, only 1 left!

0

14

Toro 133-9899

GASKET-CARBURETOR

$3.49

$

In Stock, only 1 left!

0

15

Toro 127-9395

INTERNAL CARB SERVICE KIT

$23.99

$

Usually ships in 3-6 days

0

16

Toro 121-0016

BOLT-STUD

$2.49

$

Usually ships in 3-6 days

0

17

Toro 120-4236

NUT-FLANGE

$1.49

$

In Stock, Qty 20+

0

99

Toro 133-9943

HIGH ALTITUDE KIT

Note: Not illustrated

$13.99

$

Usually ships in 3-6 days

0
