20374 - Toro 22" Recycler Walk-Behind Mower (SN: 400000000 - 402089999) ENGINE AND BLADE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

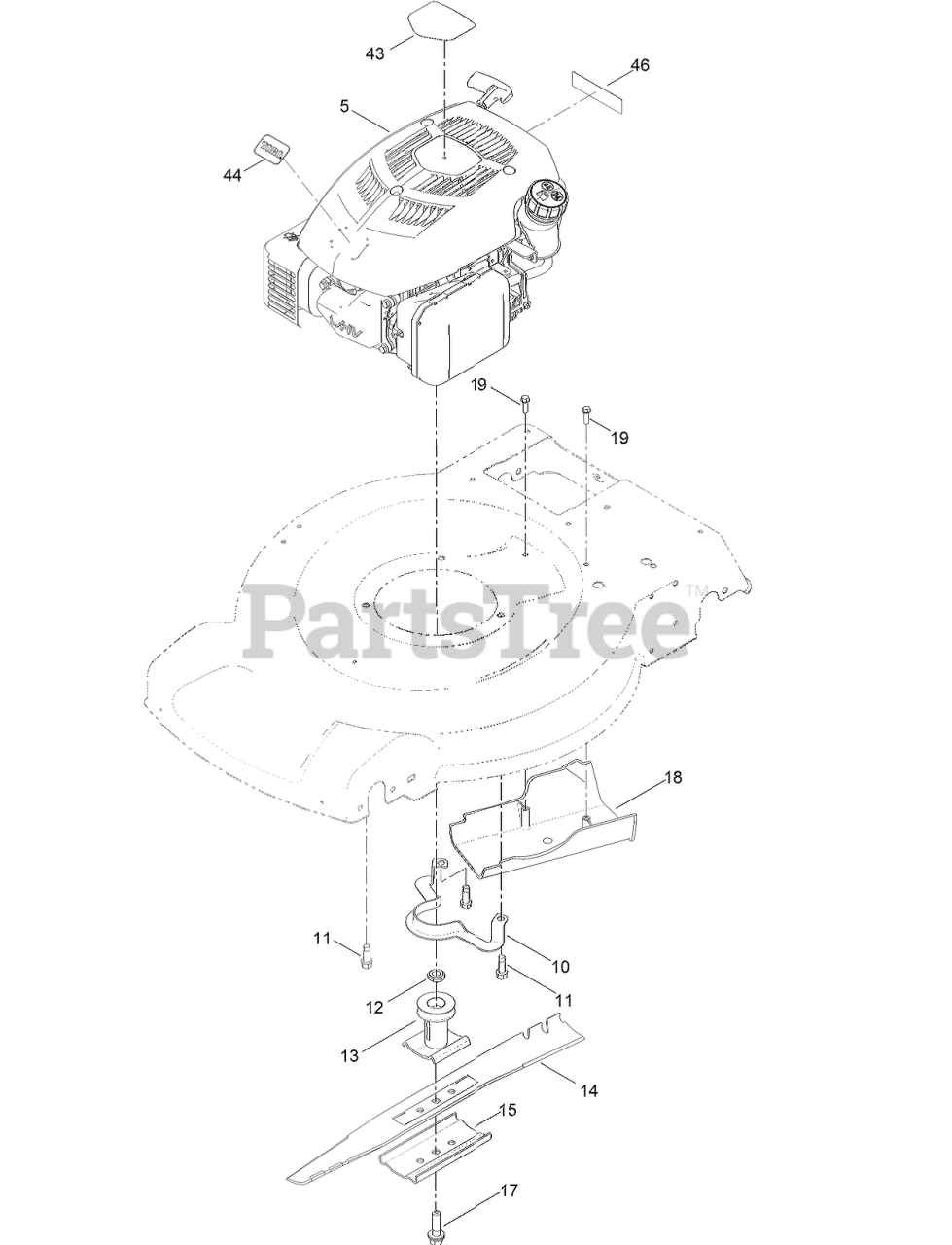

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title
5

Toro 127-9086

ENGINE-1P65F-2

$543.99

$

Usually ships in 3-6 days

0

10

Toro 105-3030-03

Guide-Belt

$14.99

$

In Stock, only 1 left!

0

11

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

12

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

13

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

14

Toro 131-4547-03

BLADE-22 INCH

$22.99

$

In Stock, only 4 left!

0

15

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

17

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

18

Toro 114-7937

COVER-BELT

$19.99

$

In Stock, only 2 left!

0

19

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

43

Toro 133-8185

DECAL-SHROUD

$3.99

$

Usually ships in 3-6 days

0

44

$2.49

$

Usually ships in 3-6 days

0

46

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0
