20374 - Toro 22" Recycler Walk-Behind Mower (SN: 313000001 - 313999999) (2013) ENGINE AND BLADE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

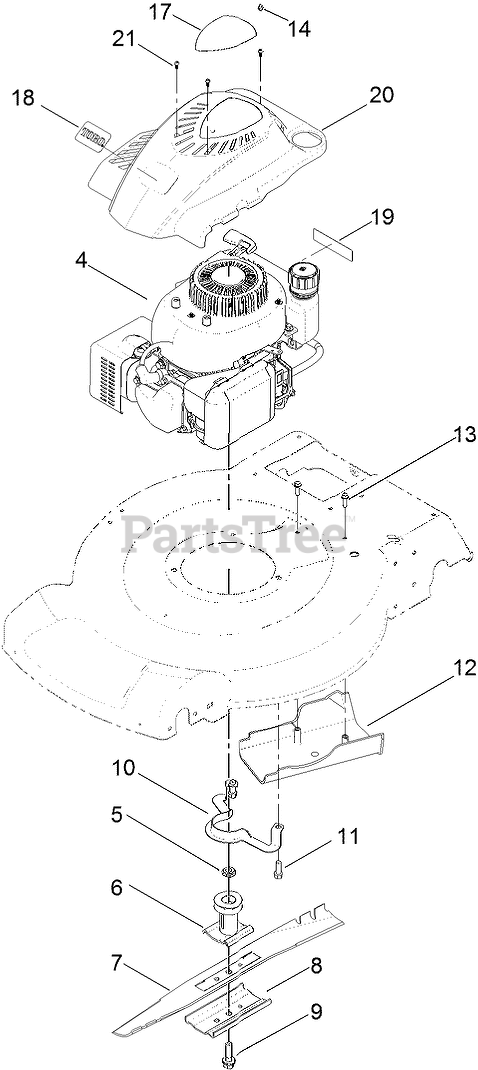

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

4

Toro 120-4413

ENGINE-1P65FC
(Superseded to 139-0609)

$631.99

$

Usually ships in 3-6 days

0

5

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

6

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

7

Toro 108-9764-03

BLADE-22 INCH
(Superseded to 131-4547-03)

$22.99

$

In Stock, Qty 20+

0

8

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 9

0

9

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

10

Toro 105-3030-03

Guide-Belt

$14.99

$

In Stock, only 1 left!

0

11

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

12

Toro 114-7937

COVER-BELT

$19.99

$

In Stock, only 2 left!

0

13

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

14

Toro 92-1701

STOP-ROPE
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

17

Toro 125-5036

DECAL-SHROUD

$5.99

$

Usually ships in 3-6 days

0

18

Toro 125-2505

DECAL

$2.49

$

Usually ships in 3-6 days

0

19

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

20

Toro 121-0443

SHROUD

$25.99

$

Usually ships in 3-6 days

0

21

Toro 121-4155

SCREW-PPH

$0.99

$

In Stock, Qty 15

0
