20374 - Toro 22" Recycler Walk-Behind Mower (SN: 312000001 - 312999999) (2012) ELECTRICAL ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

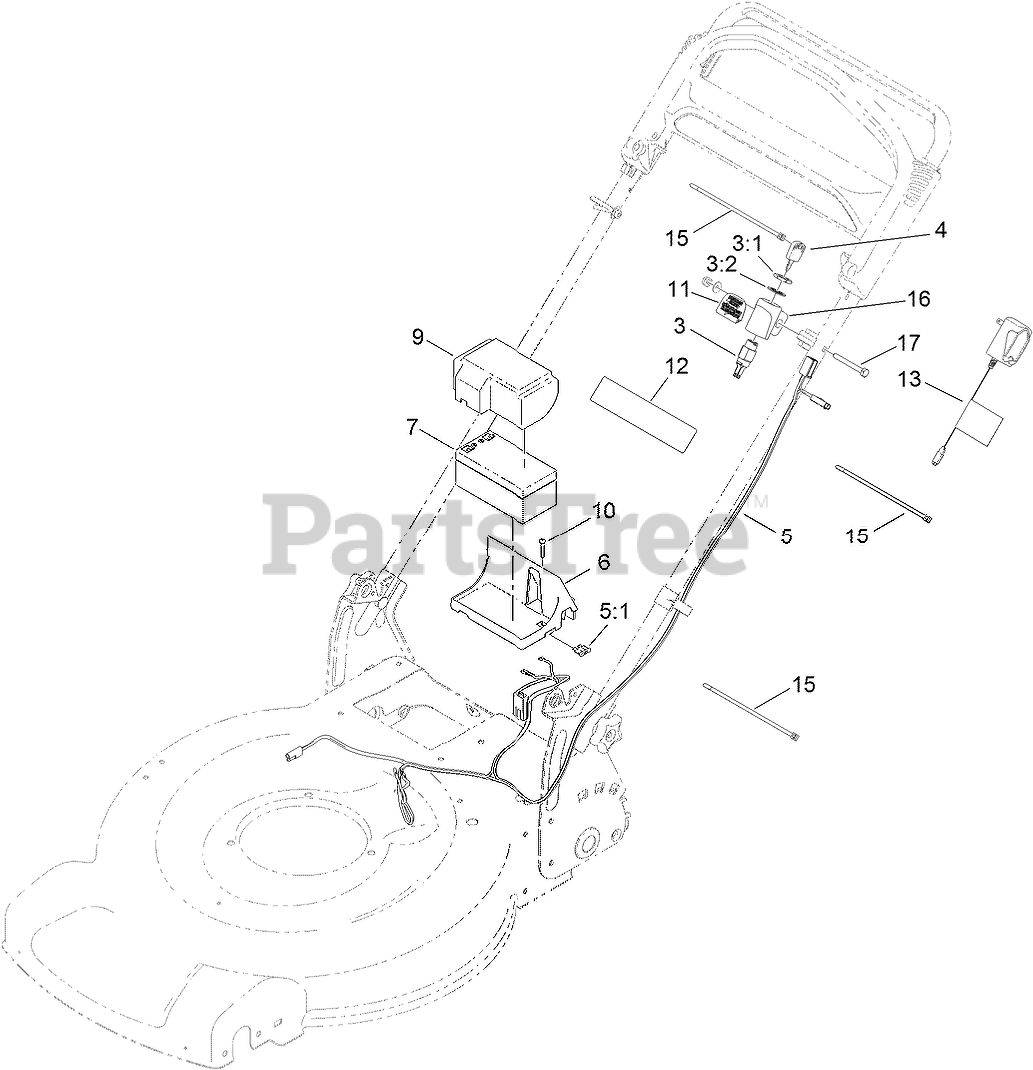

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

3

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

3:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

3:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

4

Toro 700918

KEY

$6.49

$

In Stock, Qty 10

0

5

Toro 121-2340

HARNESS-WIRE, ES

$78.99

$

Usually ships in 3-6 days

0

5:1

Toro 99-6124

FUSE-40 AMP

$5.49

$

In Stock, Qty 8

0

6

Toro 114-7936

TRAY-BATTERY

$11.99

$

Usually ships in 3-6 days

0

7

Toro 106-8397

BATTERY-WET

$79.99

$

Usually ships in 3-6 days

0

9

Toro 120-3329

COVER-BATTERY

$6.49

$

In Stock, only 2 left!

0

10

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 11

0

11

Toro 114-2619

DECAL-ELECTRIC START

$

$

Not available

12

Toro 104-7953

DECAL-WARNING

$9.99

$

Usually ships in 3-6 days

0

13

Toro 114-1588

CHARGER-BATTERY
(Superseded to 136-9126)

$41.99

$

In Stock, only 1 left!

0

15

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

16

Toro 108-9760

MOUNT-SWITCH

$5.99

$

In Stock, only 1 left!

0

17

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 8

0
