20372 - Toro 22" Recycler Walk-Behind Mower (SN: 406565101 - 999999999) Fly Wheel Assembly Parts Diagram

22" Recycler Walk-Behind Mower

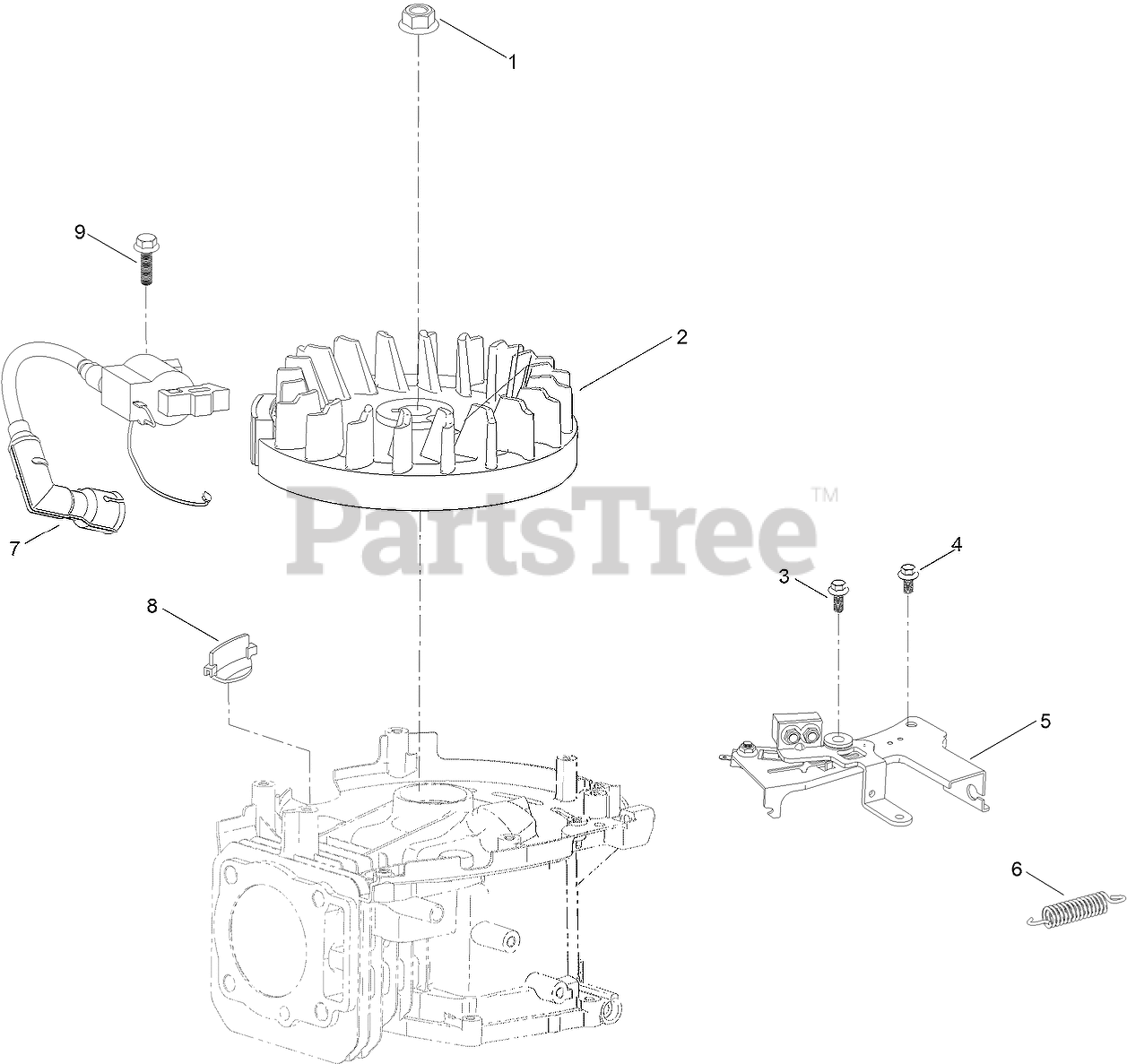

Fly Wheel Assembly Parts Diagram

  • Title
1

Toro 121-0047

NUT-FLANGE

$3.99

$

Usually ships in 3-6 days

0

2

Toro 139-0618

FLYWHEEL

$75.99

$

Usually ships in 3-6 days

0

3

Toro 121-0007

BOLT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

4

Toro 120-4232

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

5

Toro 136-7872

BRAKE ASM

$41.99

$

Usually ships in 3-6 days

0

6

Toro 133-9890

SPRING-BRAKE

$1.49

$

Usually ships in 3-6 days

0

7

Toro 136-7870

IGNITION COIL ASM

$66.99

$

In Stock, only 1 left!

0

8

Toro 133-9881

GUARD-FLYWHEEL

$1.99

$

Usually ships in 3-6 days

0

9

Toro 120-4225

SCREW-HHF

$1.99

$

In Stock, Qty 18

0
