20361 - Toro 22" Flex-Force Power System 60V MAX Recycler Walk-Behind Mower (SN: 400000000 - 405539999) Housing Assembly Parts Diagram

22" Flex-Force Power System 60V MAX Recycler Walk-Behind Mower

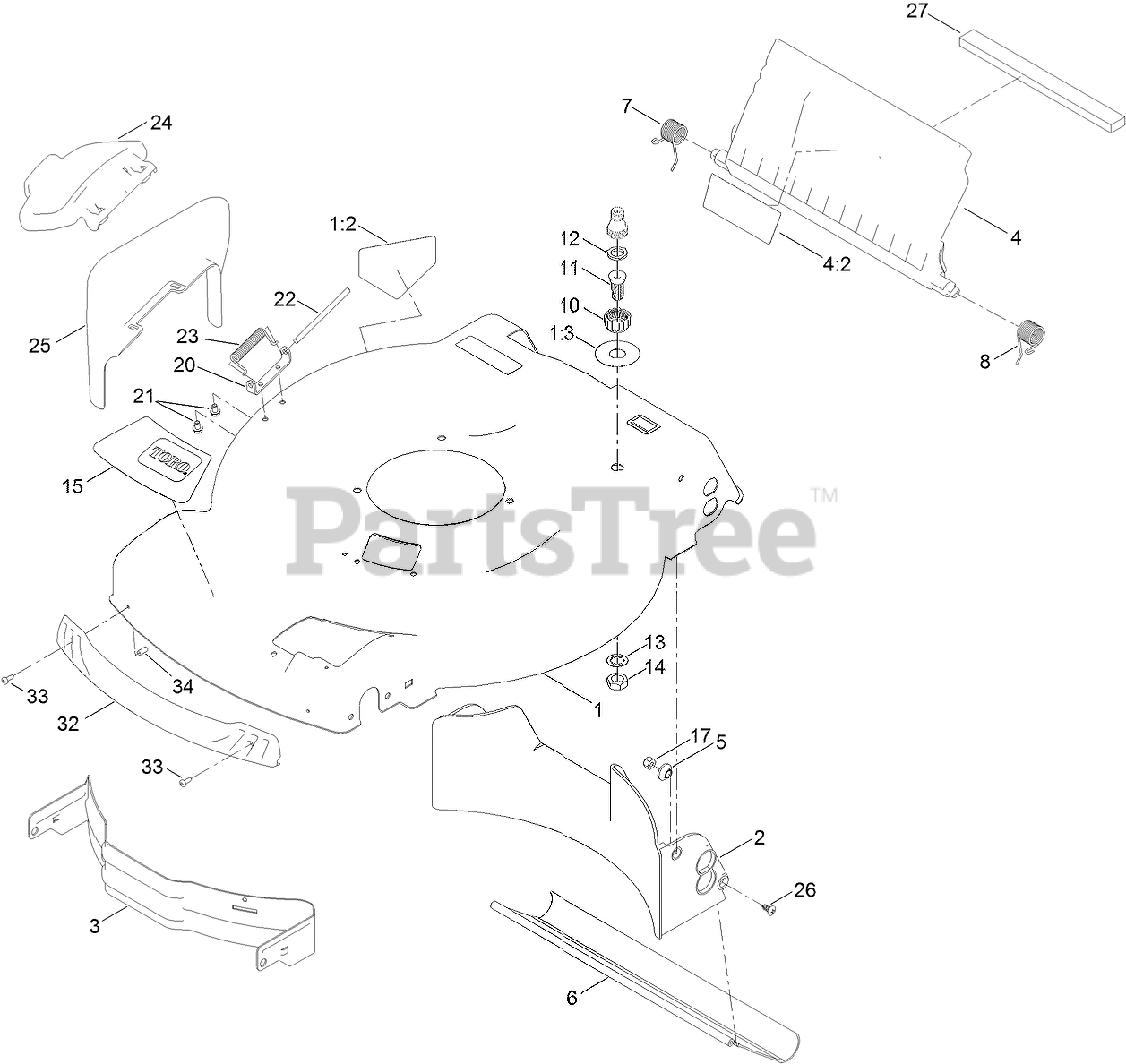

Housing Assembly Parts Diagram

  • Title

1

Toro 137-9140

HOUSING ASM

$222.99

$

Usually ships in 3-6 days

0

1:2

Toro 94-8072

DECAL-DANGER

$6.49

$

In Stock, only 2 left!

0

1:3

Toro 137-9196

DECAL-QUICK WASH

$2.49

$

In Stock, only 2 left!

0

2

Toro 120-5218

BAFFLE-REAR

$29.99

$

In Stock, Qty 20+

0

3

Toro 114-7963-01

BAFFLE-FRONT

$37.99

$

In Stock, Qty 20+

0

4

Toro 136-7003

REAR DEFLECTOR ASM

$26.99

$

In Stock, only 2 left!

0

4:2

Toro 131-4514

DECAL-WARNING

$2.49

$

In Stock, only 2 left!

0

5

Toro 117-5991

WASHER-STEPPED, BAFFLE

$1.49

$

In Stock, Qty 12

0

6

Toro 115-8420

SHIELD-TRAILING
(Superseded to 144-6431)

$15.99

$

In Stock, Qty 20+

0

7

Toro 114-7924

SPRING-TORSION

$3.49

$

In Stock, Qty 15

0

8

Toro 115-2859

SPRING-TORSION

$5.49

$

In Stock, Qty 16

0

10

Toro 112-6401

COUPLING-HOSE, WASHOUT PORT

$2.99

$

In Stock, Qty 9

0

11

Toro 112-6400

PORT-WASHOUT

$4.99

$

In Stock, Qty 9

0

12

Toro 112-6438

WASHER-SEAL, WASHOUT PORT

$1.99

$

In Stock, Qty 11

0

13

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 18

0

14

Toro 3218-6

NUT-JAM

$6.99

$

In Stock, Qty 19

0

15

Toro 115-4676

DECAL-RECYCLER

$9.49

$

In Stock, Qty 7

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 112-6416

BRACKET-COVER

$2.99

$

In Stock, Qty 20+

0

21

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

22

Toro 99-5291

See Supercession: 136-8672
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 20+

0

23

Toro 99-5293

SPRING-TORSION

$10.99

$

In Stock, Qty 20+

0

24

Toro 115-8449

DEFLECTOR-SIDE

$9.49

$

In Stock, Qty 20+

0

25

Toro 115-8447

CHUTE-DISCHARGE, SIDE

$17.99

$

In Stock, Qty 20+

0

26

Toro 117-1092

SCREW-PTH
(Superseded to 139-1692)

$0.99

$

In Stock, Qty 20+

0

27

Toro 117-5924

FOAM-SEAL

$2.99

$

In Stock, Qty 19

0

32

Toro 114-7987

BUMPER

$12.99

$

In Stock, Qty 9

0

33

Toro 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, Qty 20+

0

34

Toro 130-6660

CAP-PLUG

$0.99

$

In Stock, Qty 10

0
