20360 - Toro 20" e-Cycler Cordless Walk-Behind Mower (SN: 315000001 - 315999999) (2015) FRONT AXLE AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

20" e-Cycler Cordless Walk-Behind Mower

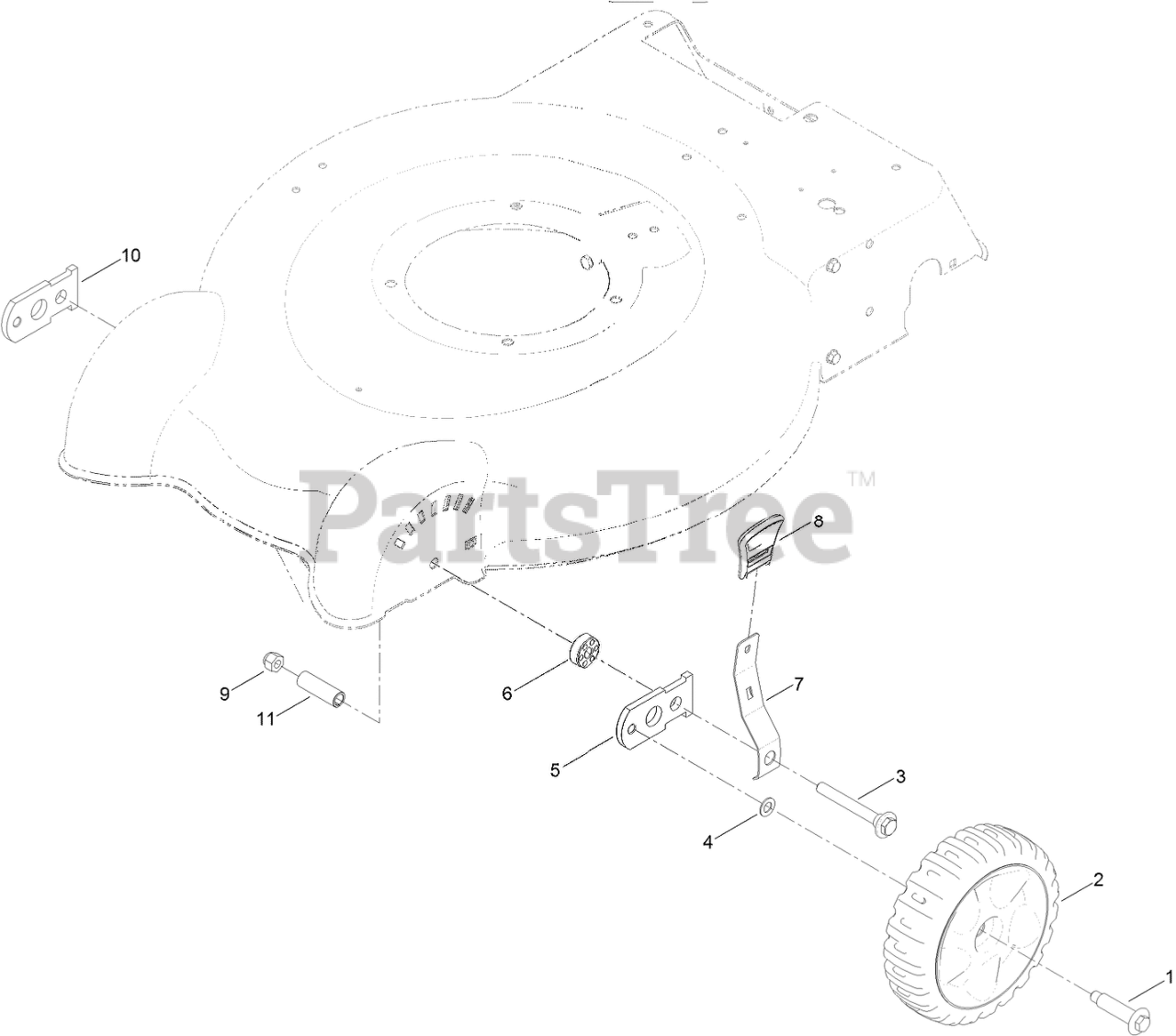

FRONT AXLE AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

  • Title
1

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

2

Toro 119-3777

7 INCH WHEEL AND TIRE ASM

$35.99

$

In Stock, only 1 left!

0

3

Toro 117-5996

BOLT-SHOULDER

$3.99

$

In Stock, only 1 left!

0

4

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

5

Toro 107-3877

ARM-PIVOT, RH

$12.99

$

In Stock, only 2 left!

0

6

Toro 117-5997

SPACER-ARM, PIVOT

$2.99

$

Usually ships in 3-6 days

0

7

Toro 112-8828

ARM-SPRING, FRONT

$10.99

$

In Stock, only 4 left!

0

8

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 108-1044

ARM-PIVOT, LH

$10.99

$

Usually ships in 3-6 days

0

11

Toro 117-5992

SPACER-BAFFLE, FRONT

$2.99

$

Usually ships in 3-6 days

0
