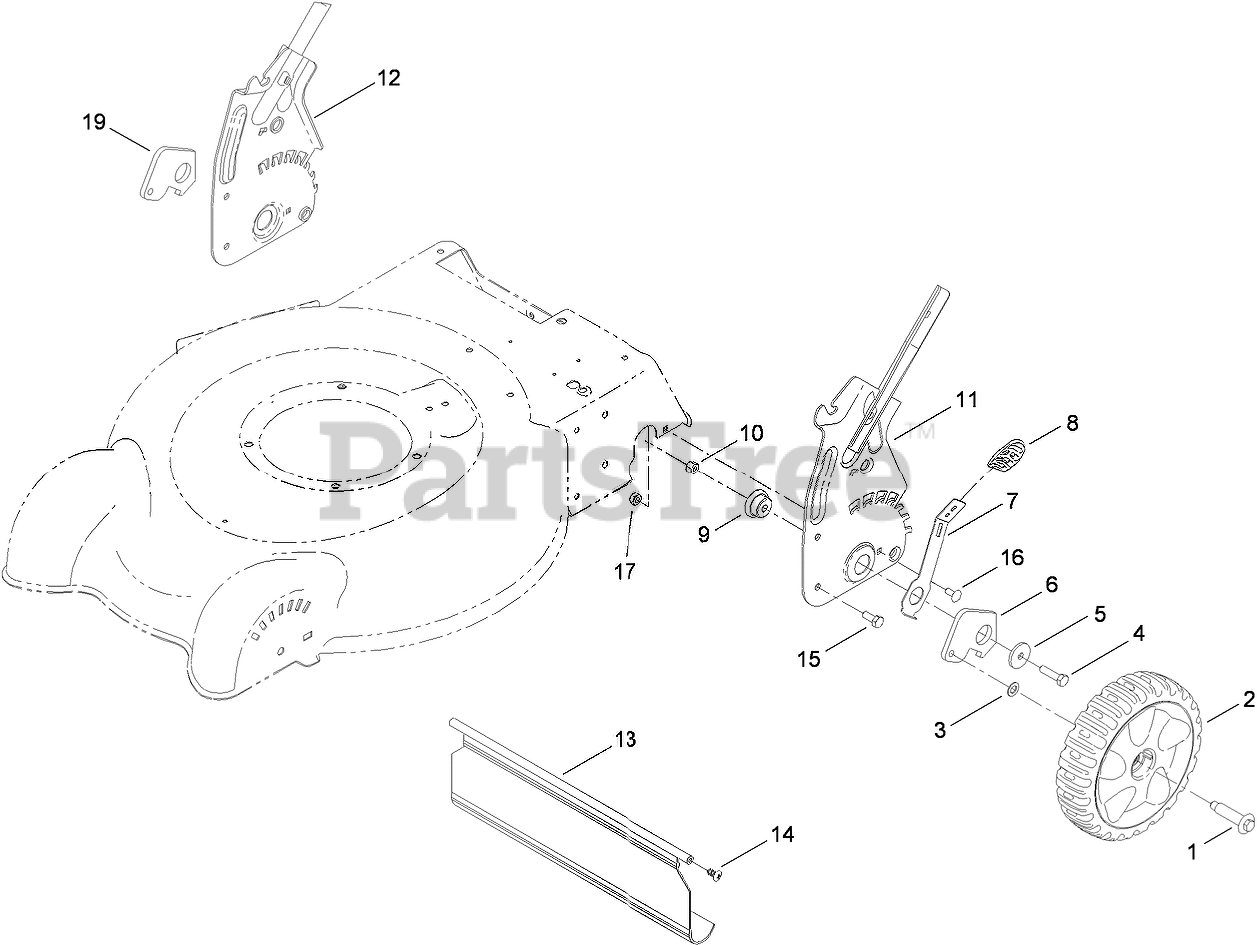

20360 - Toro 20" e-Cycler Cordless Walk-Behind Mower (SN: 312000001 - 312999999) (2012) REAR AXLE AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

20" e-Cycler Cordless Walk-Behind Mower

REAR AXLE AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

  • Title

1

Toro 614650

BOLT-SHOULDER

$4.49

$

Usually ships in 3-6 days

0

2

Toro 117-5995

8 INCH WHEEL AND TIRE ASM

$40.99

$

Usually ships in 3-6 days

0

3

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

4

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

5

Toro 105-3048

Washer-Flat

$1.49

$

In Stock, Qty 11

0

6

Toro 105-1819

Arm-Pivot, Rear (LH)

$11.99

$

In Stock, only 4 left!

0

7

Toro 105-1809

Arm-Spring

$11.99

$

Usually ships in 3-6 days

0

8

Toro 105-3042

Knob-Lever, HOC

$4.49

$

In Stock, only 3 left!

0

9

Toro 105-1818

Bushing-Mount, HOC

$4.99

$

In Stock, Qty 9

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

11

Toro 119-3804-03

HOC-LH

$30.99

$

Usually ships in 3-6 days

0

12

Toro 119-3805-03

HOC-RH

$

$

Not available

13

Toro 112-8768

SHIELD-TRAILING
(Superseded to 120-7010)

$39.99

$

In Stock, only 1 left!

0

14

Toro 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

17

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

19

Toro 108-4816

ARM-PIVOT, REAR (RH)
(Superseded to 105-1819)

$11.99

$

In Stock, only 4 left!

0
