2036 - Jonsered Chainsaw (1998-10) CHAIN BRAKE CLUTCH COVER Parts Diagram

Chainsaw

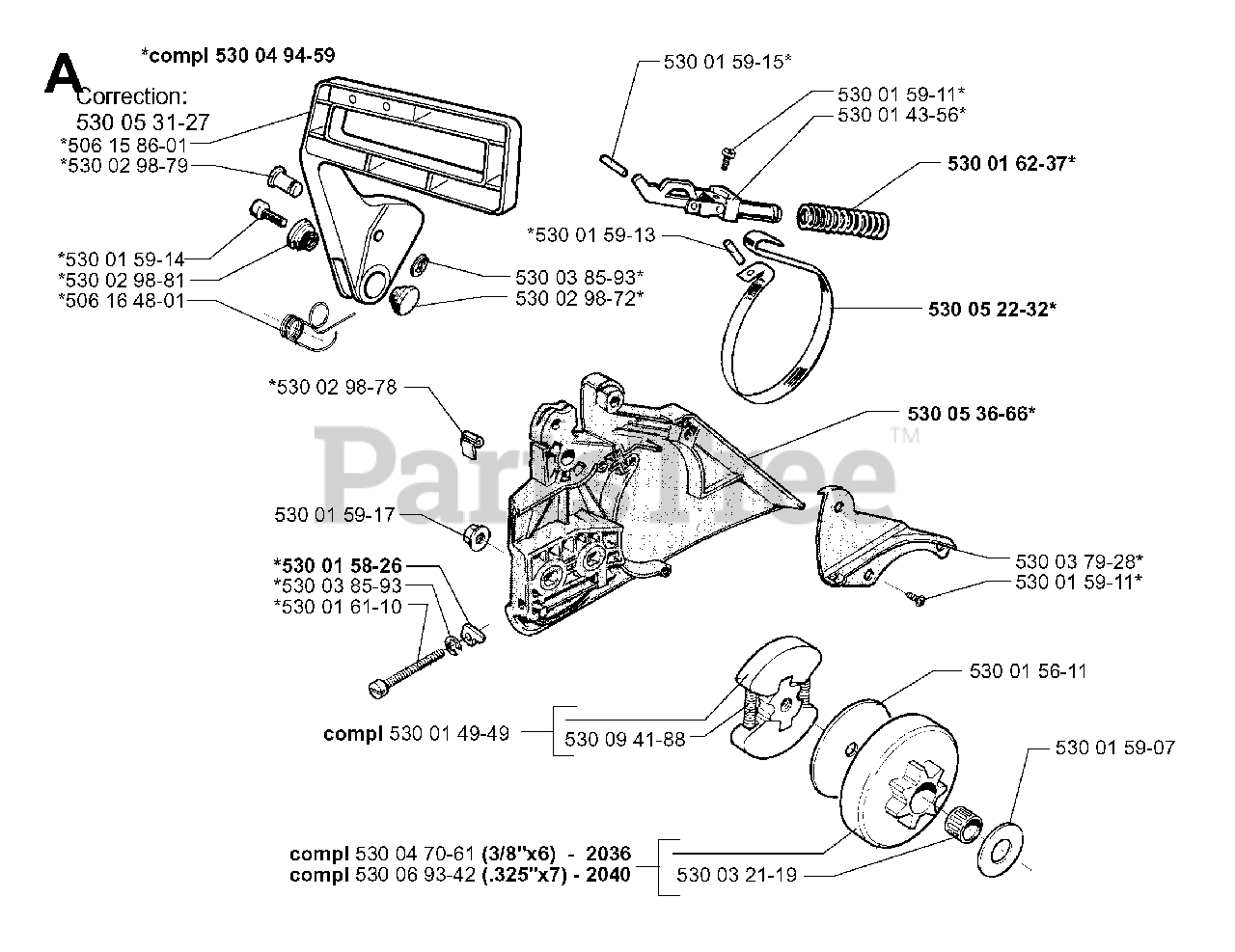

CHAIN BRAKE CLUTCH COVER Parts Diagram

  • Title
5300494-59

Jonsered 530049459

CHAIN BRAKE
(Superseded to 530054871)

$

$

Not available

5300531-27

Jonsered 530053127

No Description Available

Note: CORRECTION :

$

$

Not available

5300298-79

Jonsered 530029879

PIVOT PIN

$4.99

$

In Stock, only 2 left!

0

5300159-14

$3.49

$

In Stock, Qty 8

0

5300298-81

Jonsered 530029881

SHAFT PIVOT

$3.99

$

In Stock, only 1 left!

0

5061648-01

$8.99

$

Usually ships in 3-10 days

0

5300298-78

Jonsered 530029878

SPRING-POSITION

$6.49

$

In Stock, Qty 8

0

5300159-17

$3.99

$

In Stock, Qty 12

0

5300158-26

Jonsered 530015826

ADJUST PIN,BAR 36/41

$4.99

$

In Stock, Qty 20+

0

5300385-93

$4.99

$

In Stock, Qty 20+

0

5300161-10

Jonsered 530016110

BAR ADJUSTING SCREW

$4.99

$

In Stock, Qty 20+

0

5300149-49

Jonsered 530014949

CLUTCH ASSEMBLY

$22.99

$

In Stock, only 1 left!

0

5300470-61

Jonsered 530047061

CLUTCH DRUM ASSY

Note: (3 /8X6)- 2036

$17.99

$

In Stock, Qty 5

0

5300693-42

Jonsered 530069342

SPUR SPRKT .325 7T 36/41

Note: ( 325X7)- 2040

$40.99

$

In Stock, Qty 6

0

5300321-19

Jonsered 530032119

NEEDLE BEARINGS 36/41

$10.99

$

In Stock, Qty 5

0

5300941-88

Jonsered 530094188

CLUTCH SPRING 36/41
(Superseded to 530014949)

$22.99

$

In Stock, only 1 left!

0

5300298-72

Jonsered 530029872

SHAFT PIVOT

$

$

Not available

5300385-93

$4.99

$

In Stock, Qty 20+

0

5300159-13

$4.99

$

In Stock, only 4 left!

0

5300159-07

Jonsered 530015907

DUST COVER 36/41

$

$

Not available

5300156-11

Jonsered 530015611

FRICTION DISC,CLUTCH 36/41

$6.49

$

In Stock, only 1 left!

0

5300159-11

Jonsered 530015911

SCREW
(Superseded to 574780301)

$7.49

$

Usually ships in 3-10 days

0

5300379-28

Jonsered 530037928

COVER
(Superseded to 530053126)

$

$

Not available

5300536-66

Jonsered 530053666

COVER
(Superseded to 530054871)

$

$

Not available

5300522-32

Jonsered 530052232

BRAKE BAND
(Superseded to 545137401)

$7.49

$

In Stock, Qty 7

0

5300162-37

Jonsered 530016237

%COMPRESSION SPRING
(Superseded to 545137301)

$8.99

$

Usually ships in 3-10 days

0

5300143-56

Jonsered 530014356

FRONT & REAR LINK ASSEMBLY NLA

$

$

Not available

5300159-11

Jonsered 530015911

SCREW
(Superseded to 574780301)

$7.49

$

Usually ships in 3-10 days

0

5300159-15

$

$

Not available
