20357 - Toro 22" Recycler Walk-Behind Mower (SN: 400000000 - 402084999) HANDLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

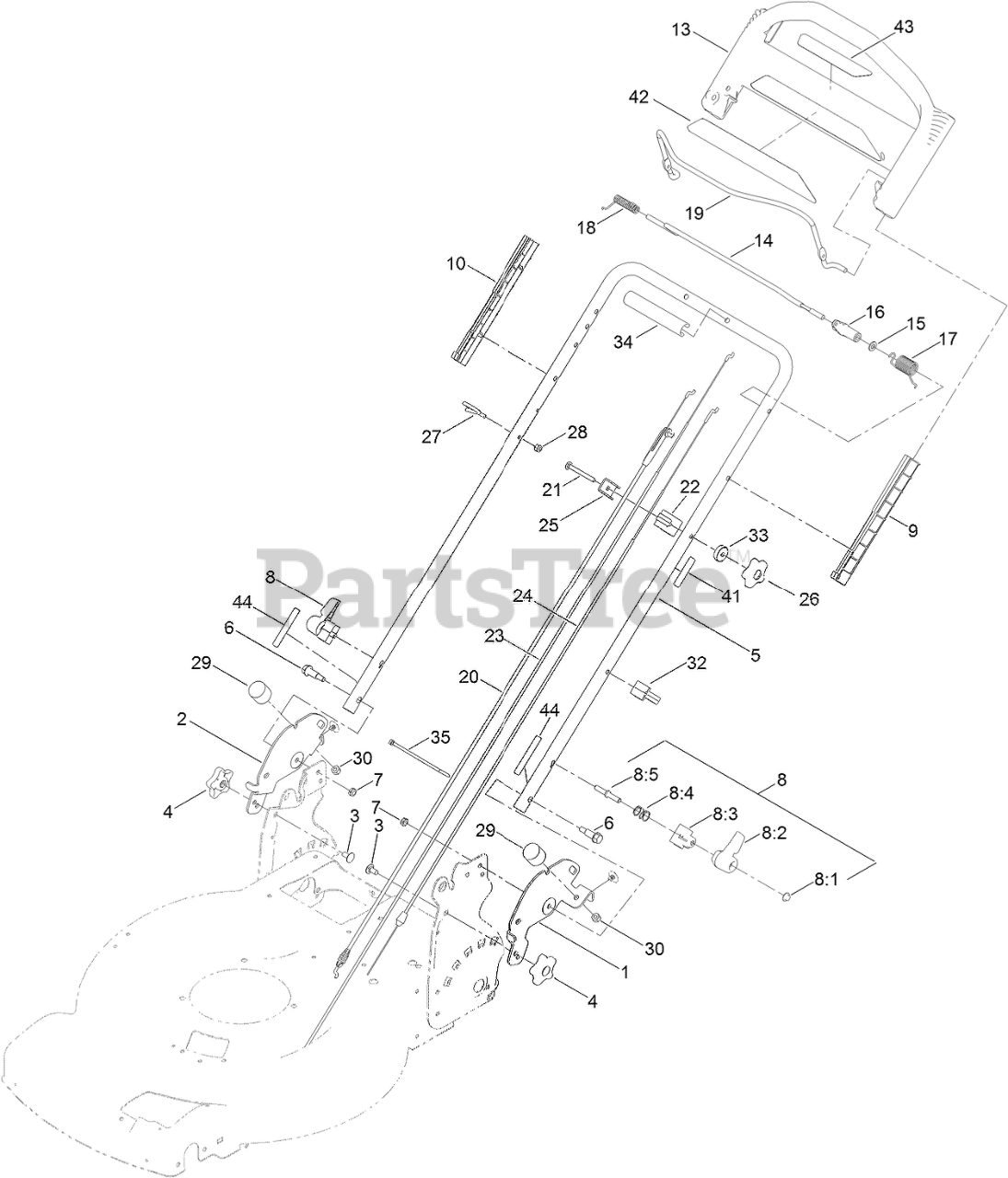

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 136-7079-03

BRKT-FLOAT, LH

$

$

Not available

2

Toro 136-7080-03

BRKT-FLOAT, LH

$

$

Not available

3

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

4

Toro 114-3779

KNOB-HANDLE

$6.49

$

In Stock, Qty 11

0

5

Toro 132-4471-05

HANDLE

$61.99

$

In Stock, only 2 left!

0

6

Toro 130-2344

BOLT-SHOULDER
(Superseded to 140-3759)

$1.49

$

Usually ships in 3-6 days

0

7

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 10

0

8

QUICK RELEASE ASM

Note: Not serviced separately

$

$

Not available

8:1

Toro 109-0917

NUT-PUSH
(Superseded to 32112-11)

$1.49

$

In Stock, only 3 left!

0

8:2

Toro 114-7995

LEVER
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

8:3

Toro 114-7996

ANCHOR-SPRING
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

8:4

Toro 115-2858

SPRING-COMPRESSION

$3.49

$

In Stock, only 2 left!

0

8:5

Toro 114-2675

ROD-RELEASE
(Superseded to 138-3243)

$2.49

$

Usually ships in 3-6 days

0

9

Toro 136-5879

GUIDE, LH

$8.99

$

Usually ships in 3-6 days

0

10

Toro 136-5880

GUIDE, RH

$8.99

$

Usually ships in 3-6 days

0

13

Toro 136-5877

HANDLE-PACE, PERSONAL

$34.99

$

Usually ships in 3-6 days

0

14

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$17.99

$

In Stock, only 1 left!

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 136-5878

LEVER-TRACTION

$5.49

$

In Stock, only 1 left!

0

17

Toro 136-5883

SPRING-TORSION

$4.99

$

Usually ships in 3-6 days

0

18

Toro 121-9118

Spring-Torsion
(Superseded to 136-7166)

$3.49

$

In Stock, Qty 7

0

19

Toro 131-0880-03

BAIL-BRAKE

$25.99

$

In Stock, only 1 left!

0

20

Toro 130-2381

CABLE-BRAKE

$35.99

$

In Stock, only 3 left!

0

21

Toro 3229-8

SCREW-CARR

$4.99

$

Usually ships in 3-6 days

0

22

Toro 130-6716

MOUNT-CABLE, TRACTION

$3.99

$

Usually ships in 3-6 days

0

23

Toro 136-5891

CABLE-TRACTION, FRONT

$18.99

$

Usually ships in 3-6 days

0

24

Toro 136-5892

CABLE-TRACTION, REAR

$18.99

$

In Stock, only 1 left!

0

25

Toro 136-5922

CLAMP-CABLE

$3.99

$

In Stock, Qty 18

0

26

Toro 131-0897

KNOB-HANDLE, LOCKING

$4.49

$

In Stock, Qty 6

0

27

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

28

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

29

Toro 136-5889

BUMPER-RUBBER
(Superseded to 137-4803)

$4.49

$

Usually ships in 3-6 days

0

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 7

0

33

Toro 136-9075

WASHER-CURVED

$1.49

$

In Stock, only 2 left!

0

34

Toro 131-4551

HANDLE-COVER

$1.49

$

Usually ships in 3-6 days

0

35

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

41

Toro 136-9096

DECAL-ADJUSTMENT

$2.49

$

Usually ships in 3-6 days

0

42

Toro 136-5898

DECAL-POWEREVERSE

$8.49

$

Usually ships in 3-6 days

0

43

Toro 136-5899

DECAL-DRIVE INSTRUCTION

$6.49

$

Usually ships in 3-6 days

0

44

Toro 136-9130

DECAL-FLEXHEIGHT

$2.49

$

Usually ships in 3-6 days

0
