20357 - Toro 22" Recycler Walk-Behind Mower (SN: 400000000 - 402084999) ENGINE AND BLADE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

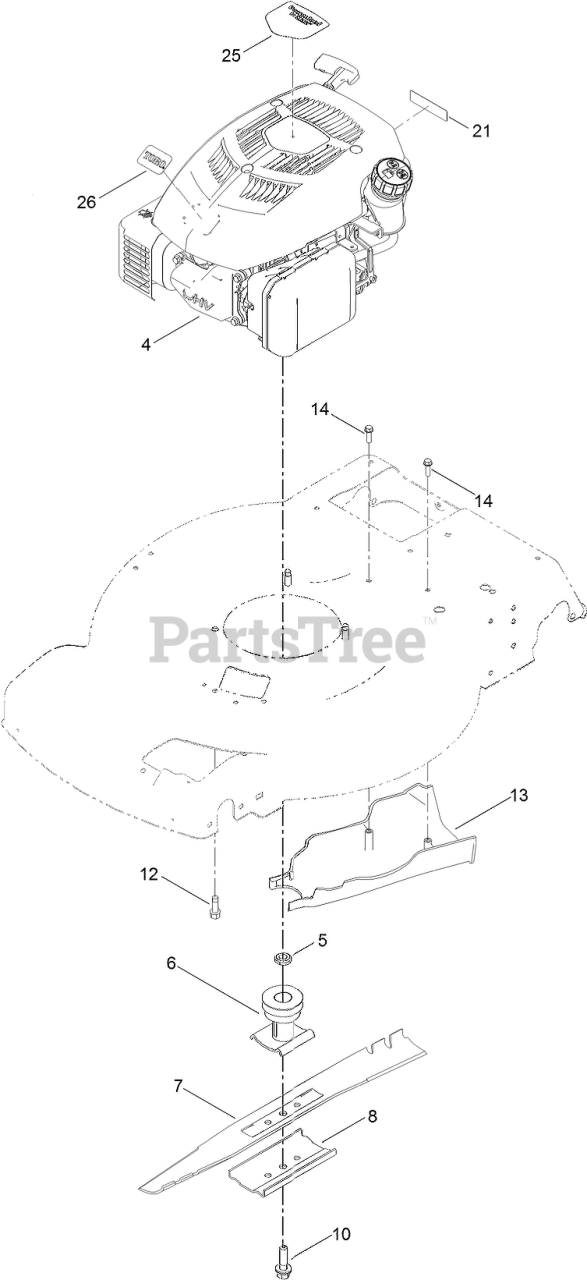

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title
4

Toro 133-9860

ENGINE-1P65F

$515.99

$

Usually ships in 3-6 days

0

5

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

6

Toro 130-6705

DRIVER-BLADE

$41.99

$

Usually ships in 3-6 days

0

7

Toro 131-4547-03

BLADE-22 INCH

$22.99

$

In Stock, Qty 5

0

8

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

10

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

12

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

13

Toro 130-6709

COVER-BELT, REAR

$15.99

$

In Stock, only 1 left!

0

14

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

21

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

25

Toro 136-9139

DECAL-ENGINE

$6.49

$

Usually ships in 3-6 days

0

26

$2.49

$

Usually ships in 3-6 days

0
