20355 - Toro 22" Recycler Walk-Behind Mower with SmartStow (SN: 404330000 - 405599999) Rear Wheel and Height-of-Cut Assembly Parts Diagram

22" Recycler Walk-Behind Mower with SmartStow

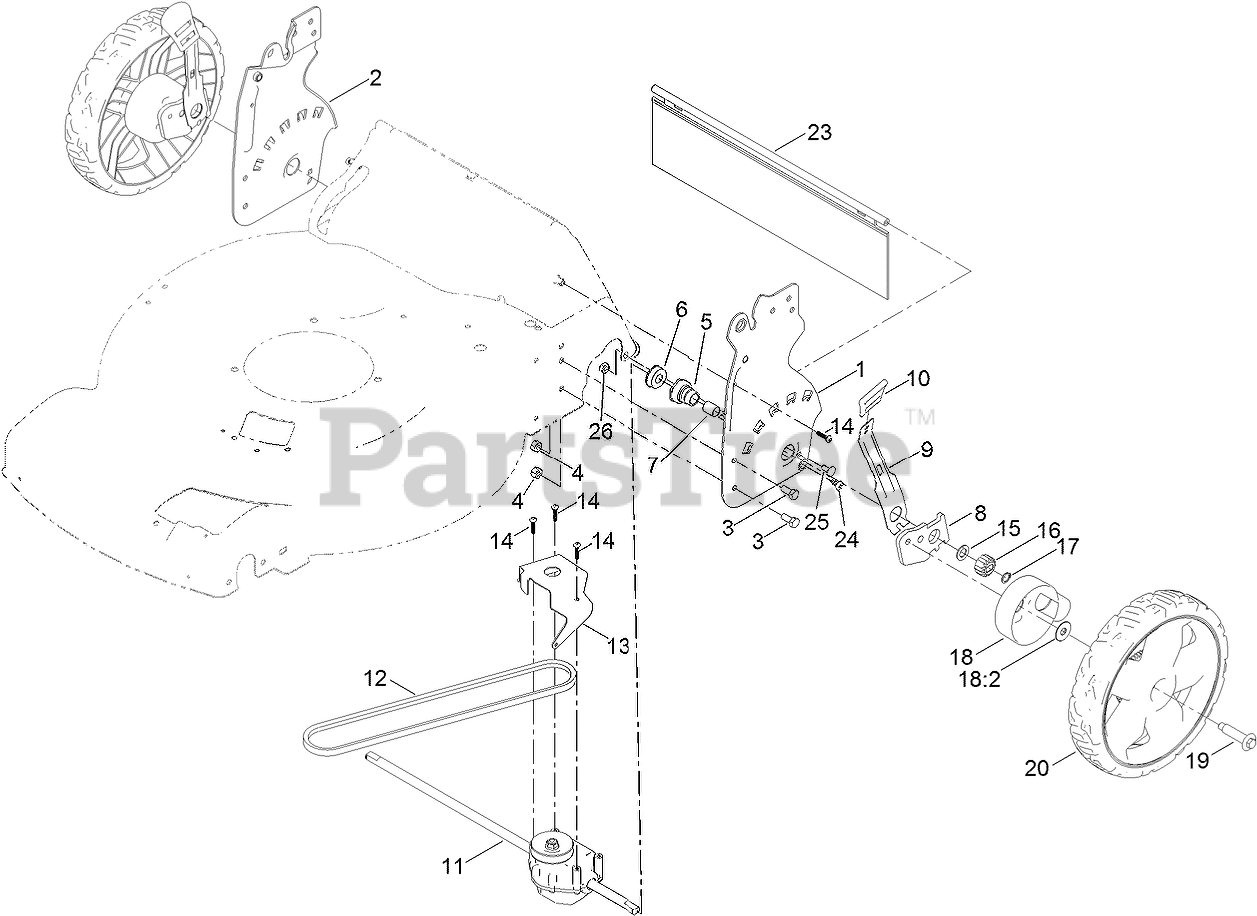

Rear Wheel and Height-of-Cut Assembly Parts Diagram

  • Title

1

Toro 137-9104

ASM-PLATE, HOC (LH)

$25.99

$

Usually ships in 3-6 days

0

2

Toro 137-9103

ASM-PLATE, HOC (RH)

$25.99

$

Usually ships in 3-6 days

0

3

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 108-9779

RETAINER-BUSHING, HOC

$13.99

$

In Stock, Qty 20+

0

6

Toro 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 20+

0

7

Toro 108-9782

BUSHING-SLEEVE

$5.49

$

In Stock, Qty 20+

0

8

Toro 136-9090

ARM-PIVOT, REAR

$12.99

$

In Stock, Qty 11

0

9

Toro 132-4486

ARM-SPRING

$14.99

$

Usually ships in 3-6 days

0

10

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

11

Toro 137-4825

TRANSMISSION-RWD (6:1)

$117.99

$

In Stock, only 1 left!

0

12

Toro 91-2258

BELT-V

$18.99

$

In Stock, Qty 20+

0

13

Toro 132-4481-01

BRACKET-TRANSMISSION

$23.99

$

Usually ships in 3-6 days

0

14

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 20+

0

15

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

16

Toro 131-5399

GEAR-PINION, 15T

$5.49

$

In Stock, Qty 20+

0

17

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

18

Toro 136-9057

GEAR COVER ASM

$5.99

$

In Stock, only 3 left!

0

18:2

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

19

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

20

Toro 136-5859

WHEEL GEAR ASM

$42.99

$

In Stock, only 1 left!

0

23

Toro 120-7012

SHIELD-TRAILING
(Superseded to 139-6604)

$17.99

$

In Stock, Qty 15

0

24

Toro 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

25

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

26

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0
