20353 - Toro 22" Recycler Walk-Behind Mower (SN: 316000001 - 316000328) (2016) ENGINE AND BLADE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

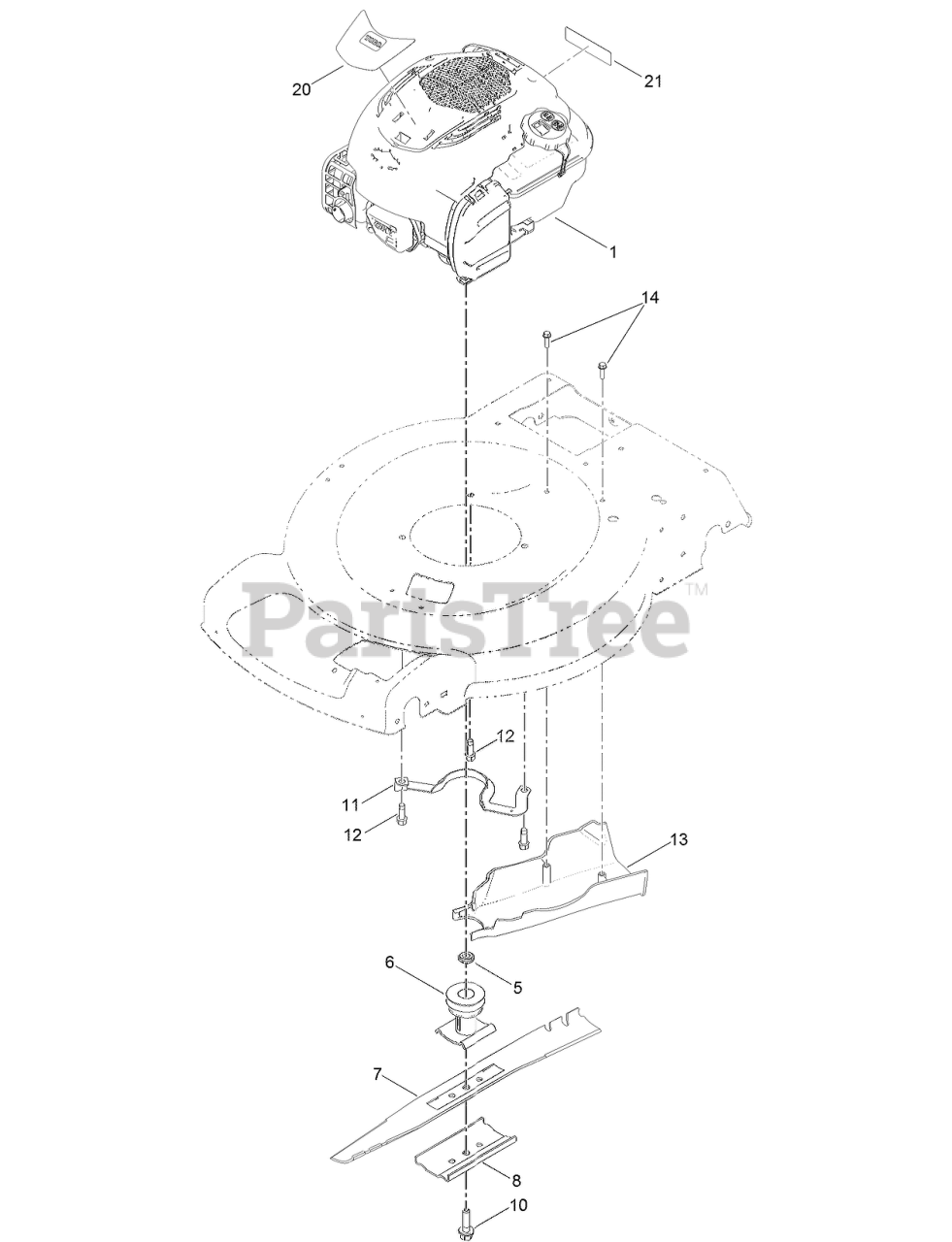

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-BRIGGS, 104M020010F1

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS, 104M020010F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

5

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

6

Toro 130-6705

DRIVER-BLADE

$41.99

$

In Stock, only 1 left!

0

7

Toro 131-4547-03

BLADE-22 INCH

$22.99

$

In Stock, Qty 8

0

8

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

10

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

11

Toro 130-6702-03

GUIDE-BELT

$8.99

$

In Stock, only 2 left!

0

12

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

13

Toro 130-6709

COVER-BELT, REAR

$15.99

$

In Stock, only 1 left!

0

14

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

20

Toro 131-4518

DECAL-SHROUD, BRIGGS

$4.99

$

Usually ships in 3-6 days

0

21

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0
