20351 - Toro 22" Recycler Walk-Behind Mower (SN: 290000001 - 290999999) (2009) BLOWER HOUSING, FLYWHEEL AND IGNITION ASSEMBLY BRIGGS AND STRATTON 124L02-0126-F1 Parts Diagram

22" Recycler Walk-Behind Mower

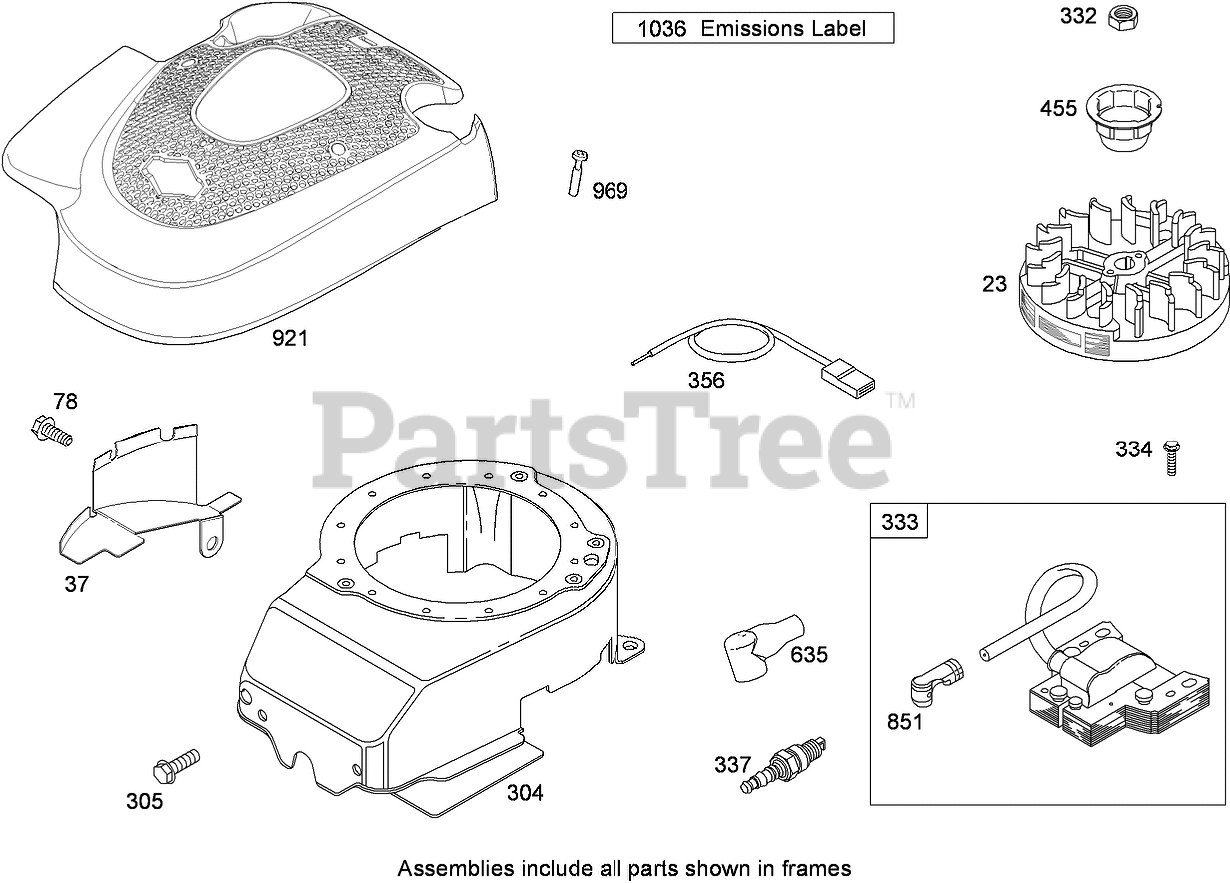

BLOWER HOUSING, FLYWHEEL AND IGNITION ASSEMBLY BRIGGS AND STRATTON 124L02-0126-F1 Parts Diagram

  • Title
23

Briggs & Stratton 691987

Flywheel

Note: Obtain parts from www.briggsandstratton.com

$112.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 793756

Guard-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 3 left!

0

78

Briggs & Stratton 691108

Screw (Flywheel Guard)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

304

Briggs & Stratton 790826

Housing-Blower

Note: Obtain parts from www.briggsandstratton.com

$103.99

$

In Stock, only 1 left!

0

305

Briggs & Stratton 691108

Screw (Blower Housing)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 690662

Nut (Flywheel)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

Note: Obtain parts from www.briggsandstratton.com

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

Screw (Magneto Armature)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

337

Toro 802592s

Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

356

Briggs & Stratton 692390

Wire-Stop

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

455

Briggs & Stratton 791960

Cup-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, only 1 left!

0

635

Toro 66538s

Boot-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

851

Toro 483880s

Terminal-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

921

Briggs & Stratton 792652

Cover-Housing, Blower

Note: Obtain parts from www.briggsandstratton.com

$56.99

$

Usually ships in 2-12 days

0

969

Briggs & Stratton 691138

Screw (Blower Housing Cover)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 18

0

1036

Label-Emissions

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1036

Label-Emissions

Note: Not illustrated

$

$

Not available

1036

Label-Emissions

Note: Not serviced separately

$

$

Not available
