20350 - Toro 22" Recycler Walk-Behind Mower (SN: 290000001 - 290999999) (2009) CARBURETOR AND FUEL TANK ASSEMBLY BRIGGS AND STRATTON 124L02-0126-F1 Parts Diagram

22" Recycler Walk-Behind Mower

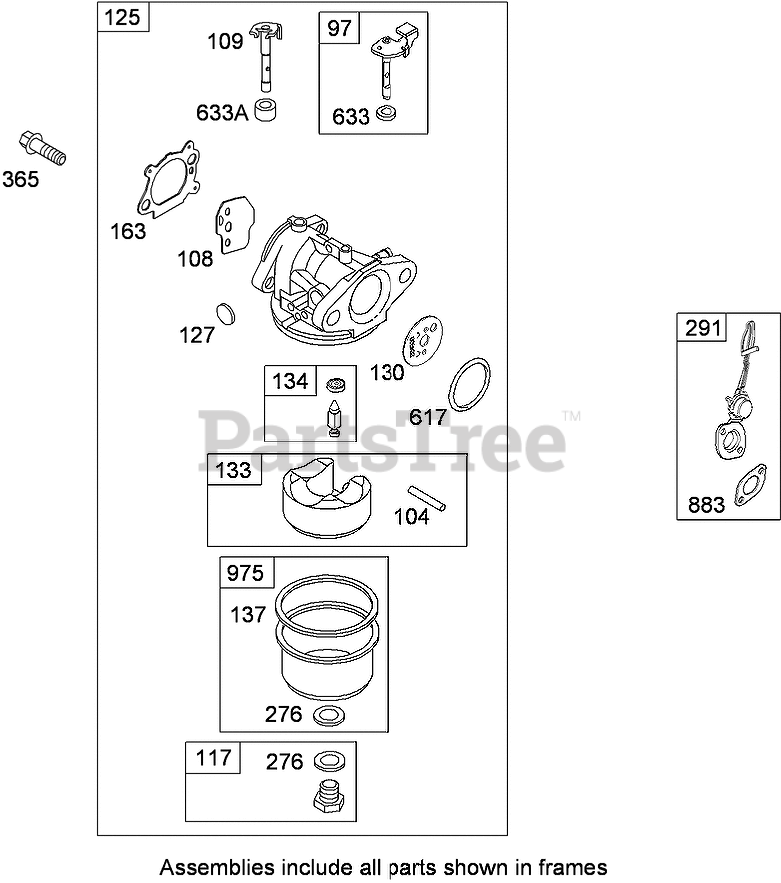

CARBURETOR AND FUEL TANK ASSEMBLY BRIGGS AND STRATTON 124L02-0126-F1 Parts Diagram

  • Title

97

Briggs & Stratton 696565

Shaft-Throttle

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

In Stock, only 3 left!

0

104

Briggs & Stratton 691242

Pin-Hinge, Float
(Superseded to 797622)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 10

0

104

Briggs & Stratton 691242

Pin-Hinge, Float
(Superseded to 797622)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.99

$

In Stock, Qty 10

0

108

Briggs & Stratton 795935

Valve-Choke

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 795936

Shaft-Choke
(Superseded to 796193)

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, only 2 left!

0

117

Briggs & Stratton 695042

Jet-Main (STD)

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

In Stock, only 1 left!

0

125

Briggs & Stratton 794304

Carburetor
(Superseded to 799866)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

127

Briggs & Stratton 694468

Plug-Welch

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 3 left!

0

127

Briggs & Stratton 694468

Plug-Welch

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.49

$

In Stock, only 3 left!

0

130

Briggs & Stratton 696564

Valve-Throttle

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 796610

Gasket-Bowl, Float (Used After Date Code 08120100)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$6.99

$

In Stock, Qty 8

0

137

Briggs & Stratton 796610

Gasket-Bowl, Float (Used After Date Code 08120100)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, Qty 8

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float (Used Before Date Code 08120200)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float (Used Before Date Code 08120200)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 795629

Gasket-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 795629

Gasket-Cleaner, Air

Note: Included in Engine Gasket Set (Ref. No. 358)

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 795629

Gasket-Cleaner, Air

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$6.99

$

In Stock, Qty 16

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, Qty 16

0

291

Briggs & Stratton 790830

Thermostat
(Superseded to 593208)

Note: Obtain parts from www.briggsandstratton.com

$23.99

$

In Stock, Qty 18

0

365

Briggs & Stratton 691688

Screw (Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 1 left!

0

617

Toro 270344s

Seal-O Ring (Intake Manifold)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

617

Toro 270344s

Seal-O Ring (Intake Manifold)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

617

Toro 270344s

Seal-O Ring (Intake Manifold)

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

633

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle (Throttle Shaft)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.99

$

Usually ships in 2-12 days

0

633

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle (Throttle Shaft)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 693867

Seal-Shaft, Choke Throttle (Choke Shaft)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 2 left!

0

883

Briggs & Stratton 691881

Gasket-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691881

Gasket-Exhaust

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691881

Gasket-Exhaust

Note: Included in Valve Gasket Set (Ref. No. 1095)

$8.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available
