20349 - Toro 21" Recycler Walk-Behind Mower (SN: 404320000 - 405999999) Handle Assembly Parts Diagram

21" Recycler Walk-Behind Mower

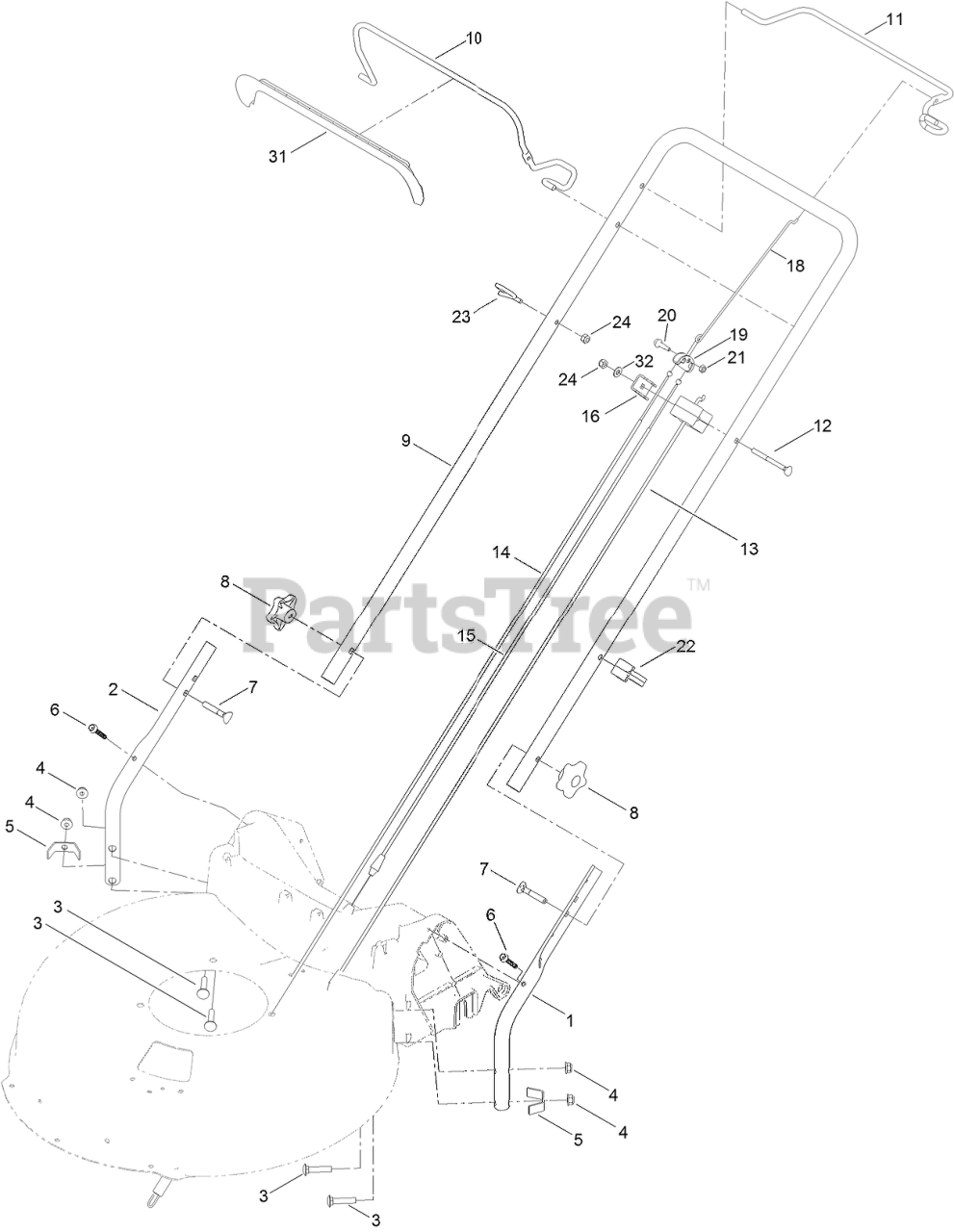

Handle Assembly Parts Diagram

  • Title
1

Toro 136-5923-05

HANDLE-LOWER, LH

$47.99

$

In Stock, Qty 15

0

2

Toro 136-5924-05

HANDLE-LOWER, RH

$23.99

$

In Stock, Qty 20+

0

3

Toro 130-6654

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

4

Toro 130-6655

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 17

0

5

Toro 127-0699

BRACKET-CHUTE

$1.99

$

In Stock, only 4 left!

0

6

Toro 130-6659

SCREW-FLANGE, SERRATED

$1.49

$

In Stock, Qty 15

0

7

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 5

0

8

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 15

0

9

Toro 137-4826-05

HANDLE-UPPER

$56.99

$

Usually ships in 3-6 days

0

10

Toro 138-3270-03

BAIL-BRAKE

$14.99

$

Usually ships in 3-6 days

0

11

Toro 137-4799-03

BAIL-TRACTION

$17.99

$

In Stock, only 1 left!

0

12

Toro 92-2267

SCREW-HANDLE

$6.49

$

In Stock, only 4 left!

0

13

Toro 138-3291

CABLE-BRAKE

$18.99

$

Usually ships in 3-6 days

0

14

Toro 133-1914

CABLE-TRACTION, FRONT

$17.99

$

Usually ships in 3-6 days

0

15

Toro 133-1915

CABLE-TRACTION, REAR

$12.99

$

Usually ships in 3-6 days

0

16

Toro 136-5922

CLAMP-CABLE

$3.99

$

In Stock, Qty 18

0

18

Toro 131-4515

LINKAGE, EQUALIZER
(Superseded to 140-3986)

$8.99

$

In Stock, Qty 10

0

19

Toro 130-6719

YOKE-CABLE

$4.49

$

Usually ships in 3-6 days

0

20

Toro 132-4519

SCREW-SHOULDER

$1.49

$

In Stock, Qty 5

0

21

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 7

0

23

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

24

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

31

Toro 137-4797

COVER-BAIL

$4.49

$

In Stock, only 1 left!

0

32

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
