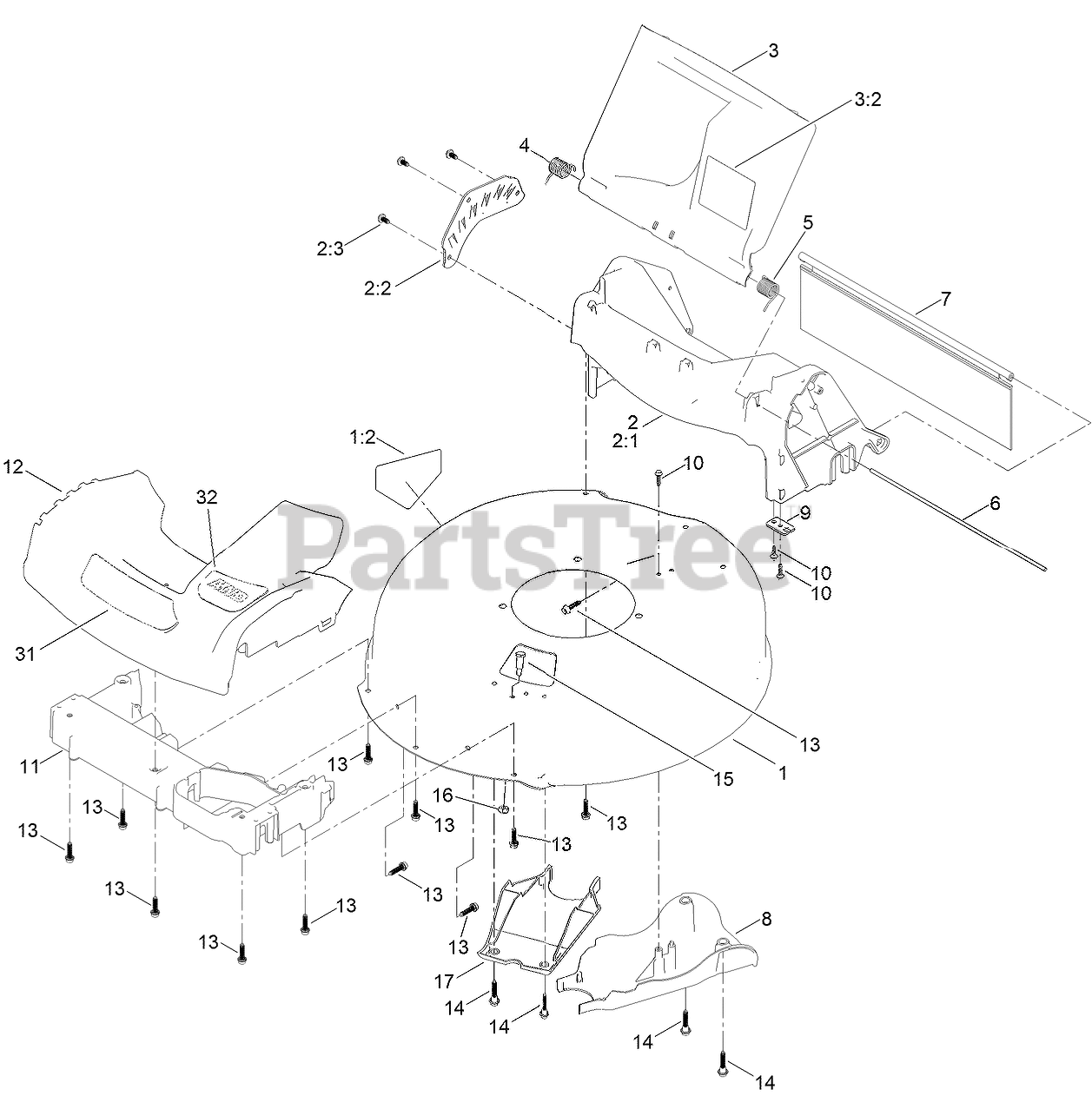

20349 - Toro 21" Recycler Walk-Behind Mower (SN: 400000000 - 404319999) Frame Assembly Parts Diagram

21" Recycler Walk-Behind Mower

Frame Assembly Parts Diagram

  • Title

1

Toro 137-9158

HOUSING ASM

$187.99

$

Usually ships in 3-6 days

0

1:2

Toro 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 12

0

2

Toro 133-1913

CHUTE ASM
(Superseded to 139-1805)

$38.99

$

In Stock, Qty 14

0

2:1

Toro 133-1912

CHUTE
(Superseded to 140-4160)

$27.99

$

Usually ships in 3-6 days

0

2:2

Toro 133-1905-03

PLATE-HOC

$13.99

$

Usually ships in 3-6 days

0

2:3

Toro 133-1936

SCREW-PLASTIC TPH

$

$

Not available

3

Toro 130-2368

REAR DEFLECTOR ASM

$27.99

$

Usually ships in 3-6 days

0

3:2

Toro 117-4143

DECAL-WARNING

$5.99

$

Usually ships in 3-6 days

0

4

Toro 127-6807

SPRING-TORSION

$3.49

$

In Stock, only 2 left!

0

5

Toro 127-6808

SPRING-TORSION

$

$

Not available

6

Toro 127-0698

ROD-DOOR

$2.99

$

In Stock, only 1 left!

0

7

Toro 127-0724

SHIELD-TRAILING

$13.99

$

Usually ships in 3-6 days

0

8

Toro 131-0852

COVER-BELT

$10.99

$

Usually ships in 3-6 days

0

9

Toro 127-0730

BRACKET-CABLE

$1.49

$

In Stock, Qty 8

0

10

Toro 127-6831

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

11

Toro 131-0864

MOUNT-BUMPER

$15.99

$

Usually ships in 3-6 days

0

12

Toro 131-0876

BUMPER

$22.99

$

In Stock, only 3 left!

0

13

Toro 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 6

0

14

Toro 131-0837

SCREW-SHOULDER, HHF

$1.99

$

In Stock, Qty 19

0

15

Toro 119-9812

BOLT-SHOULDER

$1.99

$

Usually ships in 3-6 days

0

16

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

17

Toro 133-1969

COVER-BELT, FRONT

$8.49

$

In Stock, only 2 left!

0

31

Toro 137-9154

DECAL-DECK

$4.99

$

Usually ships in 3-6 days

0

32

Toro 137-9155

DECAL-COVER

$3.49

$

Usually ships in 3-6 days

0
