20340 - Toro 22" Recycler Walk-Behind Mower with SmartStow (SN: 400000000 - 401499999) REAR WHEEL AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower with SmartStow

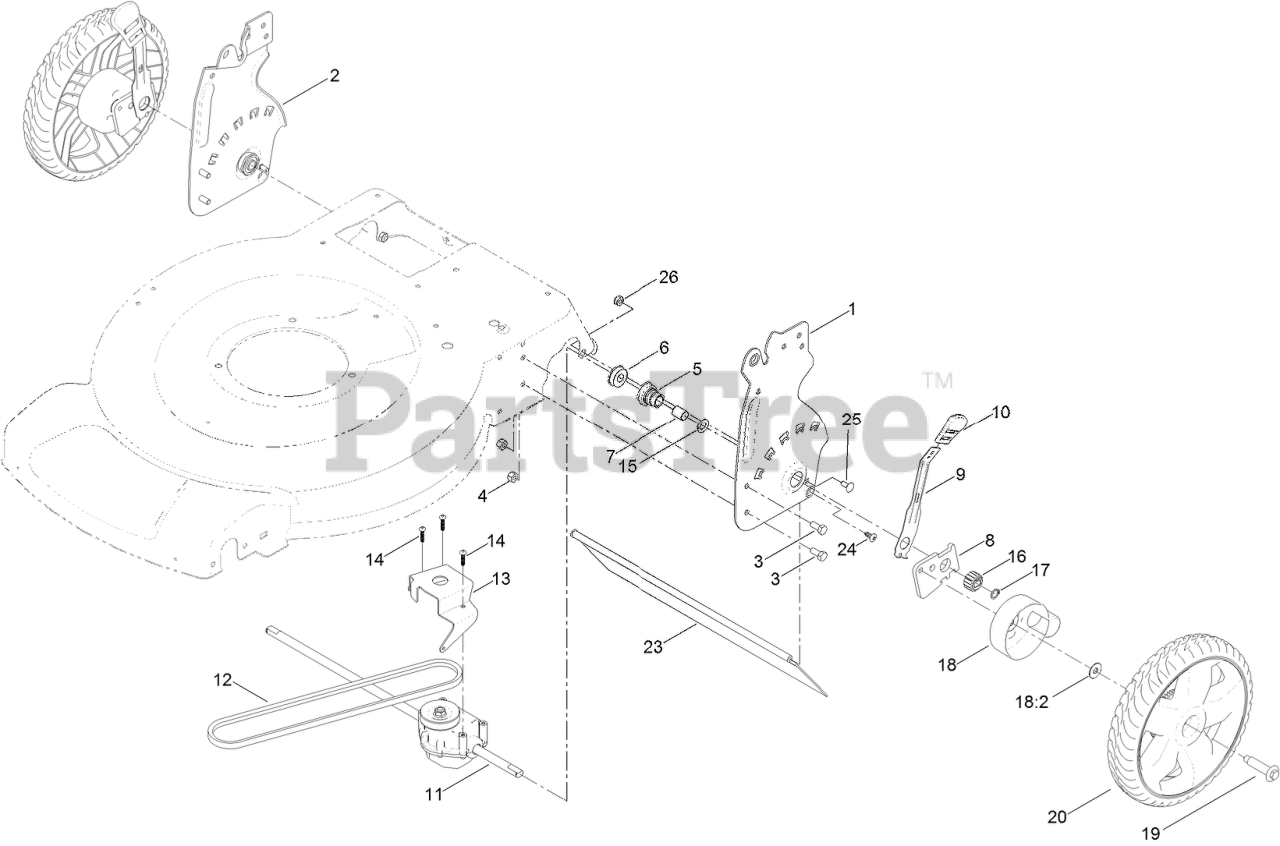

REAR WHEEL AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

  • Title

1

Toro 136-5887-03

PLATE-HOC, RWD (LH)

$24.99

$

Usually ships in 3-6 days

0

2

Toro 136-5888-03

PLATE-HOC, RWD (RH)

$24.99

$

Usually ships in 3-6 days

0

3

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

5

Toro 108-9779

RETAINER-BUSHING, HOC

$13.99

$

In Stock, only 1 left!

0

6

Toro 104-8699

BEARING-BALL

$4.49

$

In Stock, Qty 20+

0

7

Toro 108-9782

BUSHING-SLEEVE

$5.49

$

In Stock, Qty 12

0

8

Toro 132-4459

ARM-PIVOT, REAR
(Superseded to 136-9090)

$12.99

$

Usually ships in 3-6 days

0

9

Toro 132-4486

ARM-SPRING

$14.99

$

Usually ships in 3-6 days

0

10

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

11

Toro 131-9696

TRANSMISSION
(Superseded to 137-4825)

$113.99

$

In Stock, only 1 left!

0

12

Toro 91-2258

BELT-V

$22.99

$

In Stock, Qty 13

0

13

Toro 132-4481-01

BRACKET-TRANSMISSION

$14.99

$

Usually ships in 3-6 days

0

14

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 10

0

15

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

16

Toro 131-5399

GEAR-PINION, 15T

$5.49

$

In Stock, Qty 20+

0

17

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

18

Toro 132-4480

COVER-GEAR
(Superseded to 136-9059)

$5.99

$

In Stock, only 1 left!

0

18:2

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 10

0

19

Toro 614650

BOLT-SHOULDER

$4.49

$

Usually ships in 3-6 days

0

20

Toro 132-4458

11 INCH WHEEL AND GEAR ASM
(Superseded to 137-4843)

$47.99

$

In Stock, only 2 left!

0

23

Toro 120-7012

SHIELD-TRAILING
(Superseded to 139-6604)

$16.99

$

In Stock, only 1 left!

0

24

Toro 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

25

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

26

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0
