20340 - Toro 22" Recycler Walk-Behind Mower with SmartStow (SN: 316000001 - 316999999) (2016) ENGINE AND BLADE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower with SmartStow

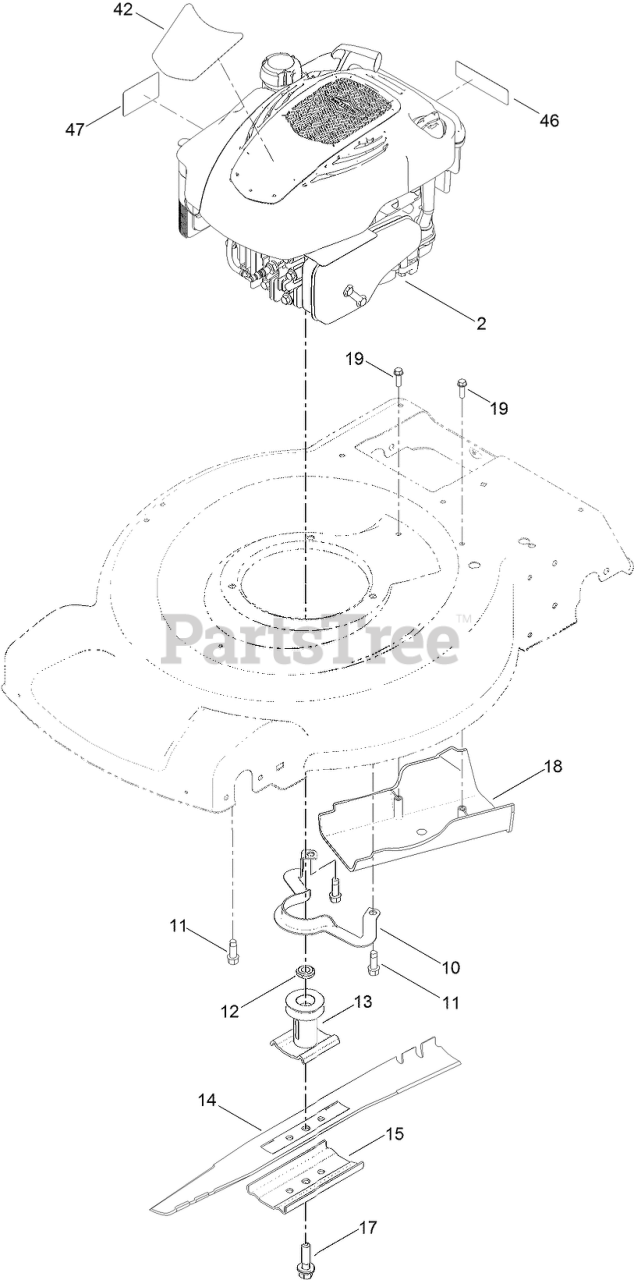

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

2

ENGINE-BRIGGS, 104M020131F1

Note: Not serviced separately

$

$

Not available

2

ENGINE-BRIGGS, 104M020131F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

10

Toro 105-3030-03

Guide-Belt

$14.99

$

In Stock, only 2 left!

0

11

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

12

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, Qty 20+

0

13

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, Qty 19

0

14

Toro 131-4547-03

BLADE-22 INCH

$22.99

$

In Stock, Qty 20+

0

15

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 20+

0

17

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

18

Toro 114-7937

COVER-BELT

$19.99

$

In Stock, only 4 left!

0

19

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

42

Toro 130-2397

DECAL-SHROUD

$12.99

$

Usually ships in 3-6 days

0

46

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

47

Toro 130-6662

DECAL-FUEL LEVEL

$3.99

$

Usually ships in 3-6 days

0
