20339 C - Toro 22" Recycler Walk-Behind Mower with SmartStow (SN: 315000001 - 315999999) (2015) ENGINE AND BLADE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower with SmartStow

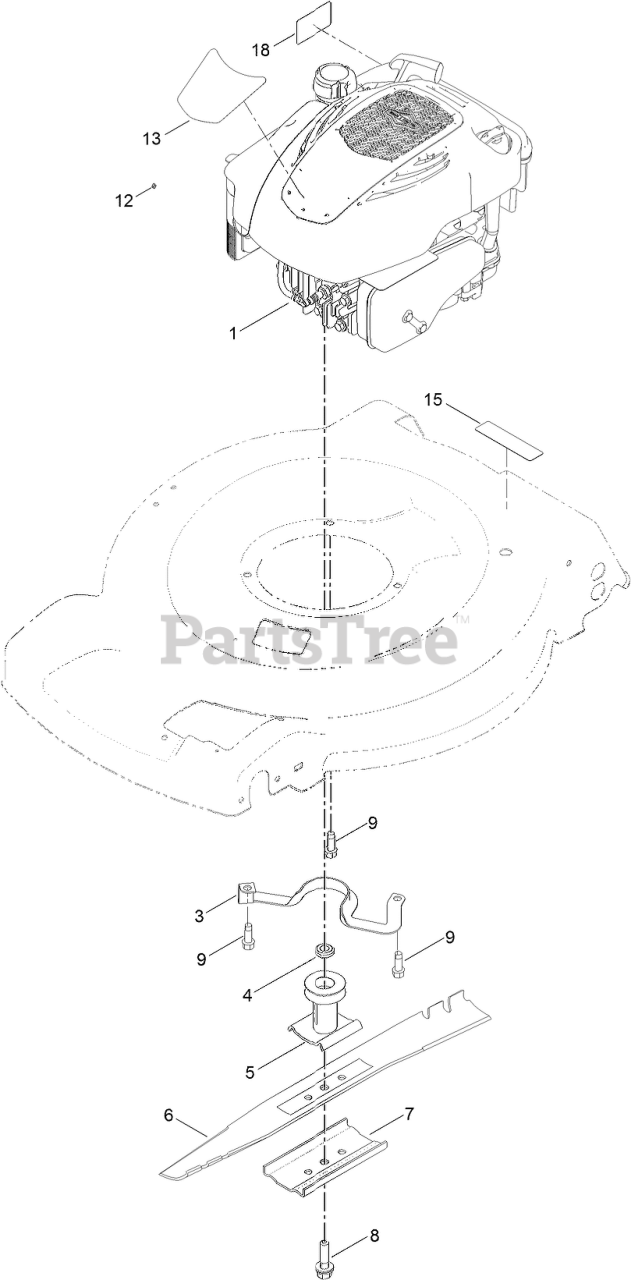

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-BRIGGS, 104M020131F1

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS, 104M020131F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

3

Toro 105-3031-03

Guide-Belt

$13.99

$

In Stock, only 1 left!

0

4

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

5

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

6

Toro 131-4547-03

BLADE-22 INCH

$22.99

$

In Stock, Qty 5

0

7

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

8

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

9

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

12

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

13

Toro 130-2397

DECAL-SHROUD

$12.99

$

Usually ships in 3-6 days

0

15

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

18

Toro 130-6662

DECAL-FUEL LEVEL

$3.99

$

Usually ships in 3-6 days

0
