20337 - Toro 22" Recycler Walk-Behind Mower (SN: 315000001 - 315999999) (2015) TRANSMISSION AND REAR WHEEL DRIVE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

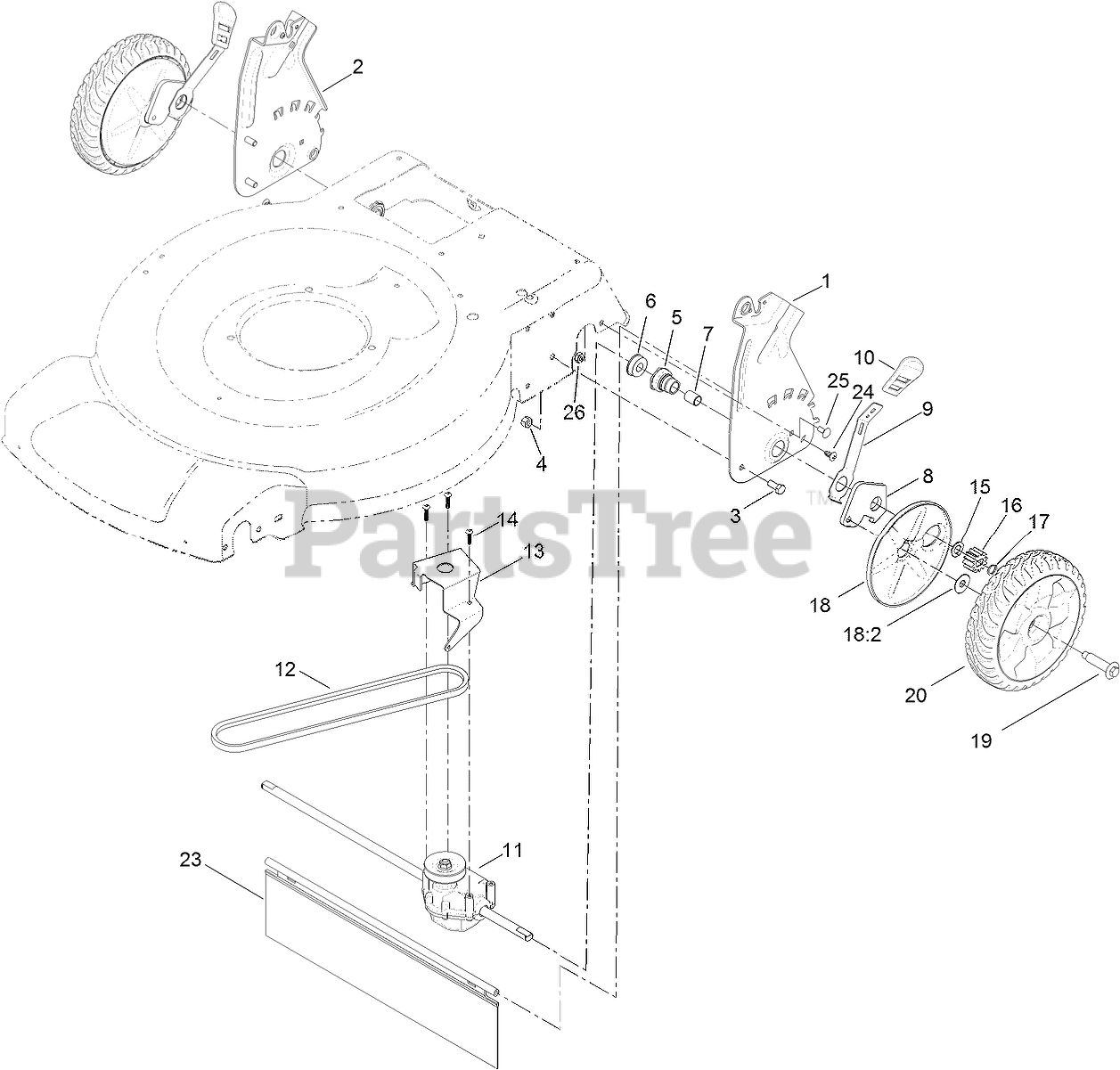

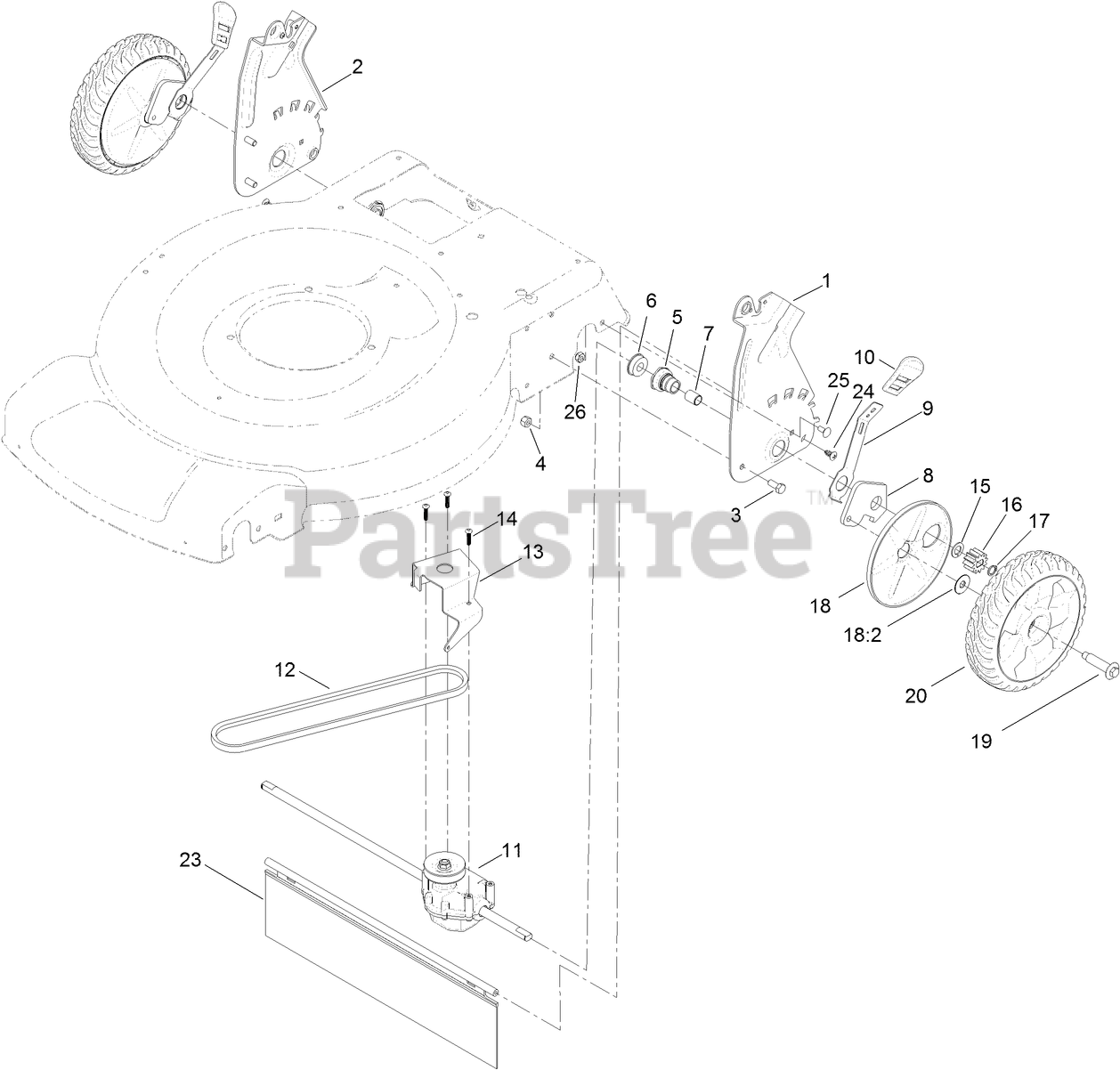

TRANSMISSION AND REAR WHEEL DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 127-6877-03

PLATE-REAR, LH (HOC)

$27.99

$

In Stock, only 3 left!

0

2

Toro 127-6878-03

PLATE-REAR, RH (HOC)

$27.99

$

In Stock, only 1 left!

0

3

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

5

Toro 108-9779

RETAINER-BUSHING, HOC

$13.99

$

In Stock, only 1 left!

0

6

Toro 104-8699

BEARING-BALL

$4.49

$

In Stock, Qty 20+

0

7

Toro 108-9782

BUSHING-SLEEVE

$5.49

$

In Stock, Qty 12

0

8

Toro 108-9781

ARM-PIVOT, REAR

$8.99

$

In Stock, only 4 left!

0

9

Toro 108-9780

ARM-SPRING

$10.99

$

In Stock, only 3 left!

0

10

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

11

Toro 121-9178

TRANSMISSION ASM

$113.99

$

In Stock, only 1 left!

0

12

Toro 115-4669

BELT-V
(Superseded to 115-4669-SL)

$25.99

$

Usually ships in 3-6 days

0

13

Toro 114-7977-03

BRACKET-TRANSMISSION

$13.99

$

In Stock, only 1 left!

0

14

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 10

0

15

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

16

Toro 110-9417

GEAR-PINION, 15T
(Superseded to 131-5399)

$5.49

$

In Stock, Qty 20+

0

17

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

18

Toro 110-1792

WHEEL COVER ASM
(Superseded to 127-6840)

$5.99

$

In Stock, Qty 20+

0

18:2

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 10

0

19

Toro 614650

BOLT-SHOULDER

$4.49

$

Usually ships in 3-6 days

0

20

Toro 119-3822

8 INCH WHEEL GEAR ASM
(Superseded to 137-4835)

$34.99

$

In Stock, Qty 20+

0

23

Toro 120-7012

SHIELD-TRAILING
(Superseded to 139-6604)

$16.99

$

In Stock, only 1 left!

0

24

Toro 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

25

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

26

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0
