20337 - Toro 22" Recycler Walk-Behind Mower (SN: 315000001 - 315999999) (2015) HANDLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

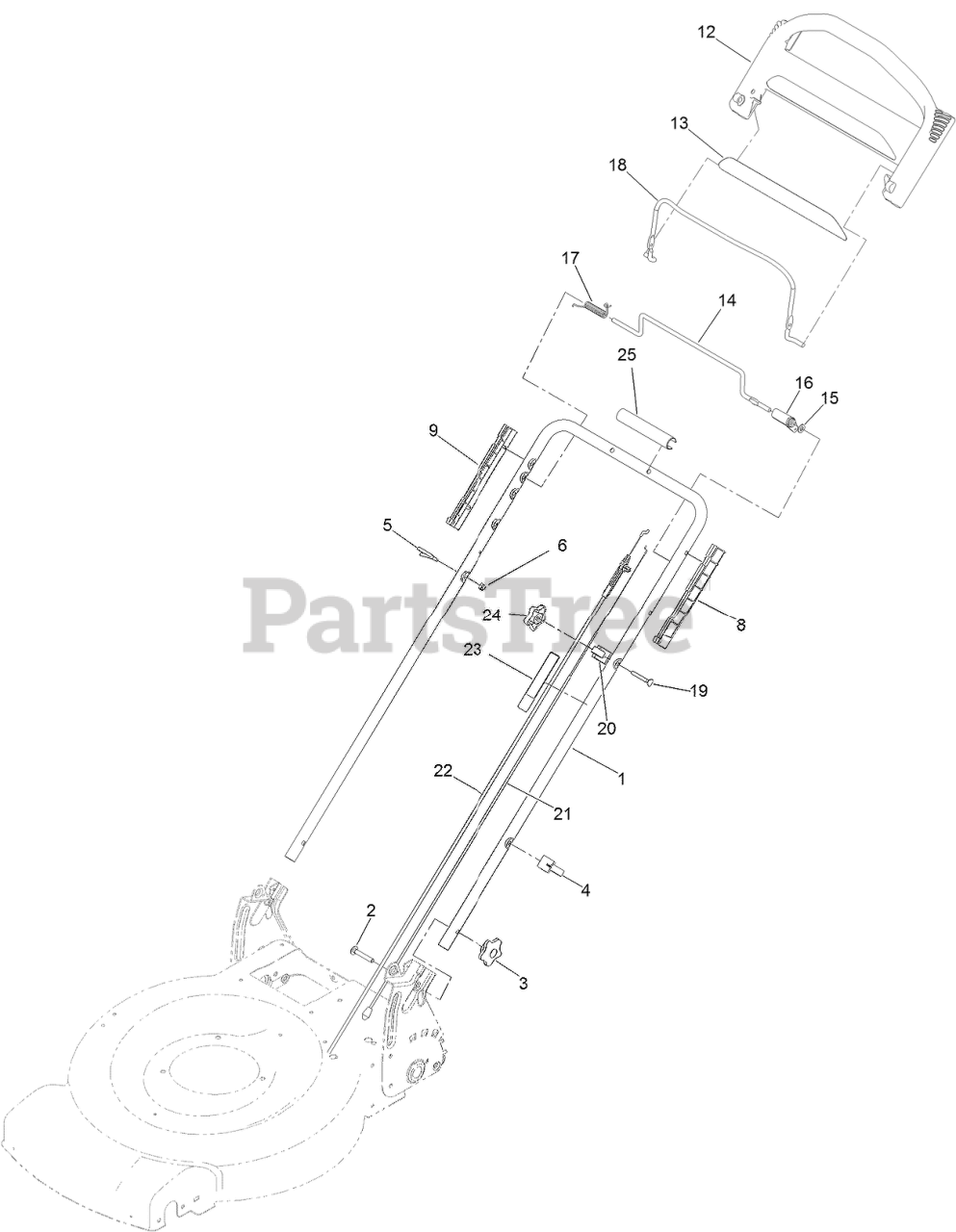

HANDLE ASSEMBLY Parts Diagram

  • Title
1

$56.99

$

In Stock, only 1 left!

0

2

Toro 3230-6

Screw-CARR

$1.49

$

In Stock, Qty 11

0

3

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, only 3 left!

0

4

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 12

0

5

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

6

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

8

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 3 left!

0

9

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, only 3 left!

0

12

Toro 104-8678

HANDLE-CONTROL

$81.99

$

In Stock, only 1 left!

0

13

$8.99

$

In Stock, only 1 left!

0

14

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$16.99

$

In Stock, only 1 left!

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 99-1589

LEVER-TRACTION

$7.49

$

In Stock, Qty 15

0

17

Toro 121-9118

Spring-Torsion
(Superseded to 136-7166)

$2.99

$

In Stock, Qty 10

0

18

Toro 104-8679-03

Bail-Brake
(Superseded to 131-0880-03)

$15.99

$

Usually ships in 3-6 days

0

19

Toro 95-4453

SCREW

$3.49

$

In Stock, only 2 left!

0

20

Toro 99-5239

ANCHOR-CABLE
(Superseded to 136-5864)

$2.99

$

In Stock, Qty 12

0

21

Toro 115-8435

CABLE-TRACTION

$33.99

$

In Stock, Qty 12

0

22

Toro 131-4530

CABLE-BRAKE

$29.99

$

In Stock, only 1 left!

0

23

Toro 131-0894

DECAL-TRACTION, ADJUST
(Superseded to 132-4470)

$1.99

$

In Stock, only 1 left!

0

24

Toro 131-0897

KNOB-HANDLE, LOCKING

$4.49

$

In Stock, Qty 8

0

25

Toro 131-4551

HANDLE-COVER

$1.49

$

Usually ships in 3-6 days

0
