20337 HD - Toro 22" Recycler Walk-Behind Mower (SN: 400000000 - 404319999) Handle Assembly Parts Diagram

22" Recycler Walk-Behind Mower

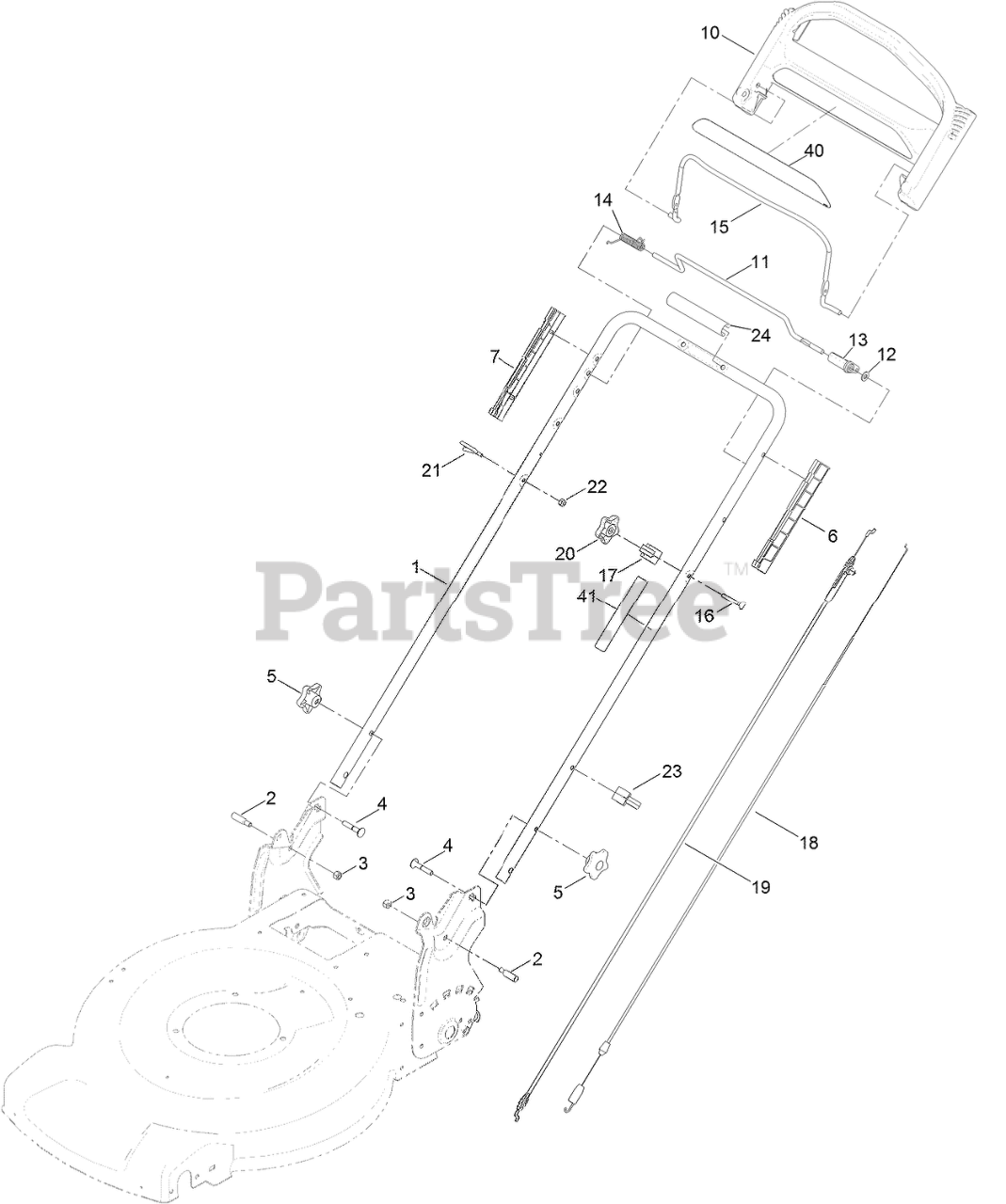

Handle Assembly Parts Diagram

  • Title
1

$56.99

$

In Stock, only 1 left!

0

2

Toro 131-4591

BOLT-SHOULDER

$1.99

$

In Stock, Qty 8

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

4

Toro 131-9663

SCREW-CARR

$0.99

$

In Stock, Qty 20+

0

5

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 5

0

6

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 3 left!

0

7

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, only 3 left!

0

10

Toro 104-8678

HANDLE-CONTROL

$81.99

$

In Stock, only 1 left!

0

11

Toro 99-1588

See Supercession: 136-7150
(Superseded to 136-7150)

$16.99

$

In Stock, only 1 left!

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 99-1589

LEVER-TRACTION

$7.49

$

In Stock, Qty 15

0

14

Toro 121-9118

See Supercession: 136-7166
(Superseded to 136-7166)

$2.99

$

In Stock, Qty 10

0

15

Toro 131-0880-03

BAIL-BRAKE

$15.99

$

Usually ships in 3-6 days

0

16

Toro 95-4453

SCREW

$3.49

$

In Stock, only 2 left!

0

17

Toro 136-5864

ANCHOR-CABLE

$2.99

$

In Stock, Qty 12

0

18

Toro 115-8435

CABLE-TRACTION

$33.99

$

In Stock, Qty 13

0

19

Toro 131-4530

CABLE-BRAKE

$29.99

$

In Stock, only 1 left!

0

20

Toro 131-0897

KNOB-HANDLE, LOCKING

$4.49

$

In Stock, Qty 8

0

21

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

22

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

23

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 12

0

24

Toro 131-4551

HANDLE-COVER

$1.49

$

Usually ships in 3-6 days

0

40

$8.99

$

In Stock, only 1 left!

0

41

Toro 132-4470

DECAL-TRACTION, ADJUST

$1.99

$

In Stock, only 1 left!

0
