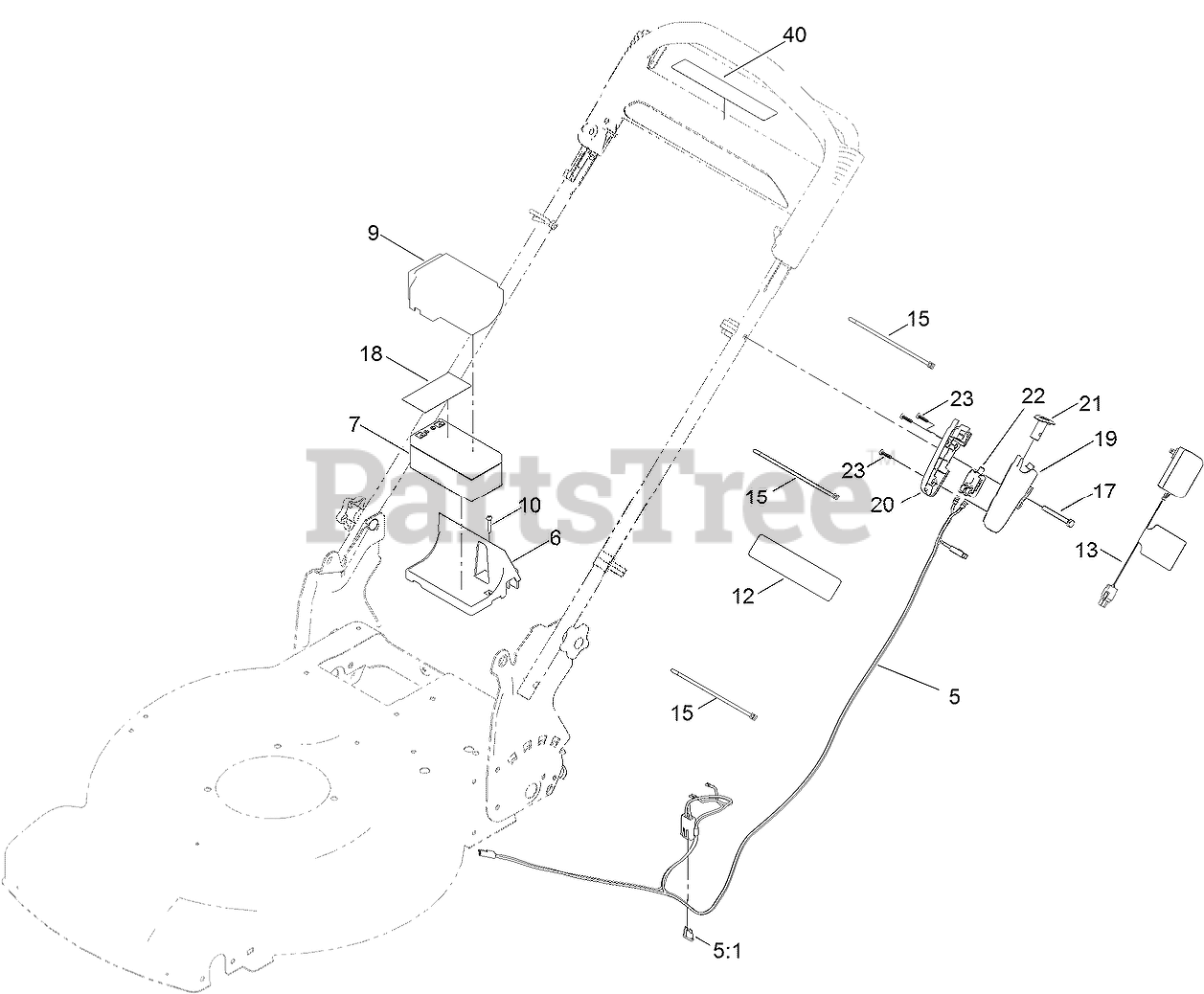

20334 - Toro 22" Recycler Walk-Behind Mower (SN: 406577037 - 999999999) Electrical Assembly Parts Diagram

22" Recycler Walk-Behind Mower

Electrical Assembly Parts Diagram

  • Title

5

Toro 125-5024

HARNESS-WIRE

$101.99

$

In Stock, only 1 left!

0

5:1

Toro 99-6124

FUSE-40 AMP

$5.49

$

In Stock, Qty 8

0

6

Toro 114-7936

TRAY-BATTERY

$11.99

$

Usually ships in 3-6 days

0

7

Toro 106-8397

BATTERY-WET

$79.99

$

Usually ships in 3-6 days

0

9

Toro 120-3329

COVER-BATTERY

$6.49

$

In Stock, only 2 left!

0

10

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 10

0

12

Toro 140-4357

DECAL-BATTERY CHARGING

$10.99

$

Usually ships in 3-6 days

0

13

Toro 136-9126

CHARGER, BATTERY (12V)

$41.99

$

In Stock, only 4 left!

0

15

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

17

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 8

0

18

Toro 112-8763

DECAL-TERMINAL, BATTERY

$3.99

$

Usually ships in 3-6 days

0

19

Toro 133-8160

HOUSING-SWITCH, LH

$1.99

$

In Stock, Qty 5

0

20

Toro 133-8161

HOUSING-SWITCH, RH

$1.99

$

In Stock, only 2 left!

0

21

Toro 125-2470

BUTTON-SWITCH

$2.49

$

In Stock, Qty 11

0

22

Toro 121-9173

SWITCH-PUSH BUTTON

$23.99

$

In Stock, only 1 left!

0

23

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

40

Toro 133-1900

DECAL-BUTTON, PUSH

$5.99

$

In Stock, only 2 left!

0
