20334 C - Toro 22" Recycler Walk-Behind Mower (SN: 310000001 - 310999999) (2010) DECK, SIDE CHUTE AND REAR DOOR ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

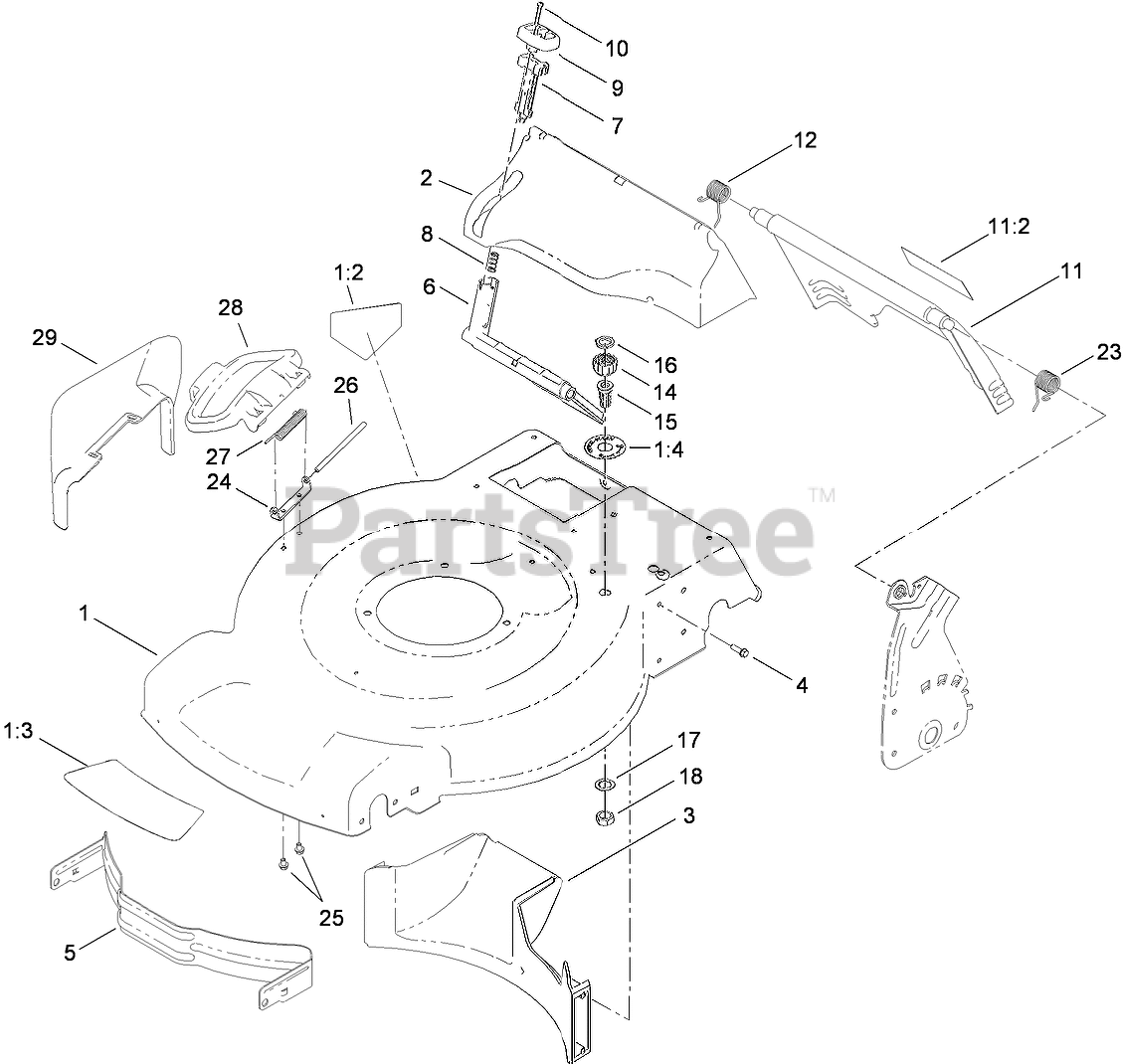

DECK, SIDE CHUTE AND REAR DOOR ASSEMBLY Parts Diagram

  • Title
1

Toro 117-1084

HOUSING ASM
(Superseded to 130-2389)

$278.99

$

Usually ships in 3-6 days

0

1:2

Toro 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 11

0

1:3

Toro 115-4676

DECAL-RECYCLER

$9.49

$

In Stock, Qty 8

0

1:4

Toro 112-8867

DECAL-PORT, WASHOUT
(Superseded to 137-9196)

$2.49

$

In Stock, only 2 left!

0

2

Toro 114-7957

CHUTE-RECYCLE
(Superseded to 136-5881)

$20.99

$

Usually ships in 3-6 days

0

3

Toro 114-7961

BAFFLE-REAR
(Superseded to 139-8982)

$15.99

$

In Stock, Qty 20+

0

4

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

5

Toro 114-7963-01

BAFFLE-FRONT

$37.99

$

In Stock, Qty 20+

0

6

Toro 114-7960

DEFLECTOR-RECYCLE

$14.99

$

Usually ships in 3-6 days

0

7

Toro 114-7959

LATCH-RECYCLE

$5.49

$

Usually ships in 3-6 days

0

8

Toro 117-1031

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

9

Toro 114-7958

KNOB-RECYCLE

$3.99

$

Usually ships in 3-6 days

0

10

Toro 32104-120

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

11

Toro 114-7992

REAR DOOR ASM

$34.99

$

In Stock, only 1 left!

0

11:2

Toro 114-7982

DECAL-WARNING

$5.49

$

Usually ships in 3-6 days

0

12

Toro 114-7924

SPRING-TORSION

$3.49

$

In Stock, Qty 20+

0

14

Toro 112-6401

COUPLING-HOSE, WASHOUT PORT

$2.99

$

In Stock, Qty 11

0

15

Toro 112-6400

PORT-WASHOUT

$4.99

$

In Stock, Qty 11

0

16

Toro 112-6438

WASHER-SEAL, WASHOUT PORT

$1.99

$

In Stock, Qty 13

0

17

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

18

Toro 3218-6

NUT-JAM

$6.99

$

In Stock, Qty 20+

0

23

Toro 115-2859

SPRING-TORSION

$5.49

$

In Stock, Qty 11

0

24

Toro 112-6416

BRACKET-COVER

$2.99

$

In Stock, Qty 20+

0

25

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

26

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 20+

0

27

Toro 99-5293

SPRING-TORSION

$10.99

$

In Stock, Qty 20+

0

28

Toro 115-8449

DEFLECTOR-SIDE

$9.49

$

In Stock, Qty 20+

0

29

Toro 115-8447

CHUTE-DISCHARGE, SIDE

$17.99

$

In Stock, Qty 20+

0
