20333 - Toro 22" Recycler Walk-Behind Mower (SN: 316000001 - 316999999) (2016) HANDLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

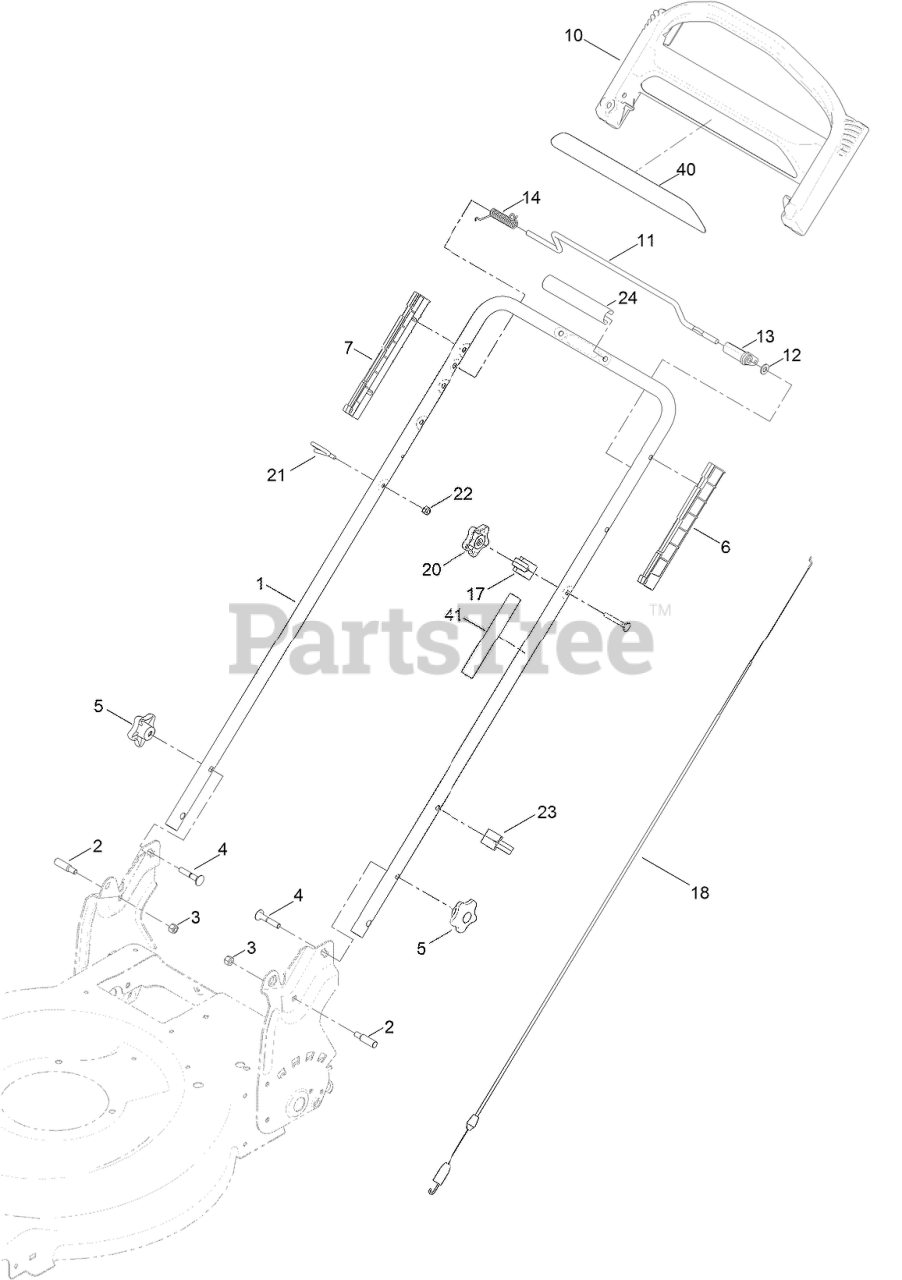

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 131-9695-05

HANDLE

$98.99

$

In Stock, only 1 left!

0

2

Toro 131-4591

BOLT-SHOULDER

$1.99

$

In Stock, Qty 8

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 131-9663

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

5

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 15

0

6

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 3 left!

0

7

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, only 2 left!

0

10

Toro 104-8678

HANDLE-CONTROL

$83.99

$

In Stock, only 1 left!

0

11

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$17.99

$

In Stock, only 1 left!

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 99-1589

LEVER-TRACTION

$7.99

$

In Stock, Qty 15

0

14

Toro 121-9118

Spring-Torsion
(Superseded to 136-7166)

$3.49

$

In Stock, Qty 6

0

17

Toro 99-5239

ANCHOR-CABLE
(Superseded to 136-5864)

$2.99

$

In Stock, Qty 7

0

18

Toro 115-8435

CABLE-TRACTION

$35.99

$

In Stock, Qty 9

0

20

Toro 131-0897

KNOB-HANDLE, LOCKING

$4.49

$

In Stock, Qty 6

0

21

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

22

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

23

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 7

0

24

Toro 131-4551

HANDLE-COVER

$1.49

$

Usually ships in 3-6 days

0

40

Toro 117-1019

DECAL

$9.99

$

In Stock, only 1 left!

0

41

Toro 132-4470

DECAL-TRACTION, ADJUST

$2.49

$

In Stock, only 1 left!

0
