20333 - Toro 22" Recycler Walk-Behind Mower (SN: 313000001 - 313999999) (2013) CONTROL ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

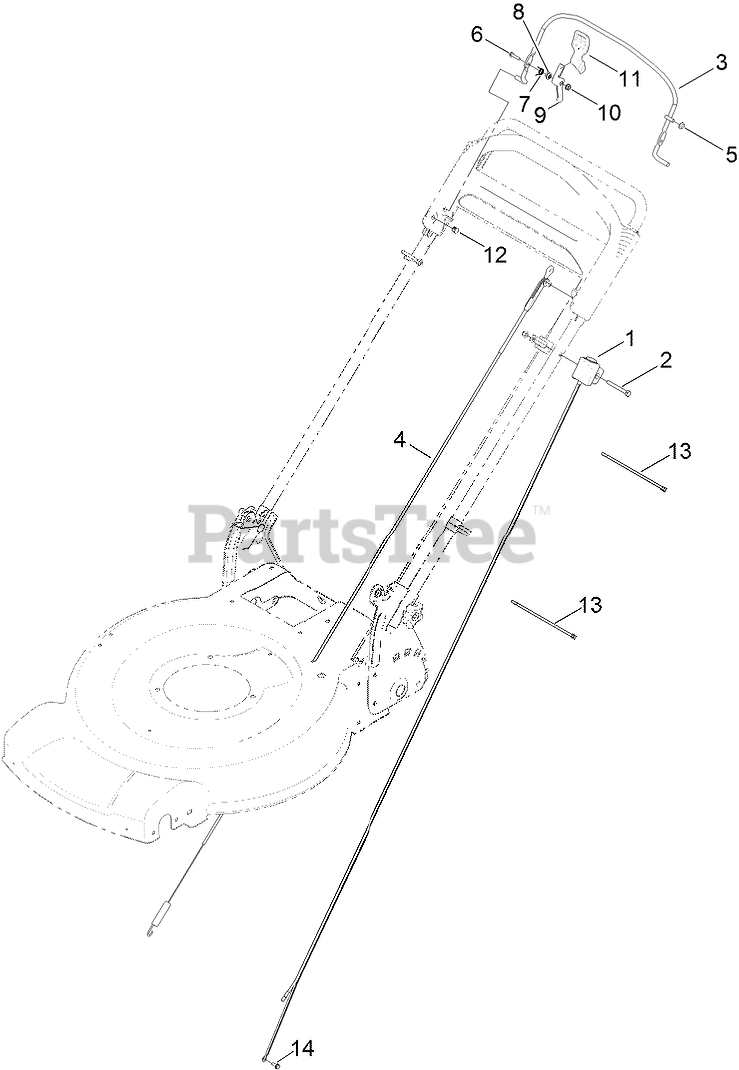

CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 117-5975

SWITCH HOUSING ASM

$19.99

$

In Stock, Qty 20+

0

2

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 8

0

3

Toro 108-3788-03

BAIL-BRAKE

$43.99

$

In Stock, only 1 left!

0

4

Toro 115-8439

CABLE-BRAKE

$30.99

$

In Stock, Qty 8

0

5

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

6

Toro 106-9169

SCREW-HWH

$7.99

$

In Stock, only 3 left!

0

7

Toro 107-7462

SPRING-TORSION

$8.49

$

In Stock, only 1 left!

0

8

Toro 107-7463

SPACER

$5.49

$

In Stock, Qty 15

0

9

Toro 106-6802

LEVER
(Superseded to 138-3220)

$2.99

$

In Stock, Qty 9

0

10

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

11

Toro 112-8884

KNOB

$6.49

$

In Stock, Qty 12

0

12

Toro 104-9368

Plug-Dome

$0.99

$

In Stock, only 4 left!

0

13

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

14

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0
