20333 C - Toro 22" Recycler Walk-Behind Mower (SN: 311000001 - 311999999) (2011) TRANSMISSION AND REAR WHEEL DRIVE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

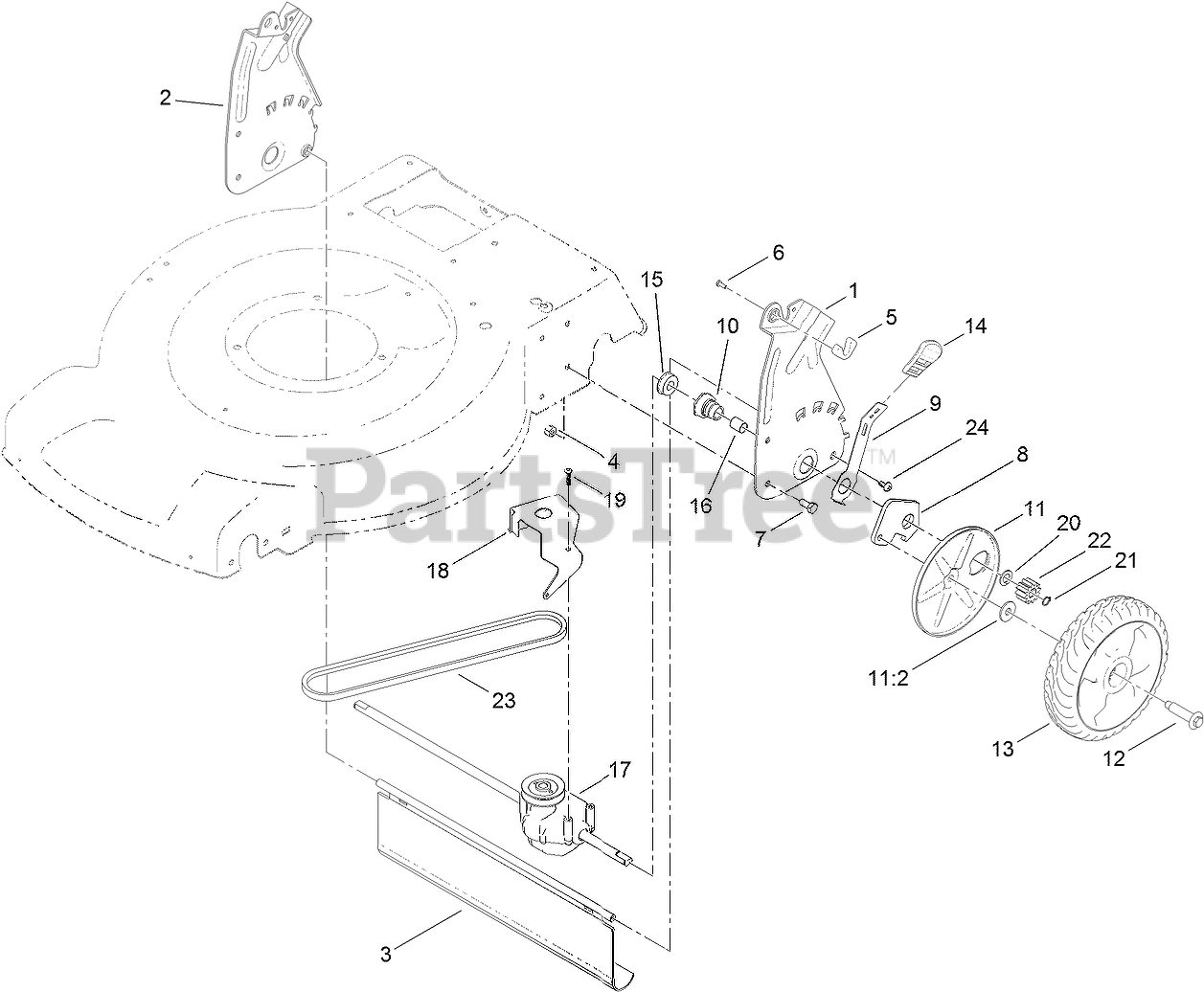

TRANSMISSION AND REAR WHEEL DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 114-7955-03

PLATE-REAR, LH (HOC)
(Superseded to 127-6877-03)

$28.99

$

In Stock, only 4 left!

0

2

Toro 114-7956-03

PLATE-REAR, RH (HOC)
(Superseded to 127-6878-03)

$28.99

$

In Stock, only 1 left!

0

3

Toro 115-2893

SHIELD-TRAILING
(Superseded to 139-6604)

$17.99

$

In Stock, Qty 6

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 115-8406

ANCHOR-BAG

$3.99

$

In Stock, only 2 left!

0

6

Toro 105-9437

Screw-PPH

$0.99

$

In Stock, Qty 8

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

8

Toro 108-9781

ARM-PIVOT, REAR

$20.99

$

In Stock, only 3 left!

0

9

Toro 108-9780

ARM-SPRING

$10.99

$

In Stock, only 3 left!

0

10

Toro 108-9779

RETAINER-BUSHING, HOC

$13.99

$

In Stock, only 2 left!

0

11

Toro 110-1792

WHEEL COVER ASM
(Superseded to 127-6840)

$5.99

$

In Stock, Qty 11

0

11:2

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

12

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 6

0

13

Toro 115-4695

8 INCH WHEEL GEAR ASM
(Superseded to 138-3216)

$36.99

$

In Stock, Qty 7

0

14

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

15

Toro 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 17

0

16

Toro 108-9782

BUSHING-SLEEVE

$5.49

$

In Stock, Qty 7

0

17

Toro 115-4652

TRANSMISSION
(Superseded to 121-9178)

$117.99

$

In Stock, only 1 left!

0

18

Toro 114-7977-03

BRACKET-TRANSMISSION

$13.99

$

In Stock, only 1 left!

0

19

Toro 120-0185

SCREW-PAN HEAD, T20
(Superseded to 108-7476)

$0.99

$

In Stock, Qty 10

0

20

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

21

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

22

Toro 115-4668

GEAR-PINION

$15.99

$

In Stock, only 4 left!

0

23

Toro 115-4669

BELT-V
(Superseded to 115-4669-SL)

$25.99

$

Usually ships in 3-6 days

0

24

Toro 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0
