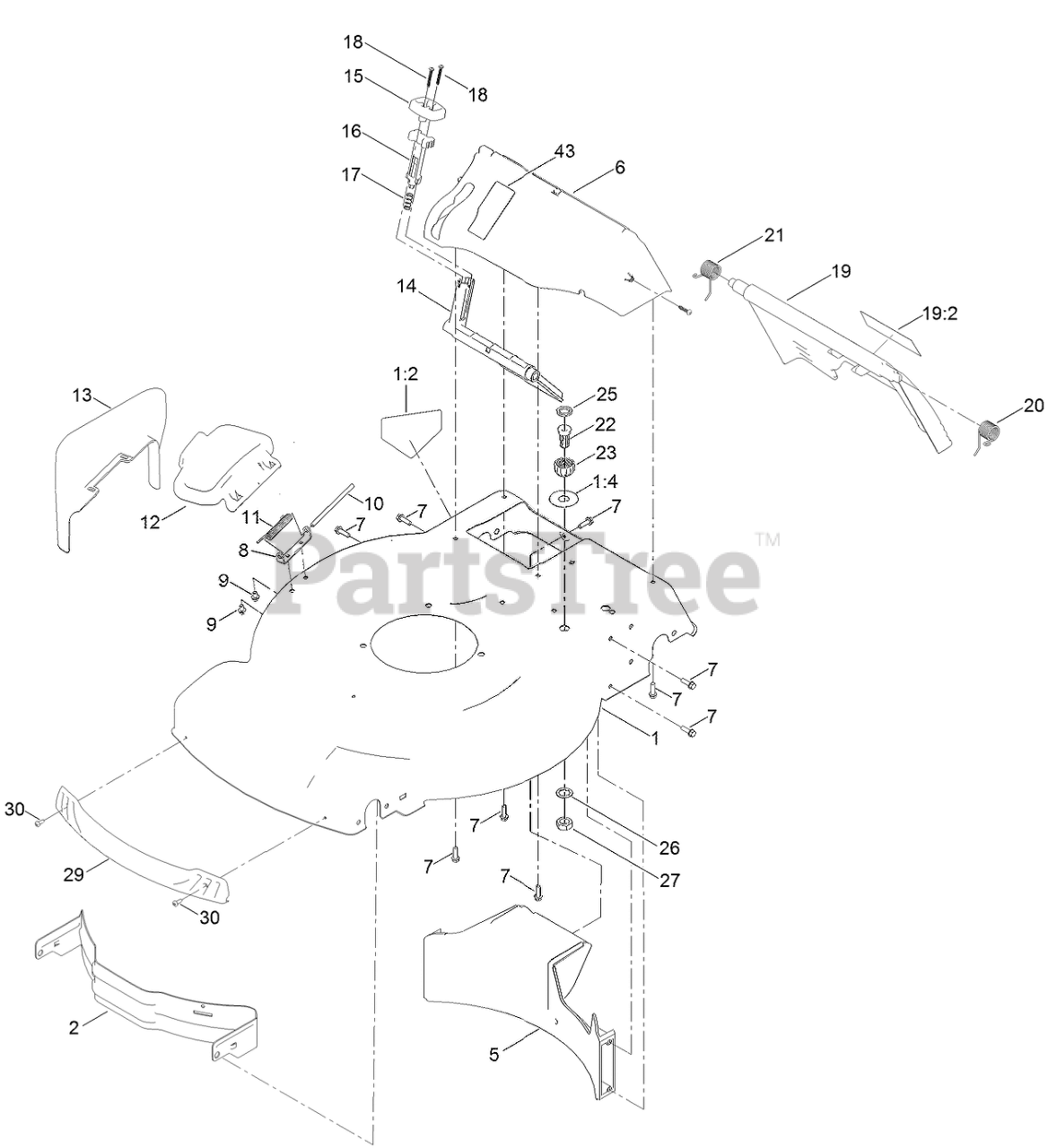

20332 - Toro 22" Recycler Walk-Behind Mower (SN: 404320000 - 406570899) Frame Assembly Parts Diagram

22" Recycler Walk-Behind Mower

Frame Assembly Parts Diagram

  • Title
1

Toro 130-2389

HOUSING ASM

$278.99

$

Usually ships in 3-6 days

0

1:2

Toro 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 11

0

1:4

Toro 137-9196

DECAL-QUICK WASH

$2.49

$

In Stock, only 1 left!

0

2

Toro 114-7963-01

BAFFLE-FRONT

$37.99

$

In Stock, Qty 20+

0

5

Toro 114-7961

BAFFLE-REAR
(Superseded to 139-8982)

$15.99

$

In Stock, Qty 20+

0

6

Toro 136-5882

CHUTE-RECYCLE

$20.99

$

In Stock, only 1 left!

0

7

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

8

Toro 112-6416

BRACKET-COVER

$2.99

$

In Stock, Qty 20+

0

9

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

10

Toro 99-5291

See Supercession: 136-8672
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 20+

0

11

Toro 99-5293

SPRING-TORSION

$10.99

$

In Stock, Qty 20+

0

12

Toro 115-8449

DEFLECTOR-SIDE

$9.49

$

In Stock, Qty 20+

0

13

Toro 115-8447

CHUTE-DISCHARGE, SIDE

$17.99

$

In Stock, Qty 20+

0

14

Toro 114-7960

DEFLECTOR-RECYCLE

$14.99

$

Usually ships in 3-6 days

0

15

Toro 114-7958

KNOB-RECYCLE

$3.99

$

Usually ships in 3-6 days

0

16

Toro 114-7959

LATCH-RECYCLE

$5.49

$

Usually ships in 3-6 days

0

17

Toro 117-1031

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

18

Toro 32104-120

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

19

Toro 137-9139

REAR DOOR ASM

$25.99

$

In Stock, only 3 left!

0

19:2

Toro 131-4514

DECAL-WARNING

$2.49

$

In Stock, only 4 left!

0

20

Toro 115-2859

SPRING-TORSION

$5.49

$

In Stock, Qty 11

0

21

Toro 114-7924

SPRING-TORSION

$3.49

$

In Stock, Qty 20+

0

22

Toro 112-6400

PORT-WASHOUT

$4.99

$

In Stock, Qty 10

0

23

Toro 112-6401

COUPLING-HOSE, WASHOUT PORT

$2.99

$

In Stock, Qty 10

0

25

Toro 112-6438

WASHER-SEAL, WASHOUT PORT

$1.99

$

In Stock, Qty 12

0

26

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

27

Toro 3218-6

NUT-JAM

$6.99

$

In Stock, Qty 20+

0

29

Toro 114-7987

BUMPER

$12.99

$

In Stock, only 3 left!

0

30

Toro 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, Qty 20+

0

43

$2.49

$

Usually ships in 3-6 days

0
