20332 C - Toro 22" Recycler Walk-Behind Mower (SN: 314000001 - 314999999) (2014) HANDLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

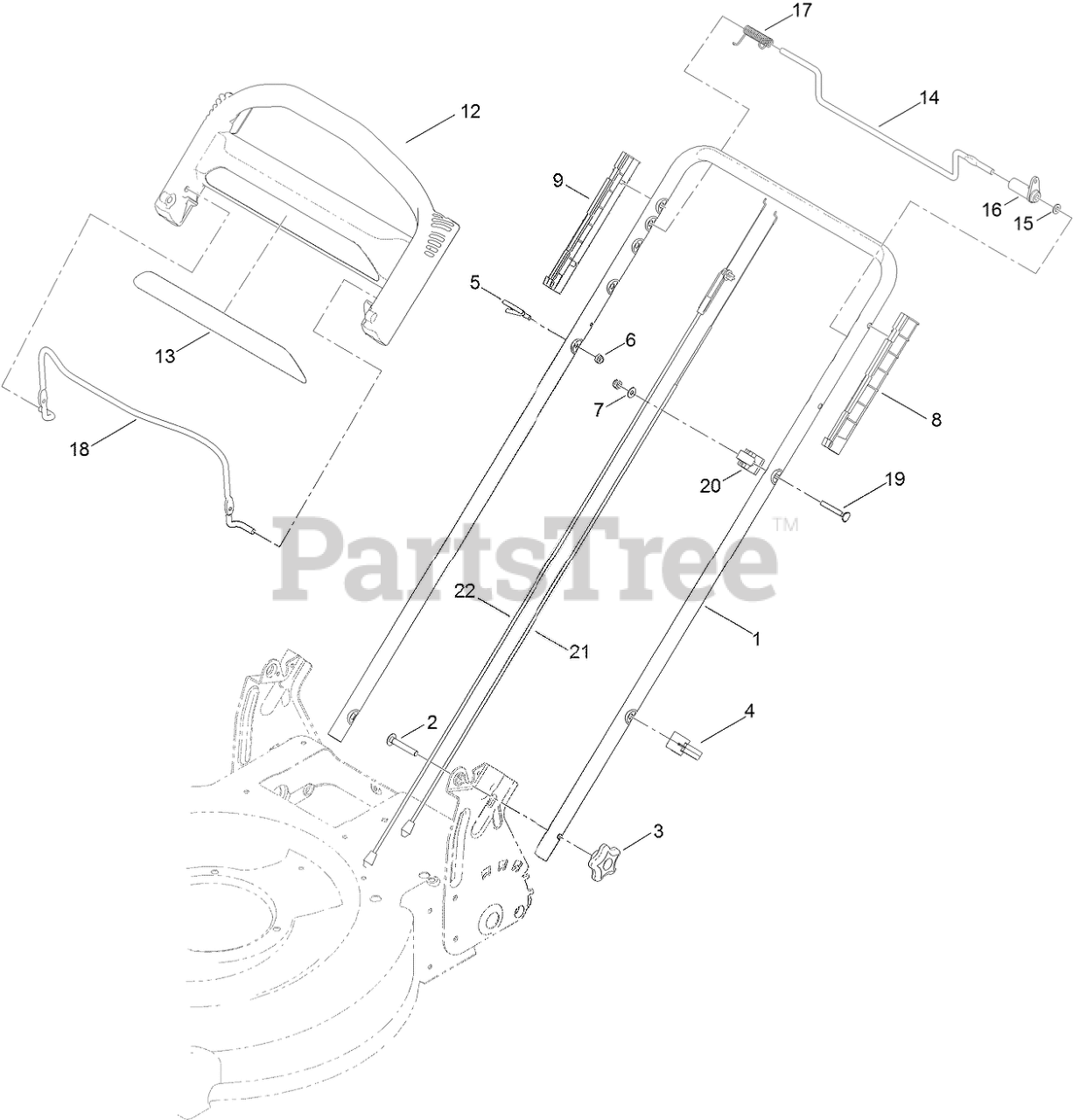

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3810-05

HANDLE

$73.99

$

In Stock, only 4 left!

0

2

Toro 3230-6

Screw-CARR

$1.49

$

In Stock, Qty 11

0

3

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 16

0

4

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 7

0

5

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

6

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

7

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 3 left!

0

9

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, only 2 left!

0

12

Toro 104-8678

HANDLE-CONTROL

$83.99

$

In Stock, only 1 left!

0

13

Toro 117-1019

DECAL

$9.99

$

In Stock, only 1 left!

0

14

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$17.99

$

In Stock, only 1 left!

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 99-1589

LEVER-TRACTION

$7.99

$

In Stock, Qty 15

0

17

Toro 121-9118

Spring-Torsion
(Superseded to 136-7166)

$3.49

$

In Stock, Qty 8

0

18

Toro 104-8679-03

Bail-Brake
(Superseded to 131-0880-03)

$25.99

$

In Stock, only 2 left!

0

19

Toro 95-4453

SCREW

$3.49

$

In Stock, only 1 left!

0

20

Toro 99-5239

ANCHOR-CABLE
(Superseded to 136-5864)

$2.99

$

In Stock, Qty 7

0

21

Toro 115-8435

CABLE-TRACTION

$35.99

$

In Stock, Qty 10

0

22

Toro 115-8437

CABLE-BRAKE

$36.99

$

In Stock, Qty 20+

0
