20332 C - Toro 22" Recycler Walk-Behind Mower (SN: 310000001 - 310999999) (2010) ENGINE AND BLADE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

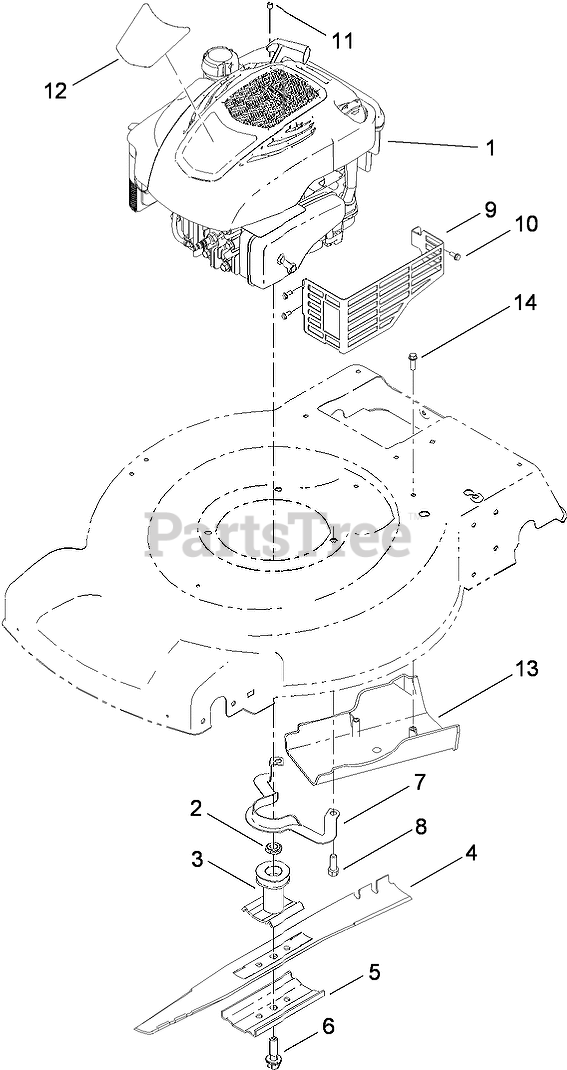

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-BRIGGS, 128T02-3216-B1

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS, 128T02-3216-B1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

2

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

3

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

4

Toro 108-9764-03

BLADE-22 INCH
(Superseded to 131-4547-03)

$22.99

$

In Stock, Qty 5

0

5

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

6

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

7

Toro 105-3030-03

Guide-Belt

$14.99

$

Usually ships in 3-6 days

0

8

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

9

Toro 104-7577-03

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

10

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

11

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

12

Toro 119-0302

DECAL-SHROUD

$5.49

$

In Stock, only 1 left!

0

13

Toro 114-7937

COVER-BELT

$19.99

$

In Stock, only 2 left!

0

14

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0
