20331 - Toro 22" Recycler Walk-Behind Mower (SN: 310000001 - 310006219) (2010) HANDLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

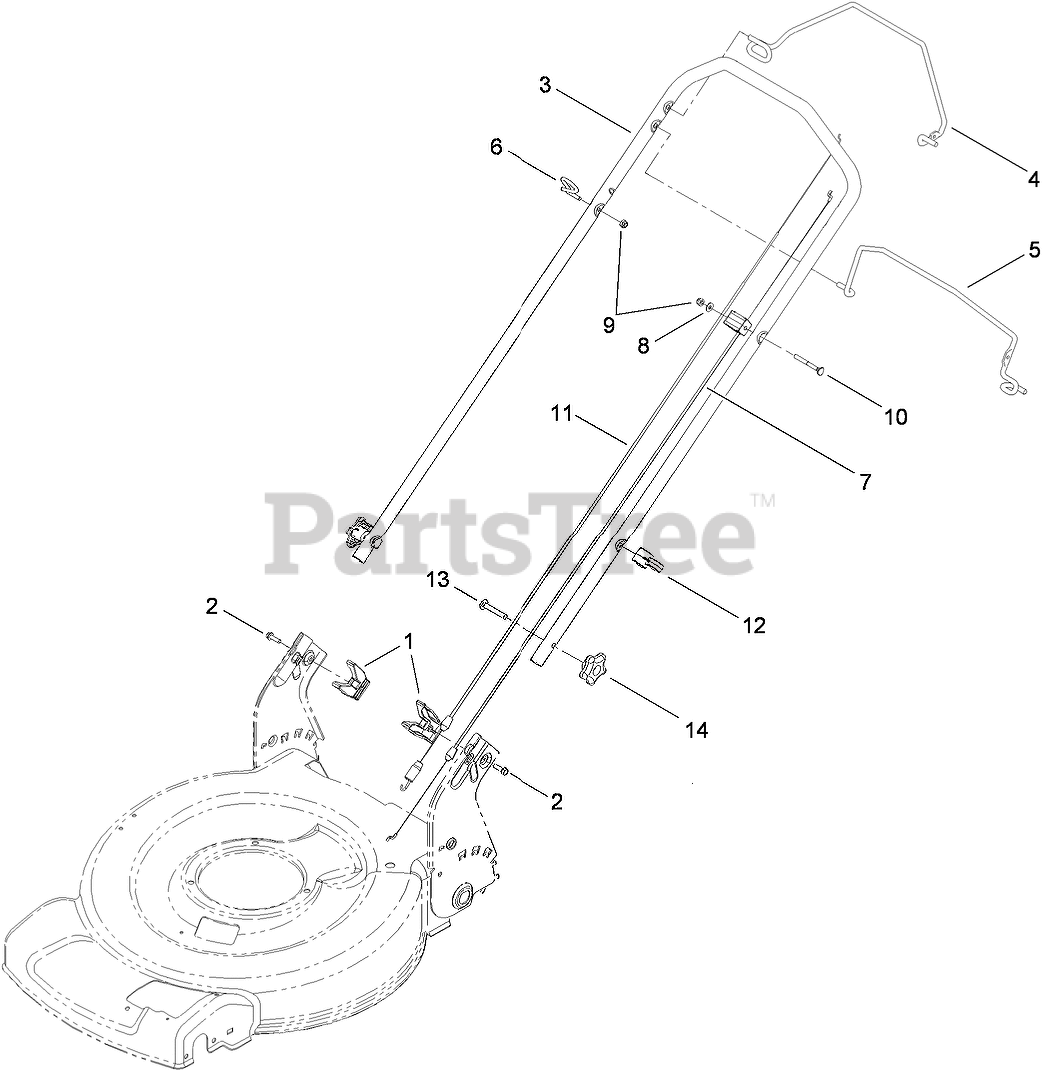

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 115-2866

ANCHOR-BAG

$3.99

$

In Stock, only 2 left!

0

2

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

3

Toro 115-2872-05

HANDLE-CONTOUR

$118.99

$

Usually ships in 3-6 days

0

4

Toro 108-9790-03

BAIL-TRACTION

$

$

Not available

5

Toro 115-4561-03

BAIL-BRAKE

$42.99

$

Usually ships in 3-6 days

0

6

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

7

Toro 115-4579

CABLE-BRAKE, 2 BAIL

$41.99

$

In Stock, only 1 left!

0

8

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

10

Toro 92-2270

SCREW-HANDLE

$8.49

$

In Stock, only 2 left!

0

11

Toro 115-8436

CABLE-TRACTION

$41.99

$

In Stock, only 2 left!

0

12

Toro 106-6805

Guide-Cable
(Superseded to 114-7988)

$2.99

$

In Stock, Qty 7

0

13

Toro 3230-6

Screw-CARR

$1.49

$

In Stock, Qty 11

0

14

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 15

0
