20331 C - Toro 22" Recycler Walk-Behind Mower (SN: 311000001 - 311999999) (2011) TRANSMISSION AND FRONT WHEEL DRIVE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

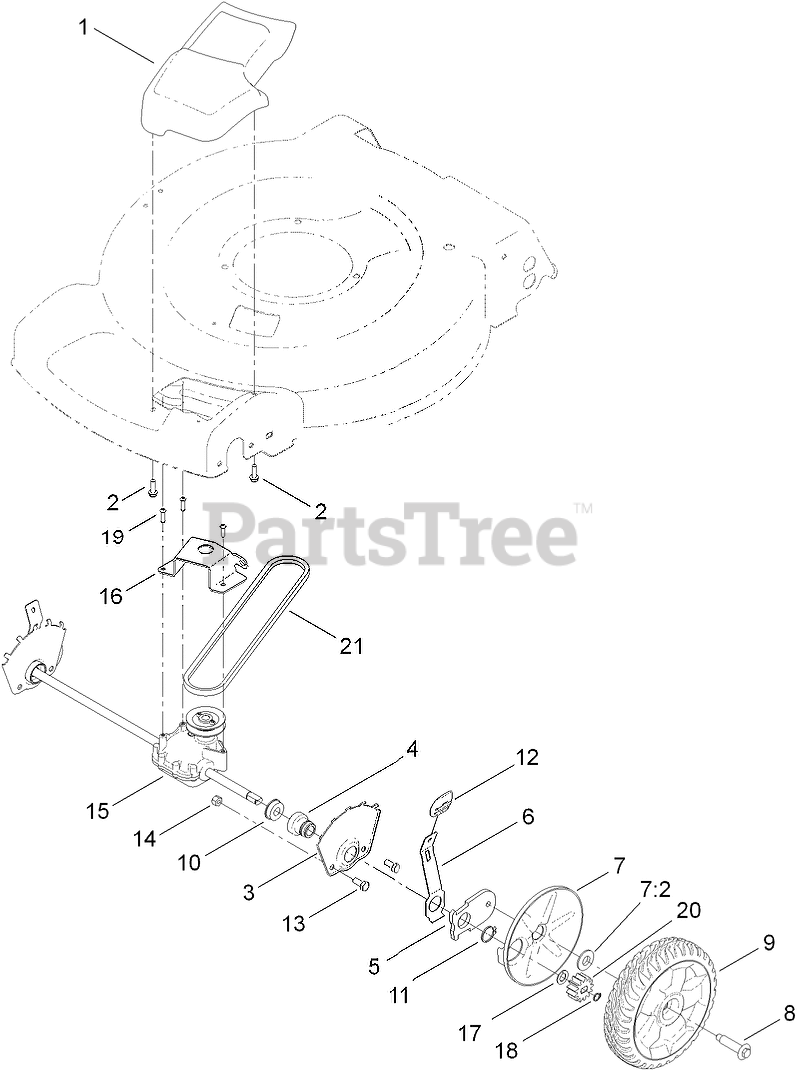

TRANSMISSION AND FRONT WHEEL DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 115-1305

COVER-BELT
(Superseded to 136-5907)

$10.99

$

Usually ships in 3-6 days

0

2

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

3

Toro 115-1956-03

PLATE-HOC, FRONT

$10.99

$

In Stock, Qty 8

0

4

Toro 104-8698

RETAINER-BEARING, HOC

$11.99

$

In Stock, Qty 7

0

5

Toro 105-1807

ARM-PIVOT, FRONT
(Superseded to 137-9128)

$7.49

$

In Stock, only 3 left!

0

6

Toro 105-1809

Arm-Spring

$11.99

$

In Stock, only 2 left!

0

7

Toro 110-1792

WHEEL COVER ASM
(Superseded to 127-6840)

$5.99

$

In Stock, Qty 11

0

7:2

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

8

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 6

0

9

Toro 119-0311

8 INCH WHEEL ASM
(Superseded to 137-4832)

$28.99

$

In Stock, Qty 5

0

10

Toro 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 17

0

11

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, only 4 left!

0

12

Toro 105-3042

Knob-Lever, HOC

$4.49

$

In Stock, Qty 5

0

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 115-1992

TRANSMISSION ASM
(Superseded to 137-4823)

$110.99

$

In Stock, only 1 left!

0

16

Toro 114-7978-03

BRACKET-TRANSMISSION

$11.99

$

In Stock, only 1 left!

0

17

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

18

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

19

Toro 120-0185

SCREW-PAN HEAD, T20
(Superseded to 108-7476)

$0.99

$

In Stock, Qty 7

0

20

Toro 115-4665

GEAR-PINION, 13T
(Superseded to 131-0896)

$6.99

$

In Stock, Qty 20+

0

21

Toro 117-1018

V-BELT

$18.99

$

Usually ships in 3-6 days

0
