20330 C - Toro 22" Recycler Walk-Behind Mower (SN: 310000001 - 310999999) (2010) HANDLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

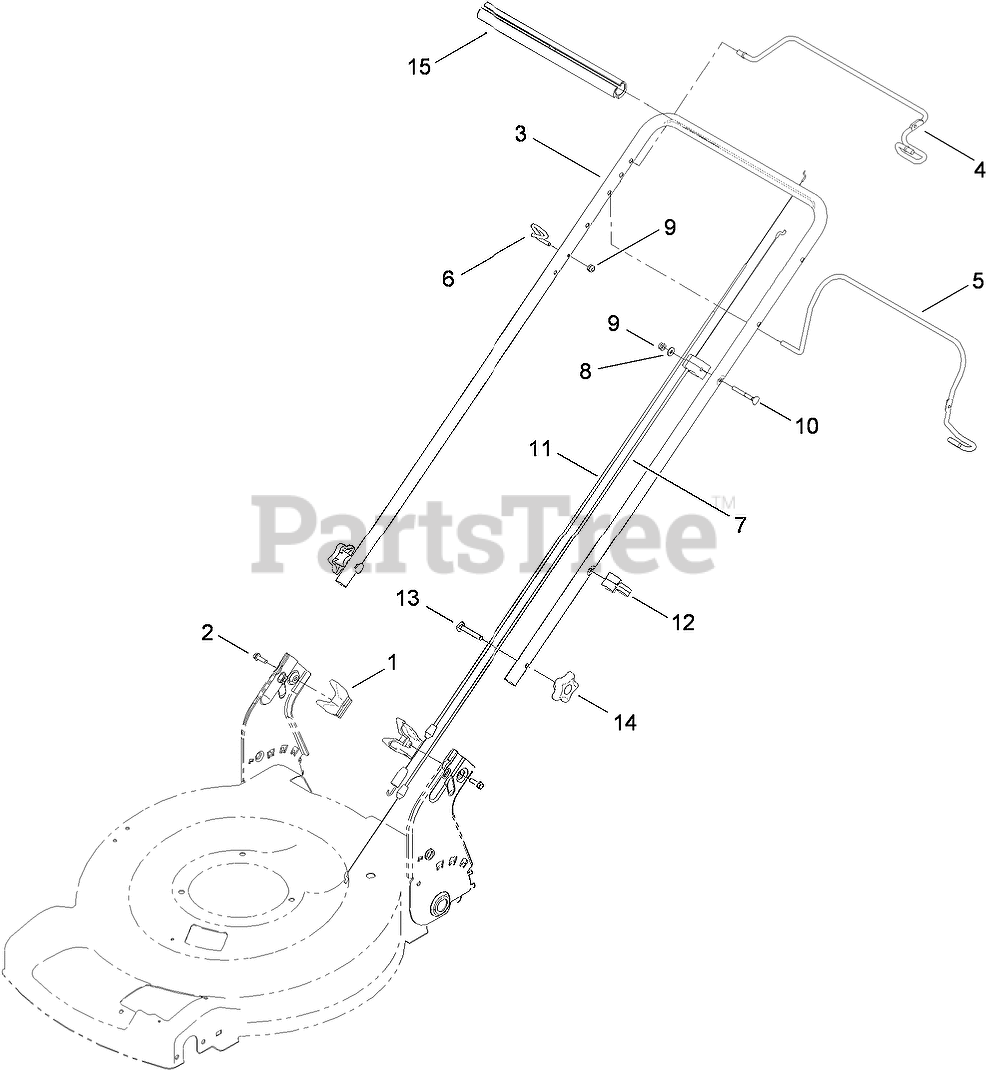

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 115-2866

ANCHOR-BAG

$3.99

$

In Stock, only 2 left!

0

2

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

3

Toro 119-3810-05

HANDLE

$71.99

$

In Stock, only 4 left!

0

4

Toro 119-2378-03

BAIL-TRACTION

$27.99

$

In Stock, only 1 left!

0

5

Toro 117-5965-03

BAIL-BRAKE

$36.99

$

In Stock, only 2 left!

0

6

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

7

Toro 112-8818

CABLE-BRAKE

$33.99

$

Usually ships in 3-6 days

0

8

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

10

Toro 92-2270

SCREW-HANDLE

$8.49

$

In Stock, only 2 left!

0

11

Toro 119-2379

CABLE-TRACTION

$33.99

$

In Stock, Qty 16

0

12

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 12

0

13

Toro 3230-6

Screw-CARR

$1.49

$

In Stock, Qty 11

0

14

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, only 3 left!

0

15

Toro 119-2357

GRIP-HANDLE, COMFORT

$

$

Not available
