2033 - Jonsered Chainsaw (1998-03) CARBURETOR DETAILS Parts Diagram

Chainsaw

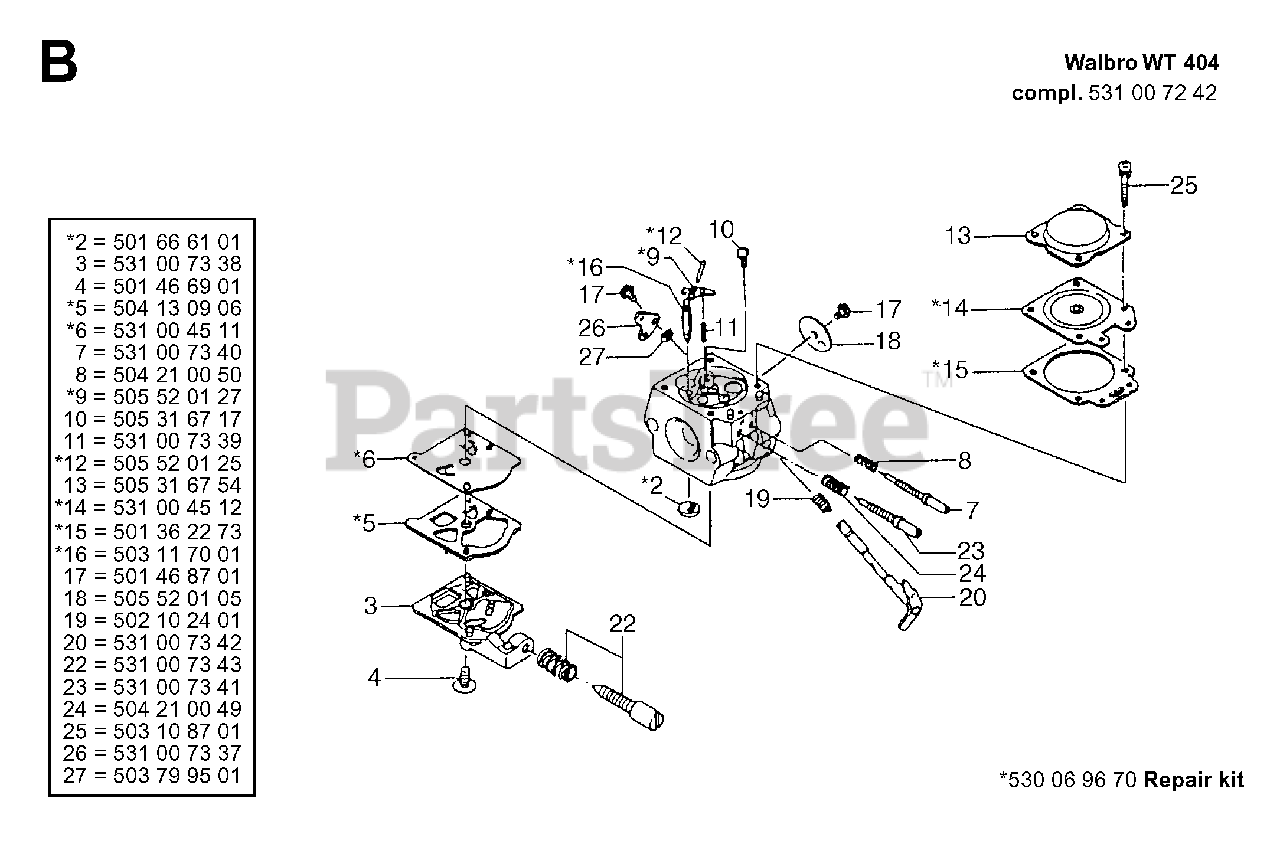

CARBURETOR DETAILS Parts Diagram

  • Title

2

Jonsered 501666101

FUEL INLET SCREEN

Note: 530 06 96 70 REPAIR KIT

$14.99

$

In Stock, Qty 5

0

3

Jonsered 531007338

COVER

$4.99

$

Usually ships in 3-10 days

0

4

Jonsered 501466901

SCREW

$9.49

$

In Stock, Qty 5

0

5

Jonsered 504130906

GASKET

Note: 530 06 96 70 REPAIR KIT

$11.99

$

In Stock, only 3 left!

0

6

Jonsered 531004511

No Description Available

Note: 530 06 96 70 REPAIR KIT

$

$

Not available

7

Jonsered 531007340

NEEDLE HIGH SPEED

$

$

Not available

8

Jonsered 504210050

SPRING/COMPRESSION
(Superseded to 530035293)

$4.99

$

Usually ships in 3-10 days

0

9

Jonsered 505520127

LEVER

Note: 530 06 96 70 REPAIR KIT

$5.99

$

Usually ships in 3-10 days

0

10

Jonsered 505316717

SCREW

$7.99

$

In Stock, Qty 6

0

11

Jonsered 531007339

SPRING

$2.49

$

Usually ships in 3-10 days

0

12

Jonsered 505520125

FULCRUM PIN

Note: 530 06 96 70 REPAIR KIT

$7.99

$

In Stock, only 3 left!

0

13

Jonsered 505316754

DIAPHRAGM COVER

$4.99

$

Usually ships in 3-10 days

0

14

Jonsered 531004512

No Description Available
(Superseded to 503896701)

Note: 530 06 96 70 REPAIR KIT

$51.99

$

In Stock, Qty 10

0

15

Jonsered 501362273

GASKET

Note: 530 06 96 70 REPAIR KIT

$

$

Not available

16

Jonsered 503117001

VALVE/INLET.

Note: 530 06 96 70 REPAIR KIT

$22.99

$

In Stock, Qty 8

0

17

Jonsered 501468701

SCREW.

$7.99

$

In Stock, only 1 left!

0

18

Jonsered 505520105

THROTTLE FLAP

$

$

Not available

19

Jonsered 502102401

SPRING, CARB. 40
(Superseded to 502119601)

$

$

Not available

20

Jonsered 531007342

THROTTLE SHAFT

$

$

Not available

22

Jonsered 531007343

IDLE SCREW

$3.49

$

Usually ships in 3-10 days

0

23

Jonsered 531007341

LOW SPEED NEEDLE

$2.49

$

Usually ships in 3-10 days

0

24

Jonsered 504210049

SPRING, H-NEEDLE

$13.99

$

In Stock, only 4 left!

0

25

Jonsered 503108701

SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, only 4 left!

0

26

Jonsered 531007337

LEVER

$

$

Not available

27

Jonsered 503799501

CLIP

$7.99

$

Usually ships in 3-10 days

0
