20329 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) GOVERNOR ASSEMBLY (ENGINE MODEL NO. 47PM1-1)(SERIAL NO. 2005001 & UP) Parts Diagram

Walk-Behind Mower

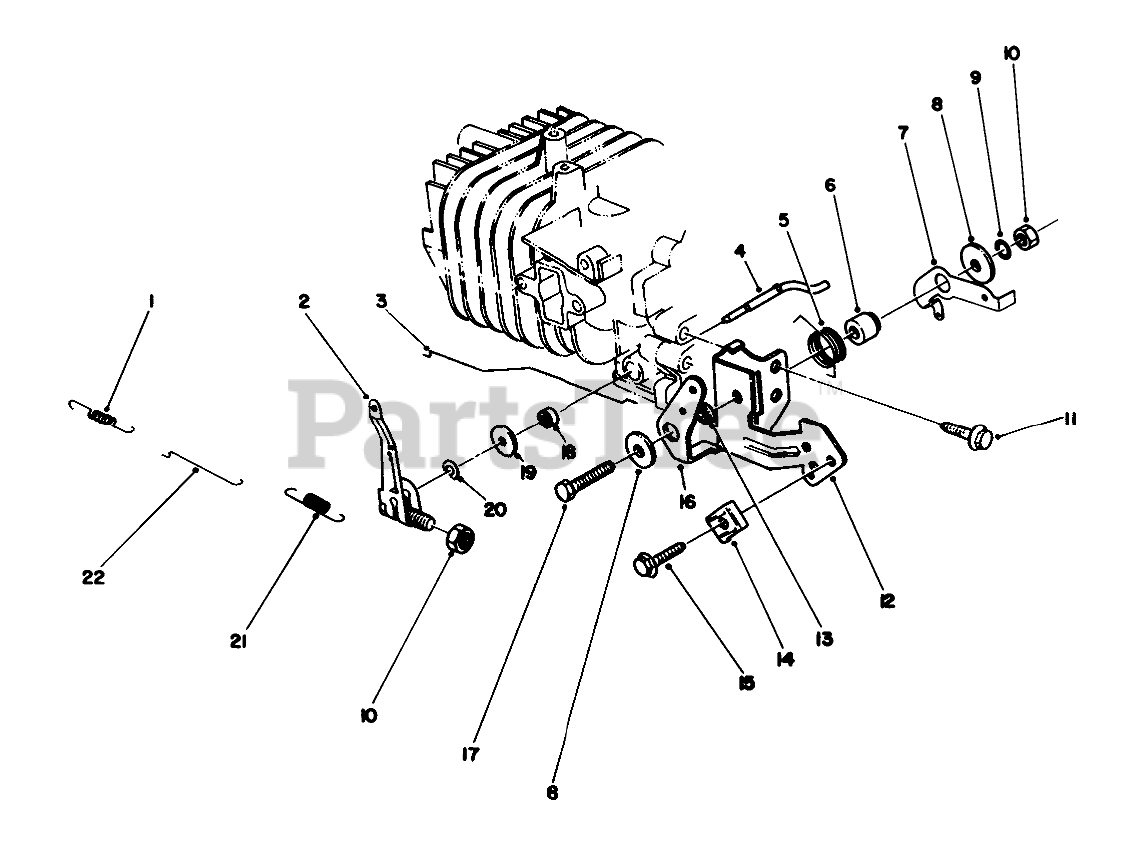

GOVERNOR ASSEMBLY (ENGINE MODEL NO. 47PM1-1)(SERIAL NO. 2005001 & UP) Parts Diagram

  • Title
1

Toro 81-0920

SPRING

$11.99

$

Usually ships in 3-6 days

0

2

Toro 81-5420

ARM-GOVERNOR

$

$

Not available

3

Toro 81-5410

ROD-CHOKE

$

$

Not available

4

Toro 81-2880

SHAFT

$

$

Not available

5

Toro 81-2460

SPRING-CHOKE LEVER

$

$

Not available

6

Toro 81-1770

Gov Lever Spacer
(Superseded to 81-5780)

$

$

Not available

7

Toro 81-2850

LEVER-SPRING, GOVERNOR

$

$

Not available

8

Toro 81-1750

WASHER

$1.99

$

In Stock, Qty 5

0

9

Toro 81-1450

LOCKWASHER

$3.49

$

In Stock, only 2 left!

0

10

$3.49

$

In Stock, only 1 left!

0

11

$

$

Not available

12

Toro 81-2420

BRACKET-THROTTLE, CONTROL

$

$

Not available

13

Toro 81-2470

SPACER-CHOKE LEVER

$2.49

$

In Stock, Qty 5

0

14

Toro 81-2430

CLAMP

$

$

Not available

15

$

$

Not available

16

Toro 81-1710

LEVER-CONTROL, CHOKE

$

$

Not available

17

$4.99

$

In Stock, only 2 left!

0

18

Toro 81-0850

SEAL-OIL

$18.99

$

Usually ships in 3-6 days

0

19

Toro 81-0860

WASHER

$

$

Not available

20

Toro 81-0870

E-RING

$

$

Not available

21

Toro 81-2830

SPRING-GOVERNOR

$

$

Not available

22

Toro 81-0910

ROD-CARBURETOR

$

$

Not available
