20328 B - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) ENGINE BRIGGS & STRATTON MODEL 97772-0112-01 Parts Diagram

Walk-Behind Mower

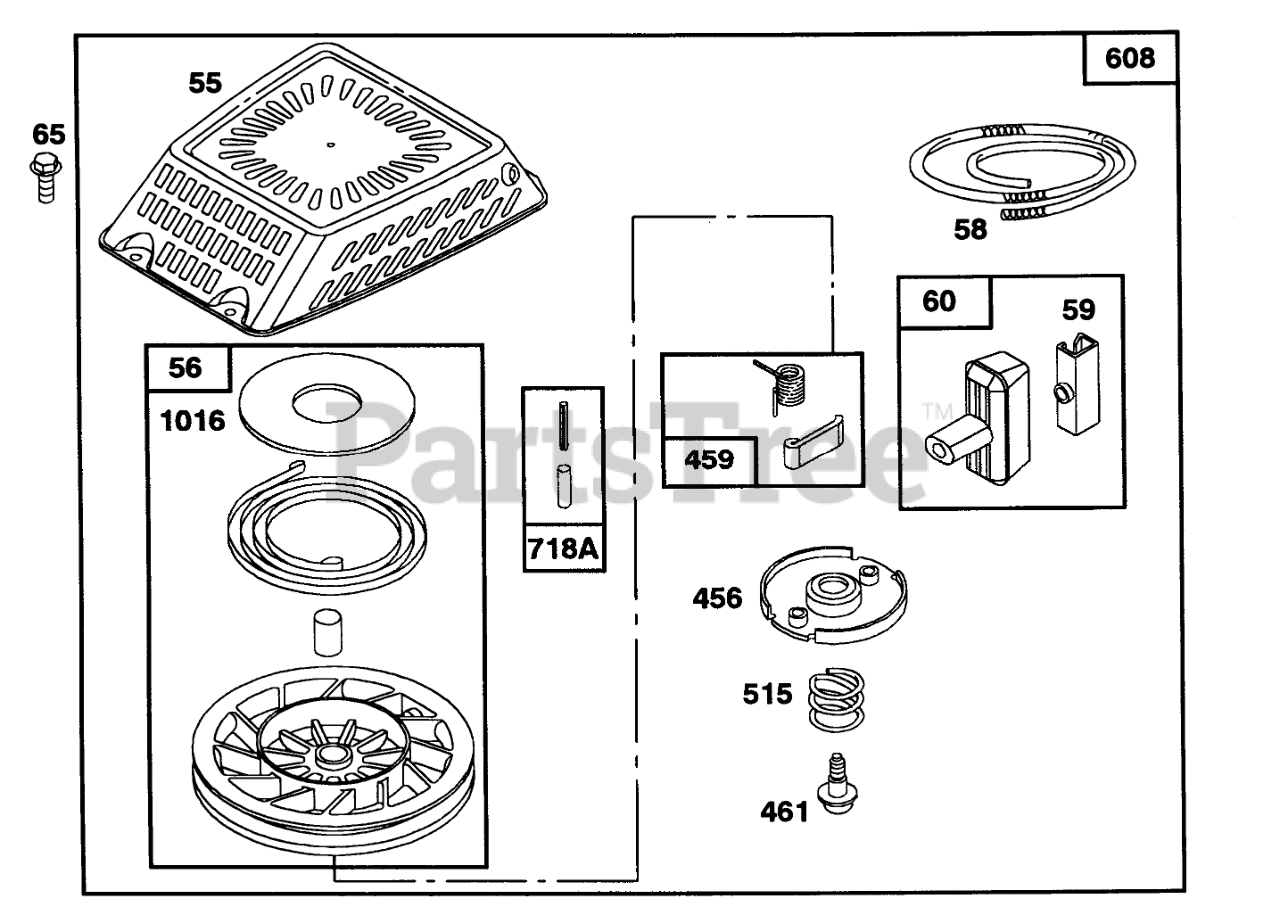

ENGINE BRIGGS & STRATTON MODEL 97772-0112-01 Parts Diagram

  • Title

55

Toro 493942

Housing-Rewind Starter

$

$

Currently unavailable

56

Briggs & Stratton 494545

Pulley-Rewind Starter

$34.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 390620

Rope-Starter (Cut To Suit)
(Superseded to 790966)

$43.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 224467

Insert-Grip
(Superseded to 493926)

$

$

Not available

60

Briggs & Stratton 493926

Grip-Starter Rope

$

$

Not available

65

Briggs & Stratton 94579

Screw-Hex Head
(Superseded to 692779)

$3.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 224204

Retainer-Rewind Starter

$2.49

$

Usually ships in 2-12 days

0

459

Briggs & Stratton 492833

PawI-Ratchet

$4.99

$

Usually ships in 2-12 days

0

461

Briggs & Stratton 94507

Screw-Rewind Starter

$5.49

$

Usually ships in 2-12 days

0

515

Briggs & Stratton 262555

Spring

$3.49

$

Usually ships in 2-12 days

0

608

Toro 494023

Starter Assy-Rewind

$

$

Currently unavailable

718A

Briggs & Stratton 493925

Pin-Spring

$4.49

$

Usually ships in 2-12 days

0

1016

Briggs & Stratton 224278

Spacer

$3.49

$

Usually ships in 2-12 days

0
