20328 B - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) ENGINE BRIGGS & STRATTON MODEL 97772-0112-01 Parts Diagram

Walk-Behind Mower

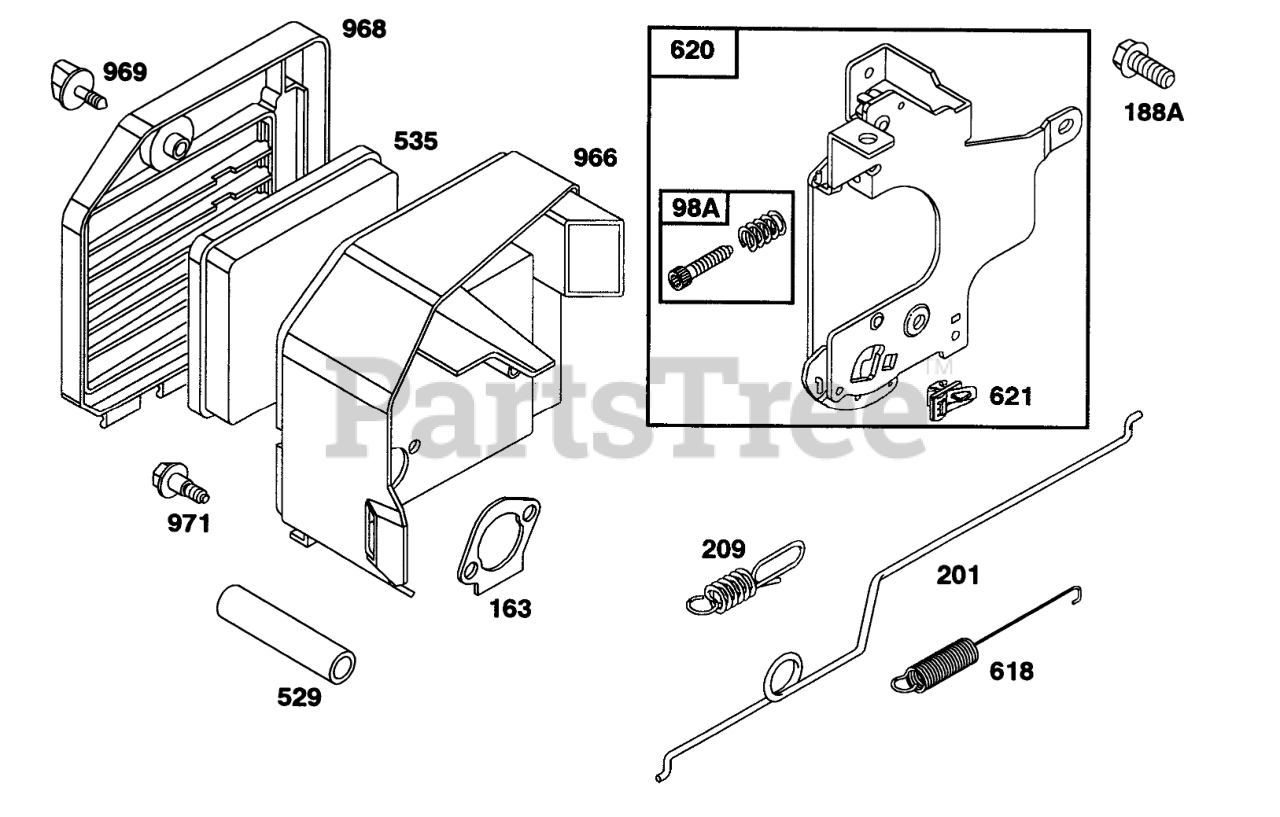

ENGINE BRIGGS & STRATTON MODEL 97772-0112-01 Parts Diagram

  • Title

98A

Briggs & Stratton 493280

Screw Assy.

$8.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 272325

Gasket-Air Cleaner

Note: Included in Gasket Set-Part No. 493783.

$8.99

$

Usually ships in 2-12 days

0

188A

Briggs & Stratton 94644

Screw-Hex.
(Superseded to 690877)

$3.99

$

In Stock, Qty 5

0

201

Briggs & Stratton 262709

Link-Governor

$8.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 262735

Spring-Governor

$6.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 494306

Tube-Breather

$6.49

$

Usually ships in 2-12 days

0

535

Briggs & Stratton 272310

Element-Filter Note: 494245 Element-Paper (Optional)
(Superseded to 691315)

$14.99

$

Usually ships in 2-12 days

0

618

Briggs & Stratton 262717

Spring-Choke

$10.99

$

Usually ships in 2-12 days

0

620

Briggs & Stratton 493539

Bracket-Carburetor

$

$

Not available

621

Briggs & Stratton 396847

Switch
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

966

Briggs & Stratton 493408

Base Air Cleaner

$

$

Not available

968

Briggs & Stratton 281006

Cover-Air Cover

$

$

Not available

969

Briggs & Stratton 493307

Screw-Air Cleaner

$

$

Not available

971

Briggs & Stratton 94577

Screw-Air Cleaner

$3.99

$

Usually ships in 2-12 days

0
