20326 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) RECOIL ASSEMBLY (MODEL NO. 47PM1-1) Parts Diagram

Walk-Behind Mower

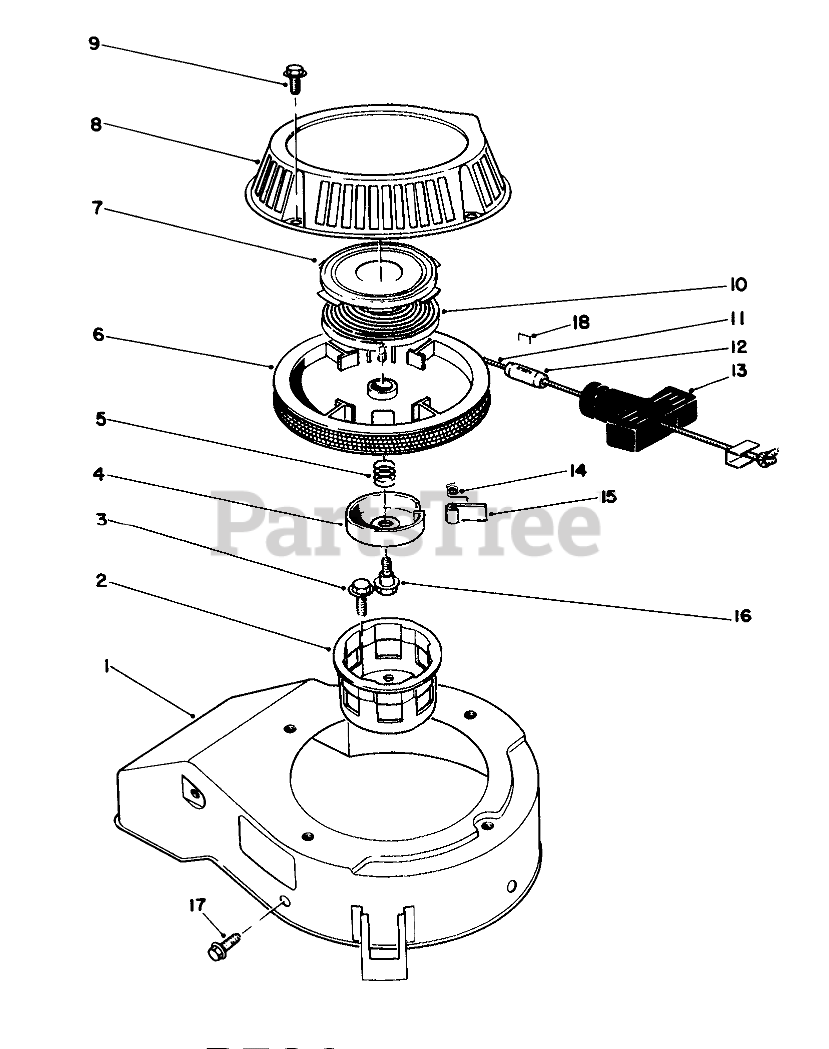

RECOIL ASSEMBLY (MODEL NO. 47PM1-1) Parts Diagram

  • Title
1

Toro 81-2070

COVER

$

$

Not available

2

Toro 81-1290

CUP - STARTER

$25.99

$

Usually ships in 3-6 days

0

3

$9.99

$

Usually ships in 3-6 days

0

4

Toro 81-1250

RETAINER

$24.99

$

In Stock, only 1 left!

0

5

Toro 81-1240

SPRING

$

$

Not available

6

$54.99

$

In Stock, only 2 left!

0

7

Retainer Cup-Recoil Spring

$

$

Not available

8

$

$

Not available

9

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 5

0

10

Spring-Recoil

$

$

Not available

11

Toro 81-1270

ROPE-STARTER
(Superseded to 613773)

$34.99

$

Usually ships in 3-6 days

0

12

$7.49

$

In Stock, only 1 left!

0

13

Toro 81-1630

HANDLE-RECOIL

$21.99

$

Usually ships in 3-6 days

0

14

Toro 81-1220

SPRING

$

$

Not available

15

$

$

Not available

16

$

$

Not available

17

$

$

Not available

18

Staple

Note: Obtain Locally

$

$

Not available

Toro 81-2040

Starter Assembly (Incl. Ref. #4-16)

Note: Not illustrated

$400.99

$

Usually ships in 3-6 days

0

Toro 81-2300

Spring & Retainer (Incl. Ref. #6 & 9)

Note: Not illustrated

$43.99

$

Usually ships in 3-6 days

0
