20326 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

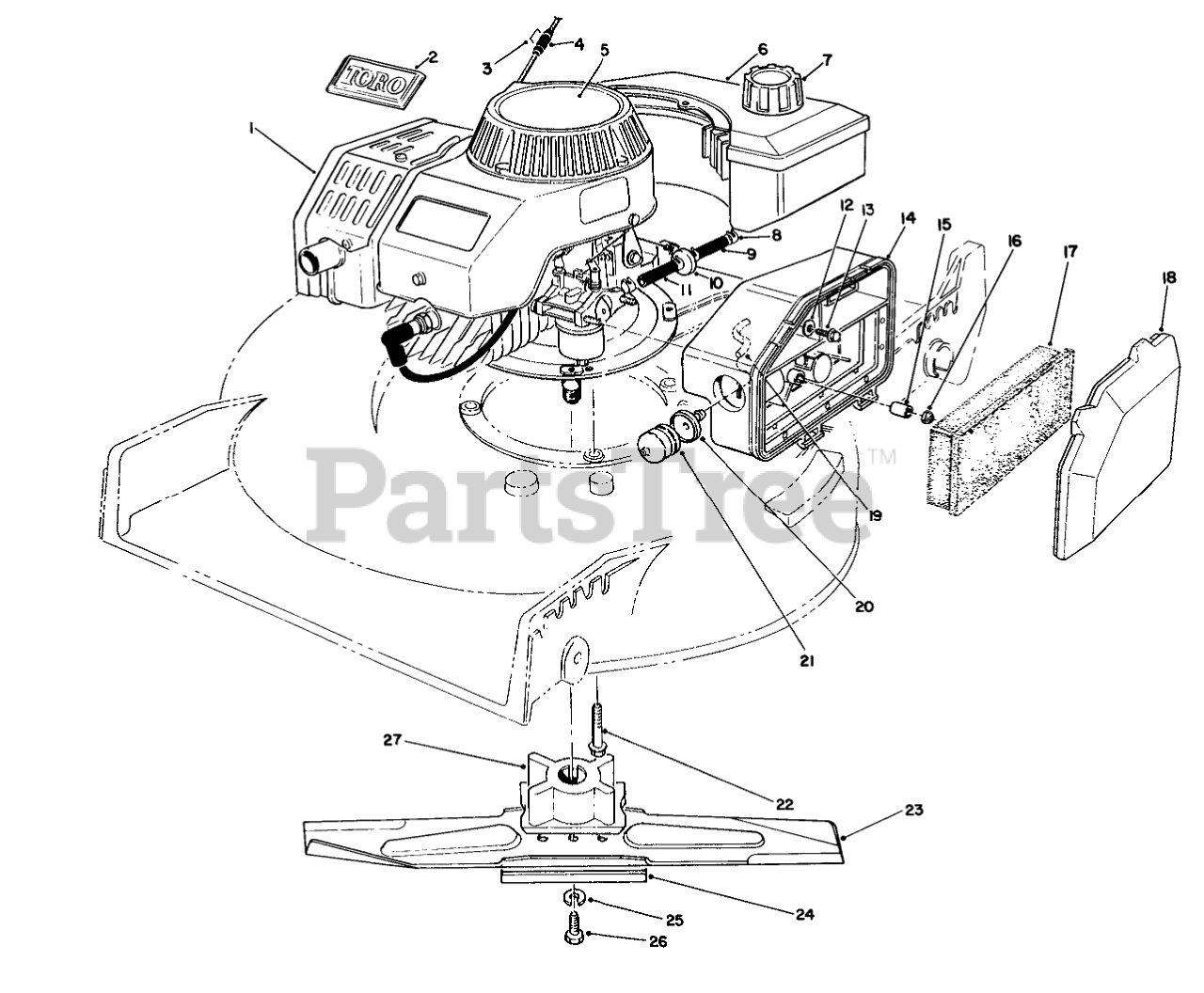

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 51-0413

Engine
(Superseded to 12-8099)

$

$

Not available

2

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$1.99

$

Usually ships in 3-6 days

0

3

Staple

Note: Obtain Locally

$

$

Not available

4

Toro 81-3980

STOP

$7.49

$

In Stock, only 1 left!

0

5

Toro 66-0510

DECAL - 2 CYC RECOIL

$

$

Not available

6

Toro 81-0042

Gas Tank Assembly
(Superseded to 99-5263)

$

$

Not available

7

Toro 55-3575

GAS CAP ASM

$17.99

$

Usually ships in 3-6 days

0

8

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 8

0

9

Toro 51-3215

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

10

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 7

0

11

Toro 51-3216

HOSE-FUEL

$5.49

$

In Stock, only 4 left!

0

12

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 51-2690

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

14

Toro 63-9330

BODY-AIR CLEANER

$

$

Not available

15

Toro 62-3980

SPACER

$2.49

$

Usually ships in 3-6 days

0

16

Toro 50-7180

NUT

$5.49

$

In Stock, only 3 left!

0

17

Toro 63-9380

ELEMENT-AIR CLEANER

$11.99

$

In Stock, only 1 left!

0

18

Toro 63-9340

COVER-AIR CLEANER

$49.99

$

Usually ships in 3-6 days

0

19

Toro 44-3172

HOSE-PRIMER

$5.49

$

In Stock, only 1 left!

0

20

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

21

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

22

Toro 66-9300

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

23

Toro 14-1659

Blade-21" (Incl. Ref. #24)
(Superseded to 91-2256-03)

$31.99

$

In Stock, only 1 left!

0

24

Toro 80-0510

Stiffener
(Superseded to 80-0510-03)

$17.99

$

In Stock, Qty 7

0

25

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

26

Toro 26-0670

SCREW-BLADE

$

$

Not available

27

Toro 62-7540

BLADE RETAINER

$83.99

$

In Stock, only 1 left!

0
