20325 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) ENGINE GTS-150 77-8990 Parts Diagram

Walk-Behind Mower

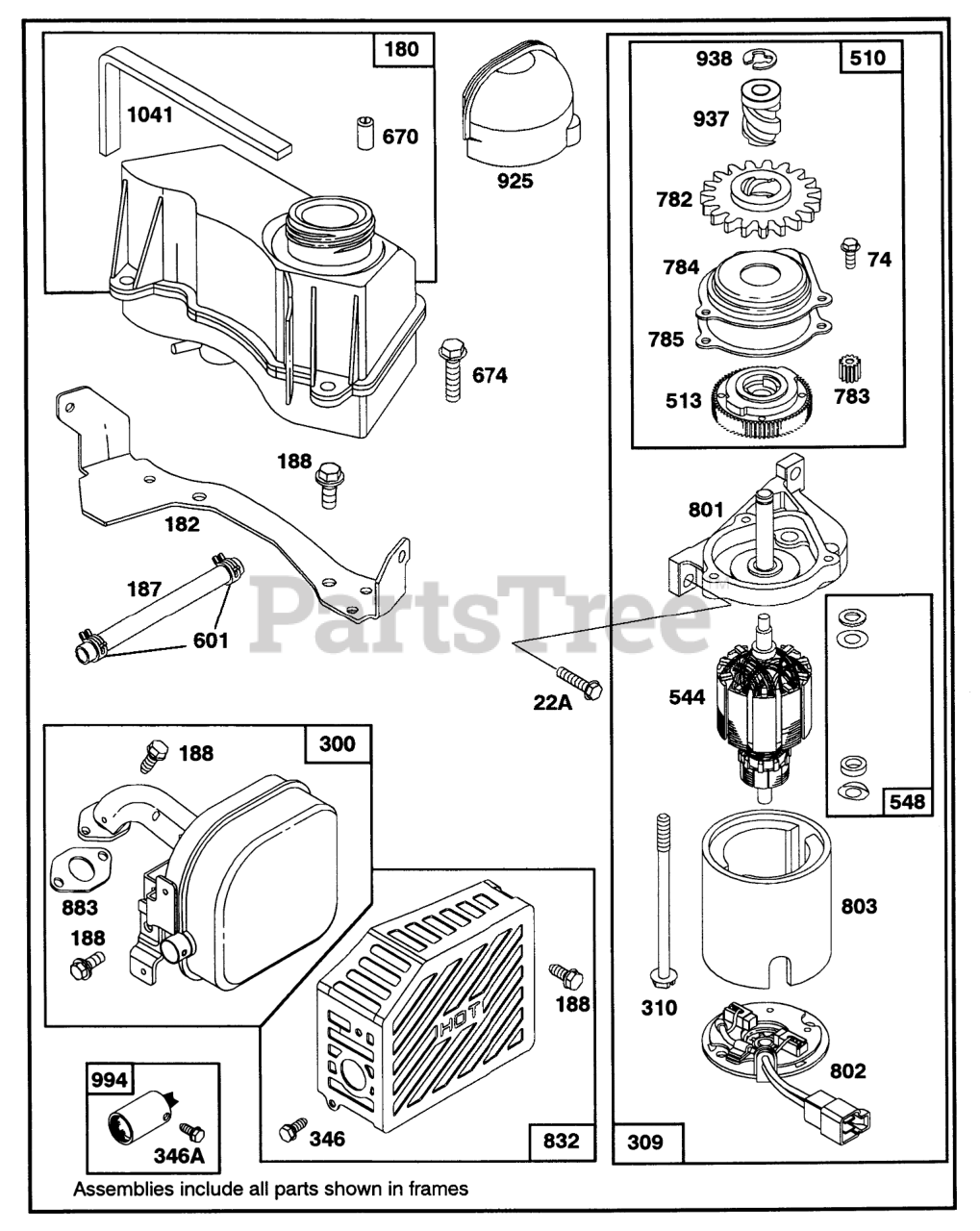

ENGINE GTS-150 77-8990 Parts Diagram

  • Title
22A

Toro 77-8720

SCREW - CARBUERTOR MTG

$

$

Not available

74

Toro 77-8800

SCREW - SEM

$

$

Not available

180

Toro 77-8580

TANK ASSY - FUEL

$181.99

$

Usually ships in 3-6 days

0

182

Toro 77-7170

BRACKET - FUEL TANK

$

$

Not available

187

Toro 77-8620

HOSE - FUEL

$

$

Not available

188

Toro 77-7450

SCREW - SEM

$

$

Not available

300

Toro 77-8640

MUFFLER - EXHAUST

$

$

Not available

309

Toro 77-8670

MOTOR - STARTER

$

$

Not available

310

Toro 77-8710

SCREW - MOTOR

$

$

Not available

346

Toro 77-8650

SCREW - SELF-TAPPING

$

$

Not available

346A

Toro 77-9050

SCREW - ARRESTER MTG.
(Superseded to 94-6783)

$

$

Not available

510

Toro 77-8910

DRIVE SET

$153.99

$

Usually ships in 3-6 days

0

513

Toro 77-8770

CLUTCH - STARTER

$102.99

$

Usually ships in 3-6 days

0

544

Toro 77-8730

Armature Starter
(Superseded to 77-8670)

$

$

Not available

548

Toro 77-8740

WASHER ASSEMBLY

$

$

Not available

601

Toro 77-8630

CLAMP - CL PIPE

$

$

Not available

670

Toro 77-9030

Spacer-Fuel Tank (Incl. 2)

$

$

Not available

674

Toro 77-8600

SCREW - HEX HEAD

$

$

Not available

782

Toro 77-8810

GEAR - STARTER

$24.99

$

Usually ships in 3-6 days

0

783

Toro 77-8760

GEAR - PINION

$

$

Not available

784

Toro 77-8780

COVER - GEAR

$

$

Not available

785

Toro 77-8790

GASKET - COVER

$

$

Not available

801

Toro 77-8680

CAP - DRIVE

$

$

Not available

802

Toro 77-8690

CAP - END

$

$

Not available

803

Toro 77-8700

HOUSING - STARTER

$

$

Not available

832

Toro 77-8660

Guard-Muffler
(Superseded to 77-9290)

$

$

Not available

883

Toro 77-7760

EXHAUST GASKET

Note: Included in Gasket Set

$

$

Not available

925

Toro 77-7200

COVER - STARTER

$12.99

$

Usually ships in 3-6 days

0

937

Toro 77-8820

DRIVE - STARTER

$

$

Not available

938

Toro 77-8830

RETAINER - LOCK

$

$

Not available

994

Toro 77-9040

ARRESTER - SPARK

$

$

Not available

1041

Toro 77-8590

SEAL - FOAM

Note: Included in Gasket Set

$

$

Not available
