20323 - Toro 20" Walk-Behind Mower (SN: 312000001 - 312999999) (2012) ENGINE ASSEMBLY NO. 119-1989 Parts Diagram

20" Walk-Behind Mower

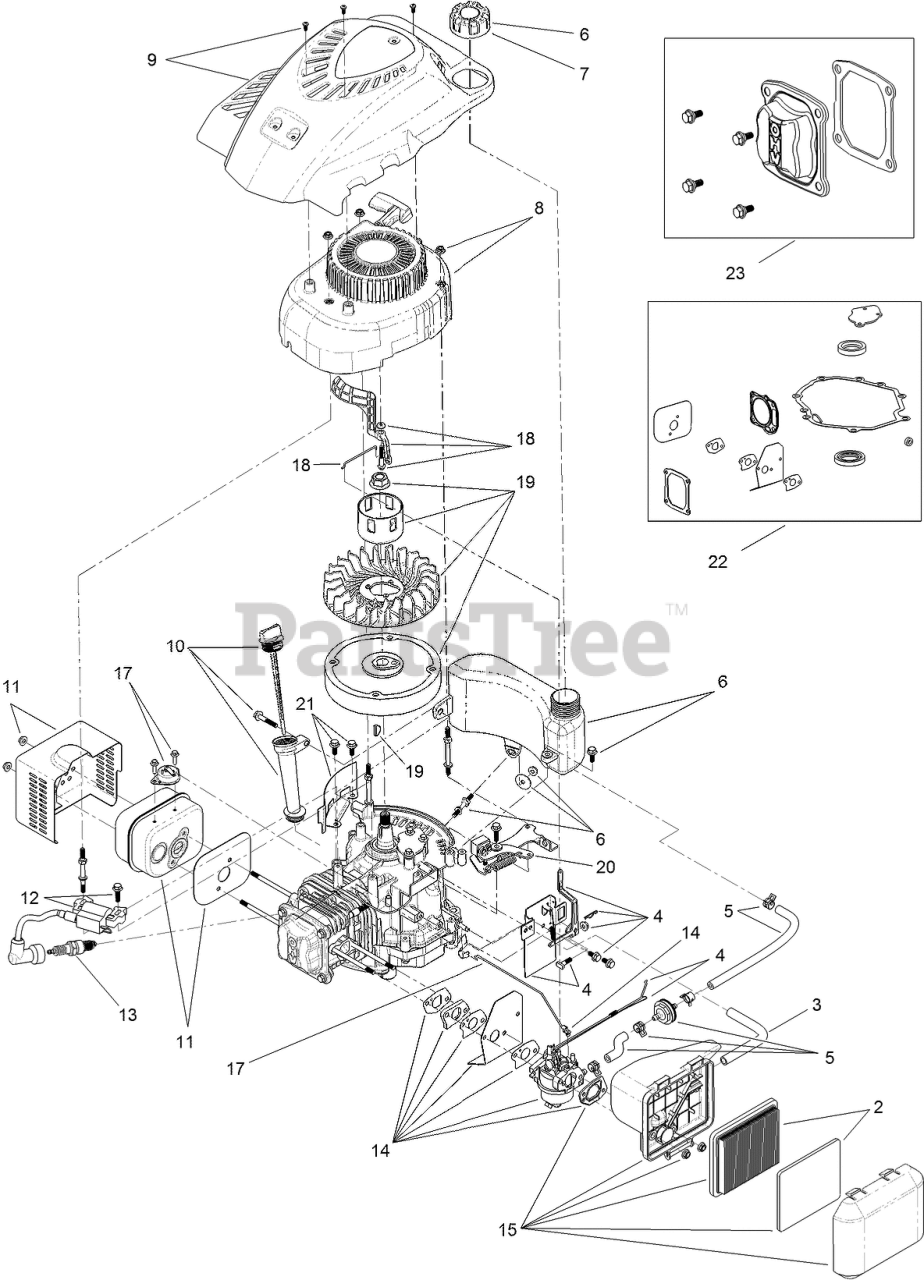

ENGINE ASSEMBLY NO. 119-1989 Parts Diagram

  • Title

2

Toro 119-1909

AIR FILTER AND PREFILTER KIT

$19.99

$

In Stock, Qty 20+

0

3

Toro 119-1902

TUBE-BREATHER

$4.49

$

Usually ships in 3-6 days

0

4

Toro 119-1968

GOVERNOR ARM KIT

$27.99

$

In Stock, only 1 left!

0

5

Toro 120-4400

FUEL LINE KIT
(Superseded to 121-4198)

$14.99

$

In Stock, only 3 left!

0

6

Toro 119-1915

FUEL TANK KIT (CAP AND HARDWARE)

$95.99

$

Usually ships in 3-6 days

0

7

Toro 119-1914

CAP-FUEL
(Superseded to 121-4253)

$21.99

$

In Stock, only 4 left!

0

8

Toro 119-1904

SHROUD AND RECOIL ASM

$68.99

$

In Stock, only 1 left!

0

9

Toro 119-1990

Shroud ASM

$75.99

$

Usually ships in 3-6 days

0

10

Toro 119-1903

DIPSTICK AND FILL TUBE KIT
(Superseded to 121-4279)

$18.99

$

Usually ships in 3-6 days

0

11

Toro 119-1969

MUFFLER AND SHIELD KIT
(Superseded to 121-4277)

$82.99

$

Usually ships in 3-6 days

0

12

Toro 119-1908

IGNITION AND HARDWARE KIT

$60.99

$

Usually ships in 3-6 days

0

13

Toro 119-1901

PLUG-SPARK
(Superseded to 81-3250)

$3.99

$

In Stock, Qty 20+

0

14

Toro 120-4404

CARBURETOR COMPLETE KIT

$68.99

$

Usually ships in 3-6 days

0

14

Toro 120-4405

CARBURETOR REPAIR KIT
(Superseded to 127-9146)

$25.99

$

In Stock, only 2 left!

0

15

Toro 121-0374

AIR CLEANER ASM

$50.99

$

In Stock, only 2 left!

0

17

Toro 119-1999

THERMAL CHOKE CONTROL KIT

$35.99

$

In Stock, only 4 left!

0

18

Toro 119-1966

AIR VANE CHOKE KIT

$14.99

$

In Stock, only 1 left!

0

19

Toro 119-1970

FLYWHEEL AND FAN KIT

$101.99

$

Usually ships in 3-6 days

0

20

Toro 119-1991

BRAKE ASM RECOIL KIT

$43.99

$

Usually ships in 3-6 days

0

21

Toro 119-1994

FLYWHEEL SHIELD KIT

$12.99

$

Usually ships in 3-6 days

0

22

Toro 121-0425

SEAL AND GASKET KIT

$45.99

$

Usually ships in 3-6 days

0

23

Toro 121-0492

VALVE COVER KIT

$23.99

$

In Stock, only 1 left!

0
