20323 - Toro 20" Walk-Behind Mower (SN: 310000001 - 310999999) (2010) HOUSING AND REAR DOOR ASSEMBLY Parts Diagram

20" Walk-Behind Mower

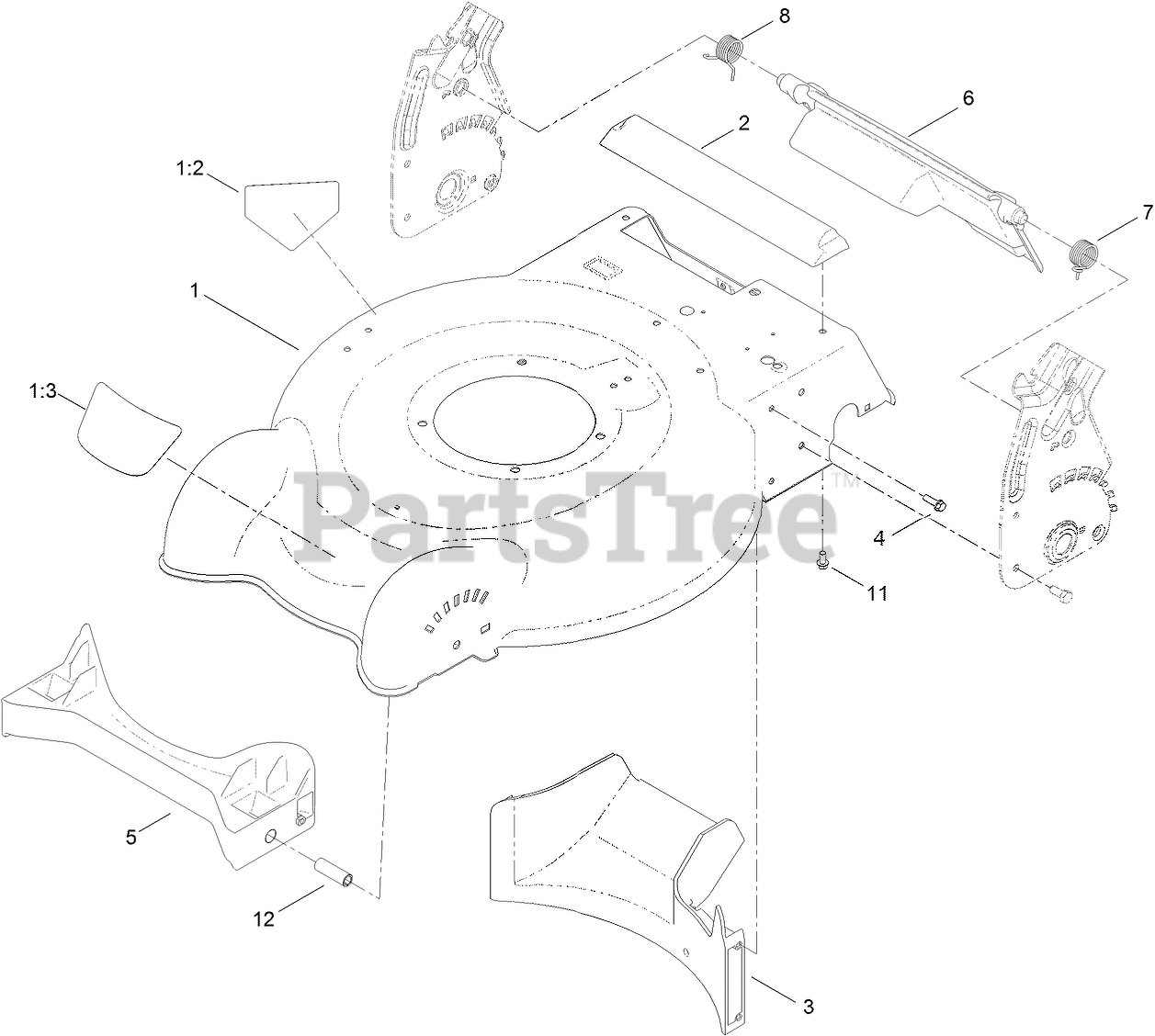

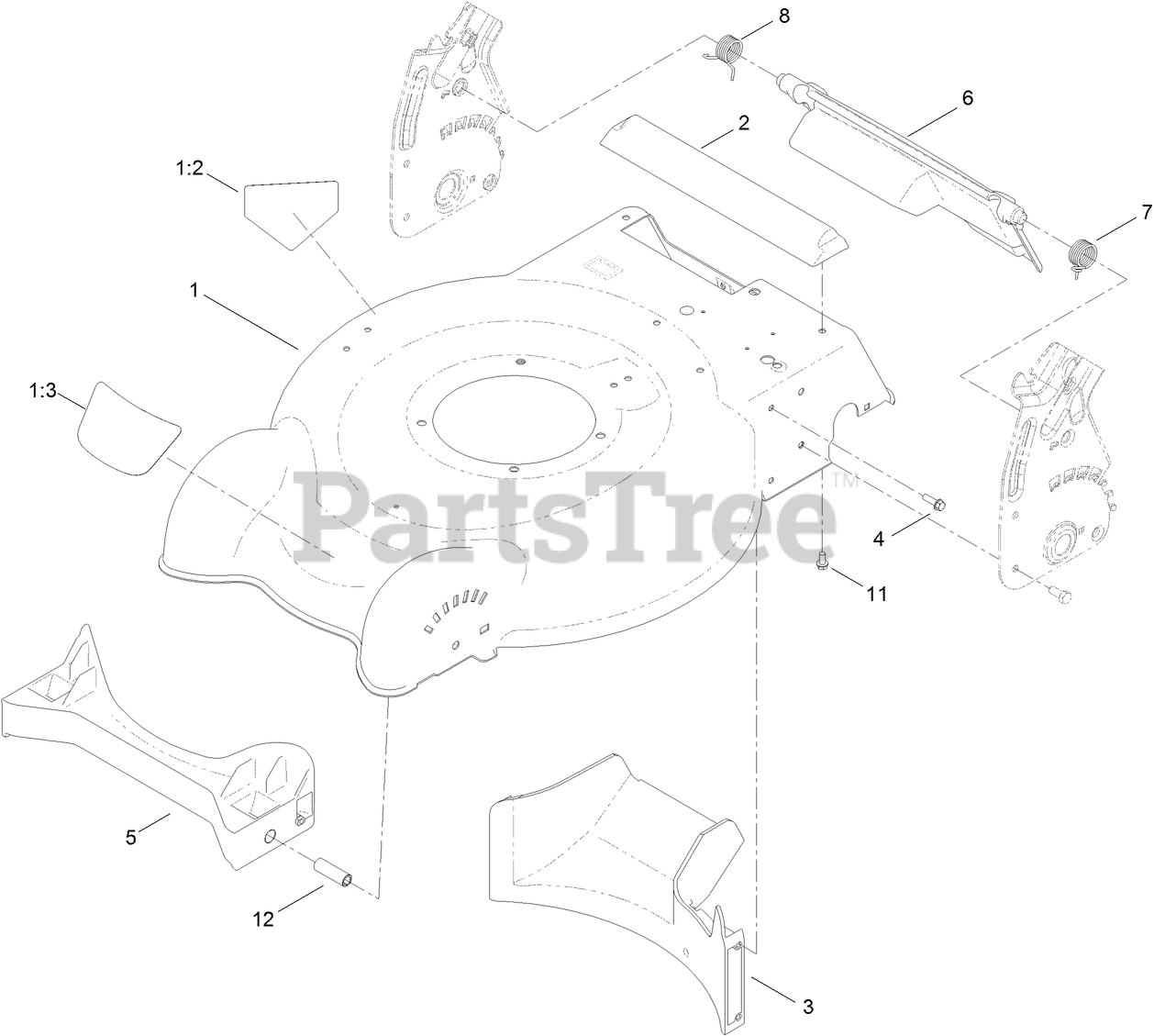

HOUSING AND REAR DOOR ASSEMBLY Parts Diagram

  • Title
1

Toro 120-9482

HOUSING ASM

$250.99

$

Usually ships in 3-6 days

0

1:2

Toro 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 11

0

1:3

Toro 119-7008

Decal-Deck

$9.49

$

Usually ships in 3-6 days

0

2

Toro 112-8845

CHUTE-REAR

$12.99

$

Usually ships in 3-6 days

0

3

Toro 112-8814

BAFFLE-REAR

$33.99

$

Usually ships in 3-6 days

0

4

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

5

Toro 115-1471

BAFFLE-FRONT

$

$

Not available

6

Toro 119-7029

Rear Deflector ASM

$22.99

$

In Stock, only 1 left!

0

7

Toro 119-7015

SPRING-TORSION, LH

$3.99

$

In Stock, only 1 left!

0

8

Toro 119-7016

SPRING-TORSION, RH

$3.99

$

Usually ships in 3-6 days

0

11

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

12

Toro 117-5992

SPACER-BAFFLE, FRONT

$2.99

$

Usually ships in 3-6 days

0
