20320 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) TRACTION CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

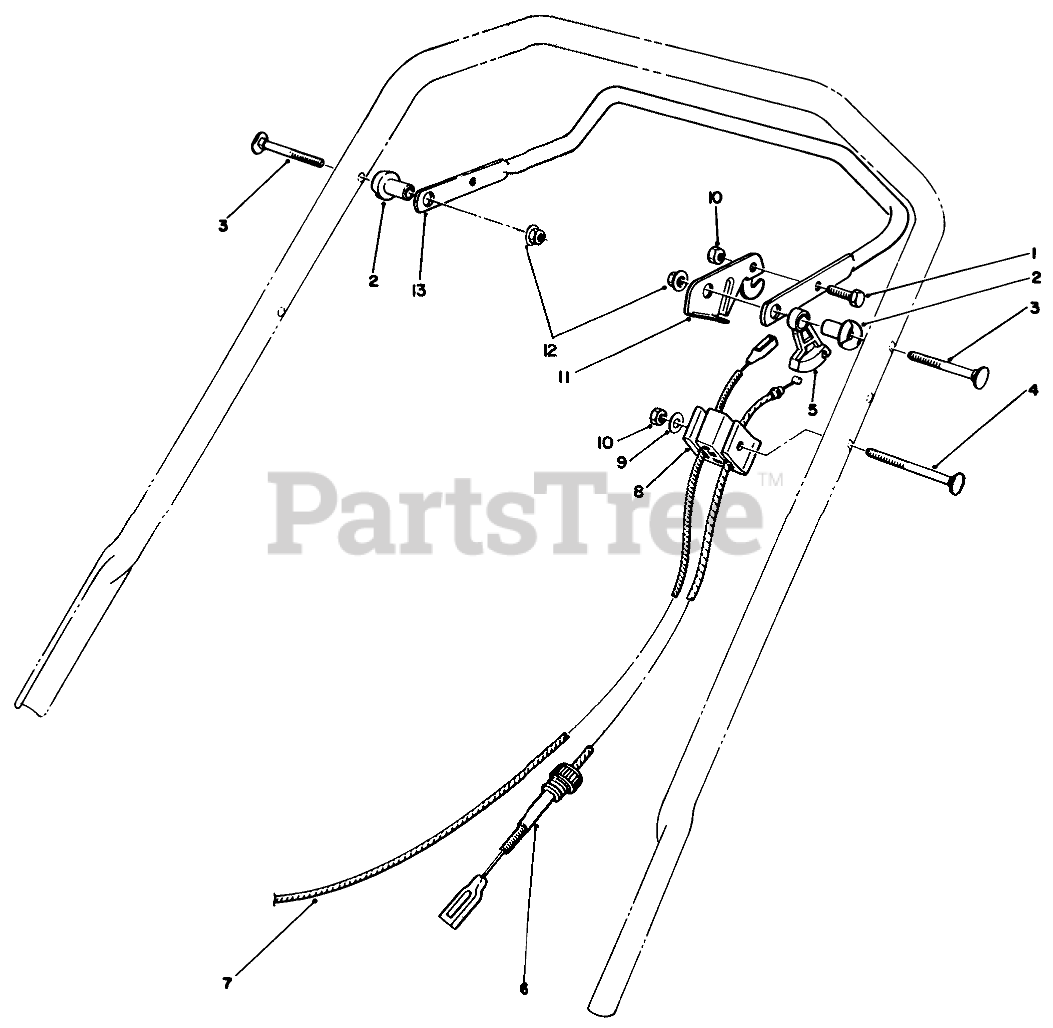

TRACTION CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

3

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 7

0

4

Toro 46-6434

HANDLE SCREW

$

$

Not available

5

Toro 46-5520

LEVER-TRACTION

$

$

Not available

6

Toro 46-5481

CABLE-TRACTION

$65.99

$

In Stock, only 1 left!

0

7

Toro 56-6090

BRAKE CABLE

$78.99

$

In Stock, only 1 left!

0

8

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

9

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

0

12

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

13

Toro 52-7430

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available
